Service Data

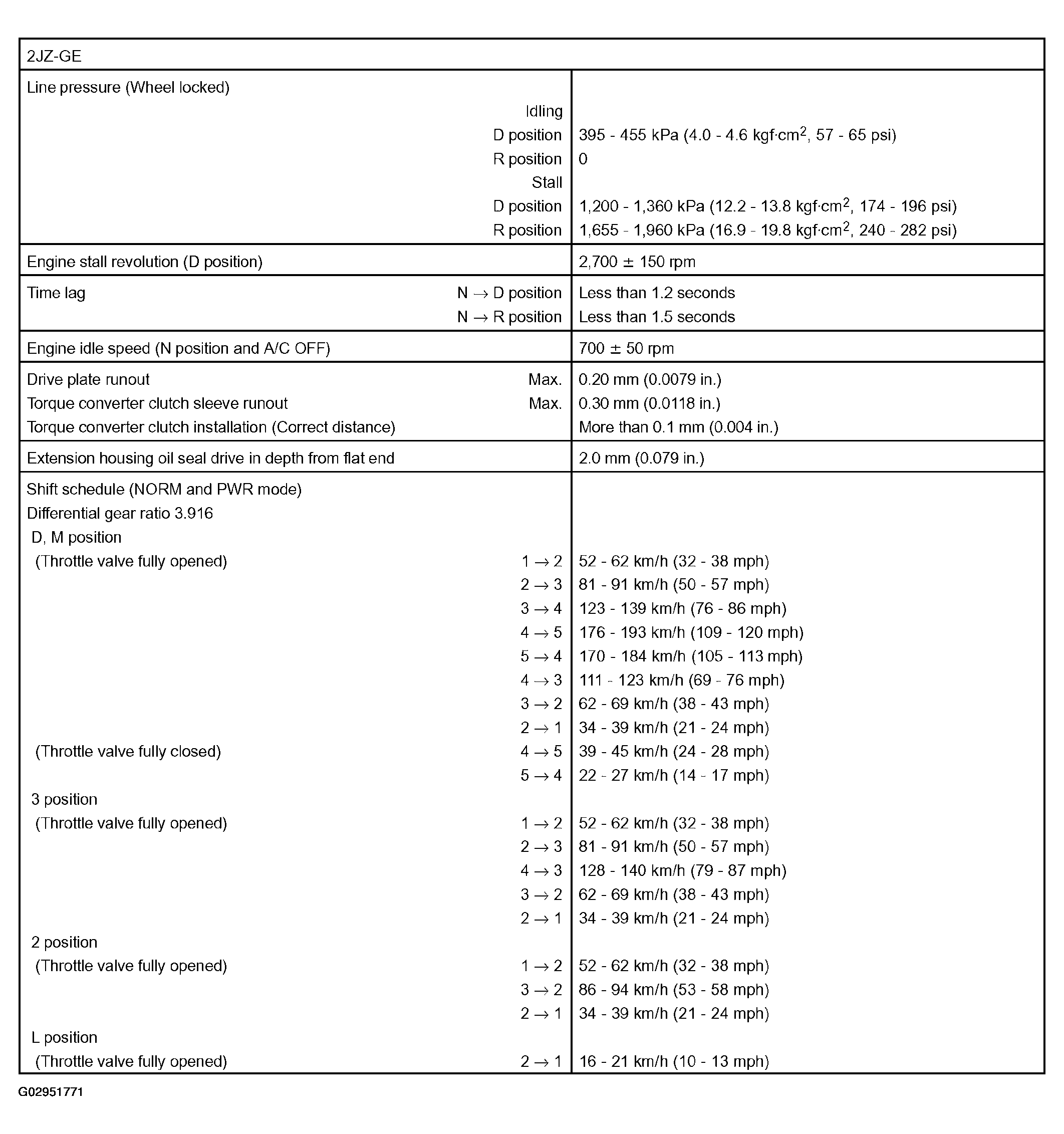

Fig 1: Automatic Transmission Service Specification Chart (1 Of 3)
G02951771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

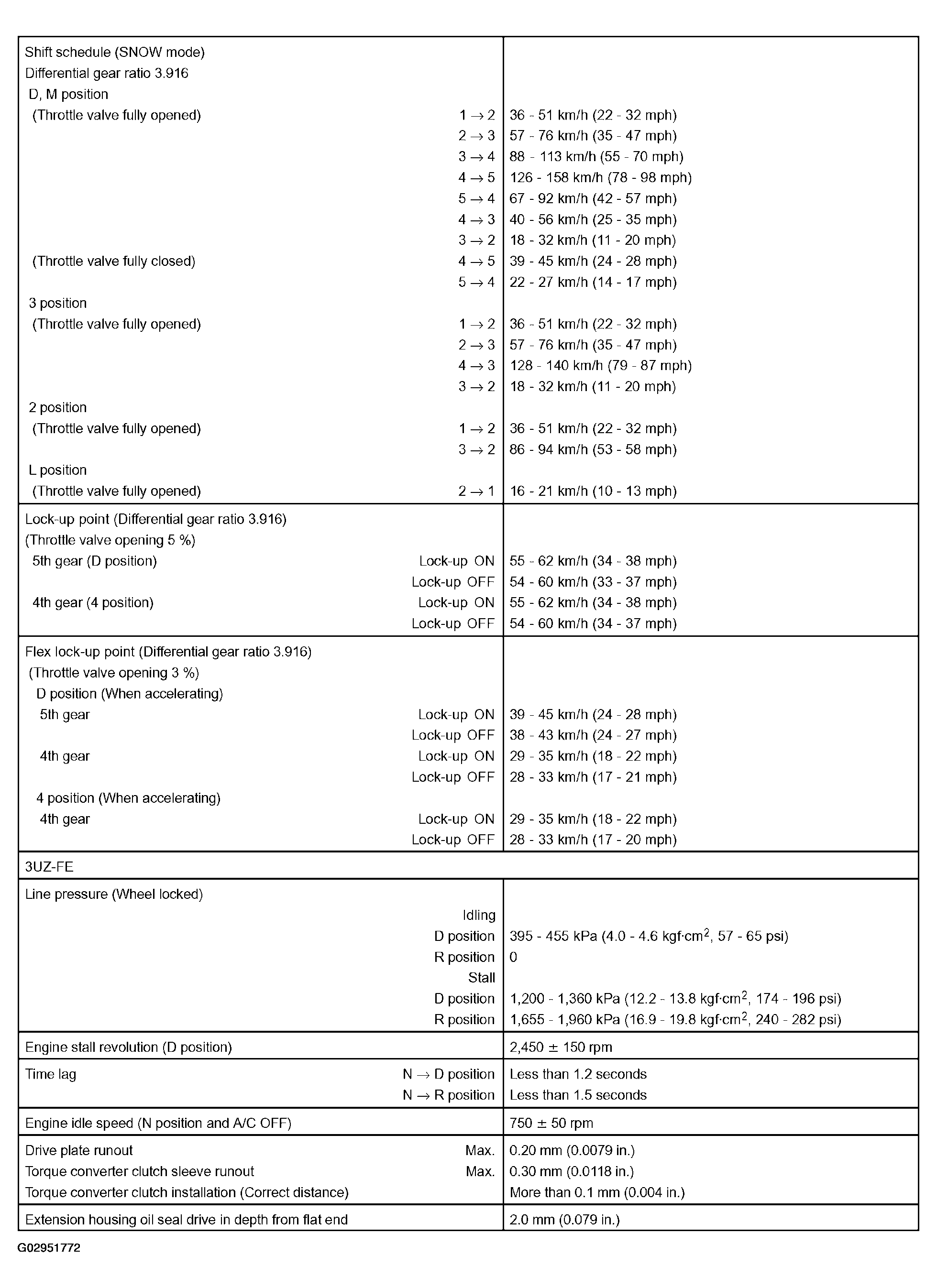

Fig 2: Automatic Transmission Service Specification Chart (2 Of 3)
G02951772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

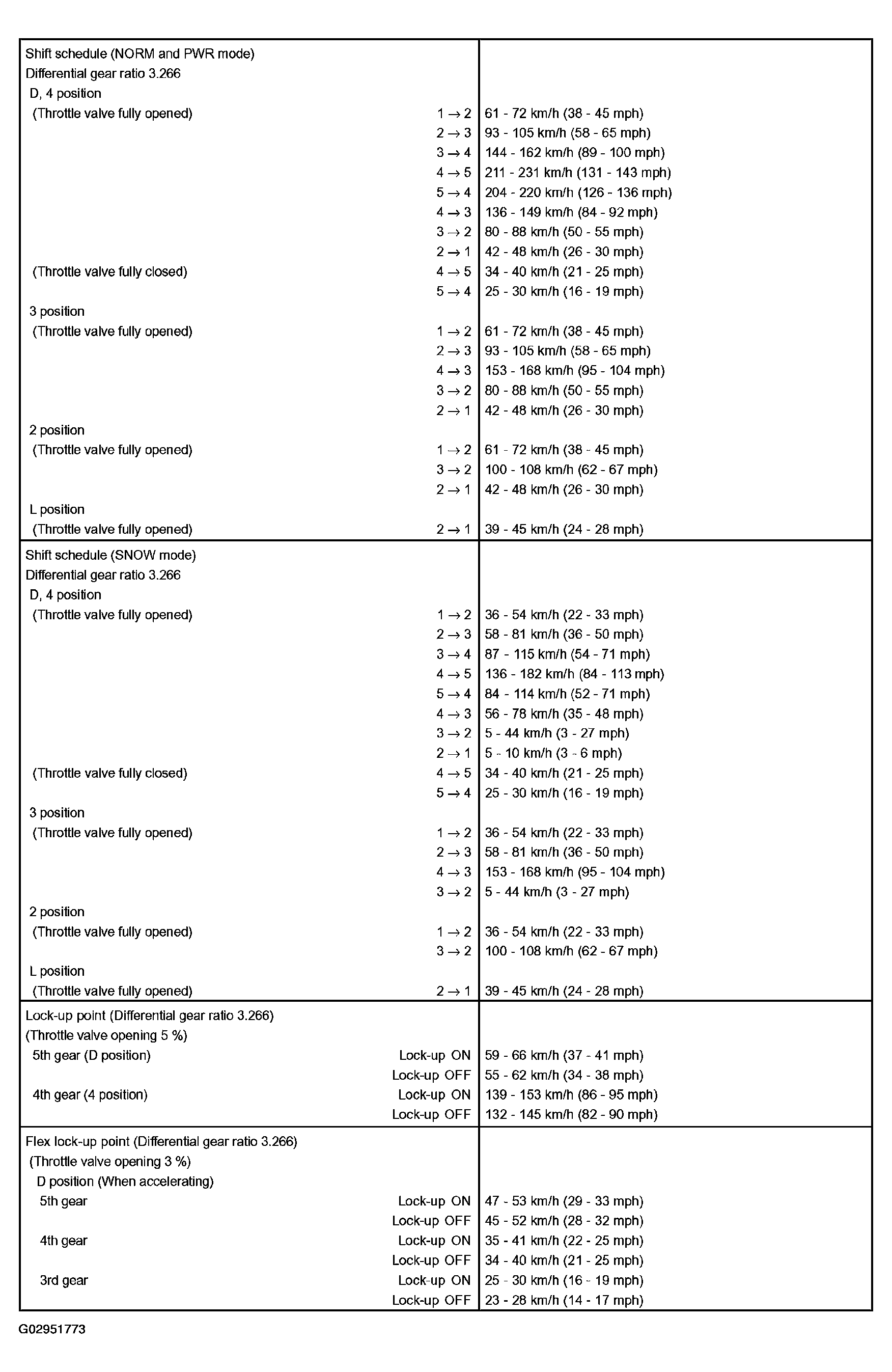

Fig 3: Automatic Transmission Service Specification Chart (3 Of 3)
G02951773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
