Quarter Window ASSY LH
>>
Components
Quarter Window ASSY LH: Components

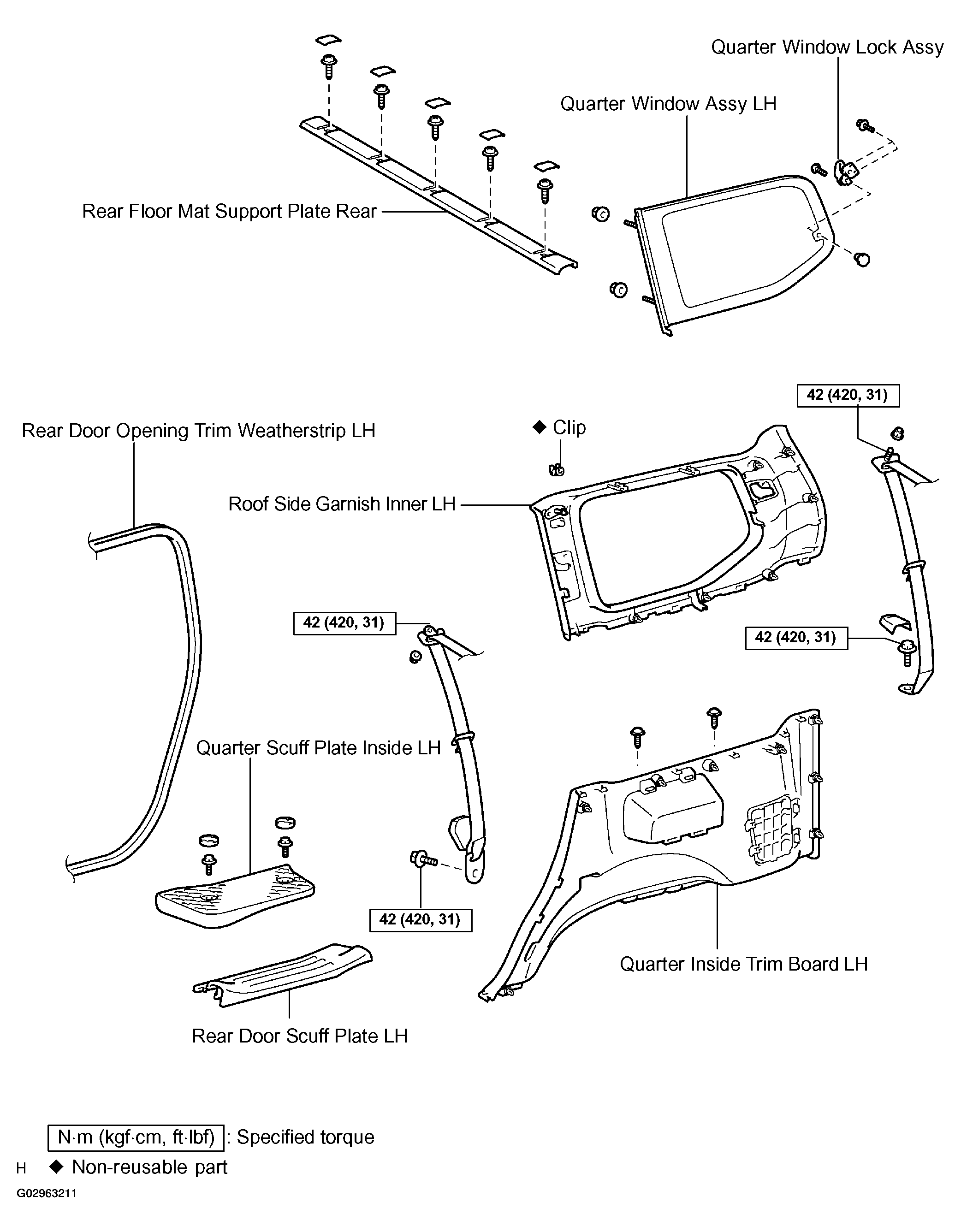

Fig 1: Exploded View Of Quarter Window Assy LH Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
