Supplemental Restraint System: Preparation

SST

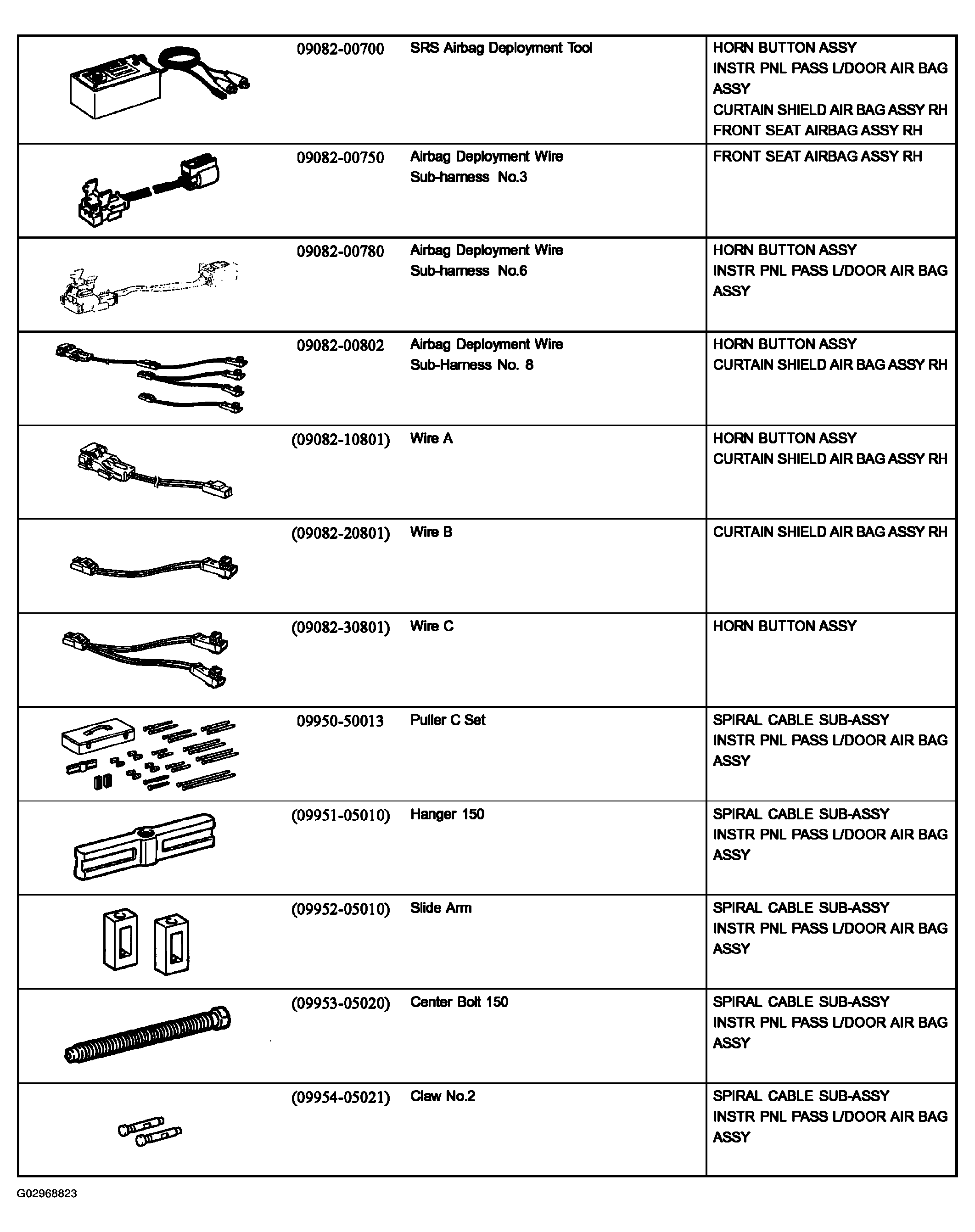

Fig 1: Service Special Tool Table - Supplemental Restraint System

G02968823

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

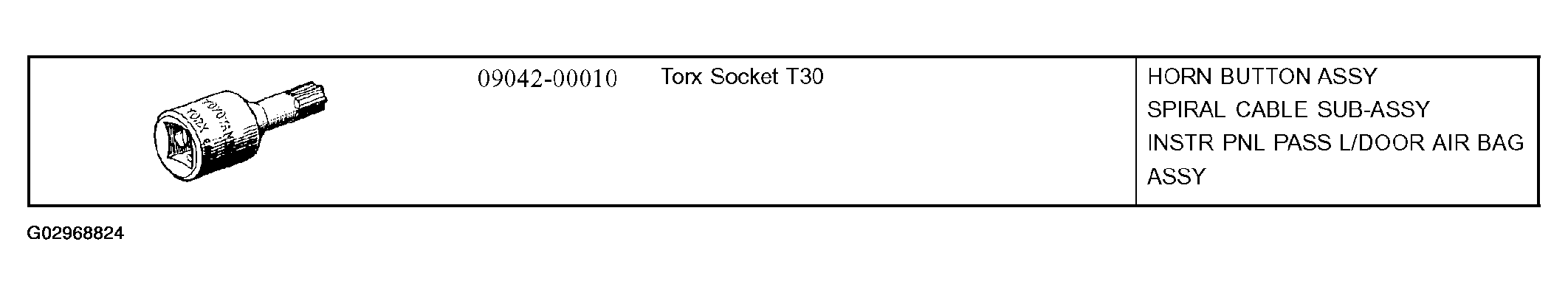

Fig 2: Recommended Tools Table - Supplemental Restraint System

G02968824

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torx is a registered trademark of Textron Inc.

Equipment

SUPPLEMENTAL RESTRAINT SYSTEM EQUIPMENT SPECIFICATION

Torque wrench
Bolt	Airbag disposal
Length: 35.0 mm (1.378 in.)	Airbag disposal
Pitch: 1.0 mm (0.039 in.)	Airbag disposal
Diameter: 6.0 mm (0.236 in.)	Airbag disposal
Tire	Airbag disposal
Width: 185 mm (7.28 in.)	Airbag disposal
Inner diameter: 360 mm (14.17 in.)	Airbag disposal
Tire with disc wheel	Airbag disposal
Width: 185 mm (7.28 in.)	Airbag disposal
Inner diameter: 360 mm (14.17 in.)	Airbag disposal
Plastic bag	Airbag disposal
