Center Diff. Lock System: Location

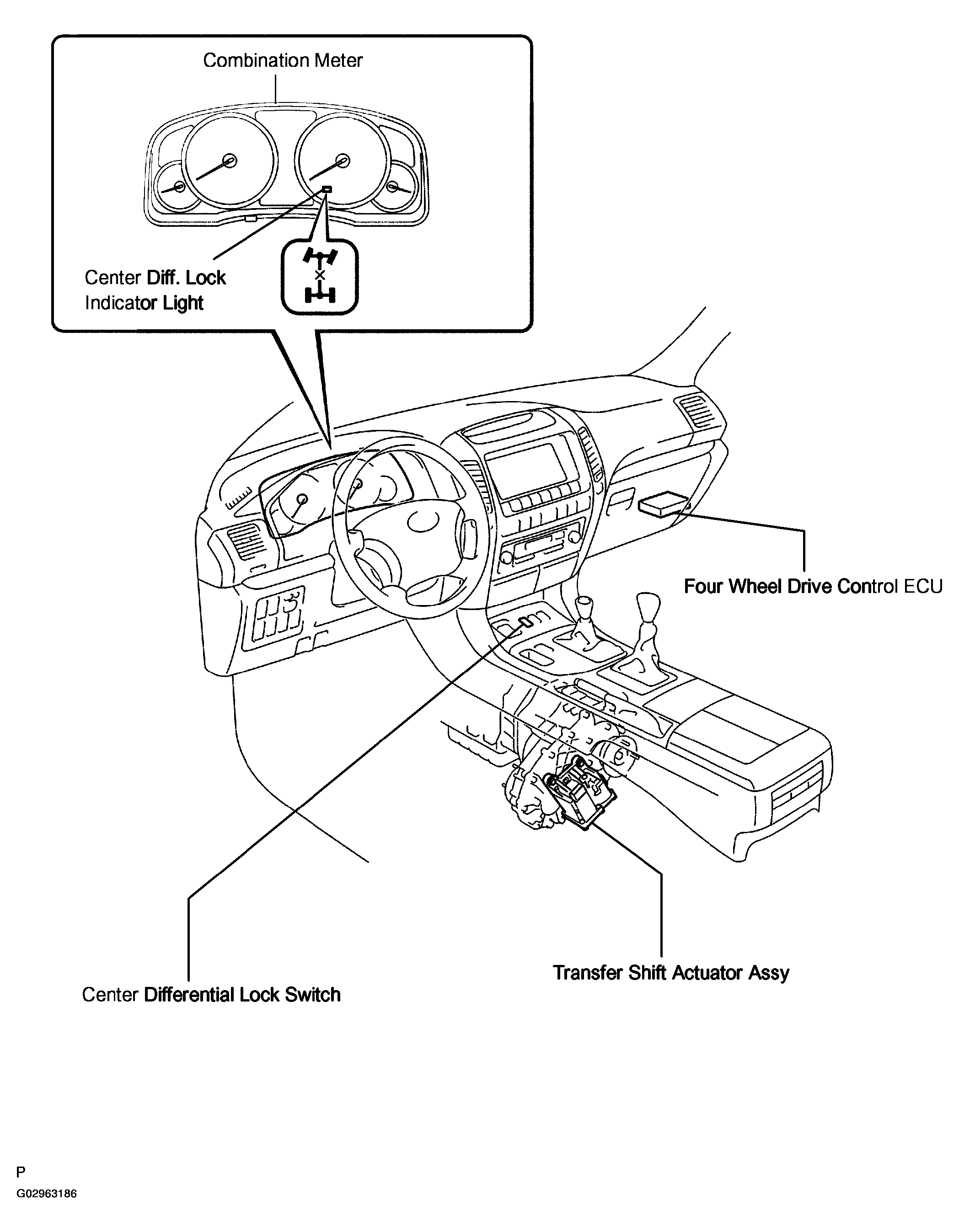

Fig 1: Identifying Center Diff. Lock System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
