Home >> Lexus >> 2005 >> IS 300 Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Back Window Glass >> Components

Back Window Glass: Components

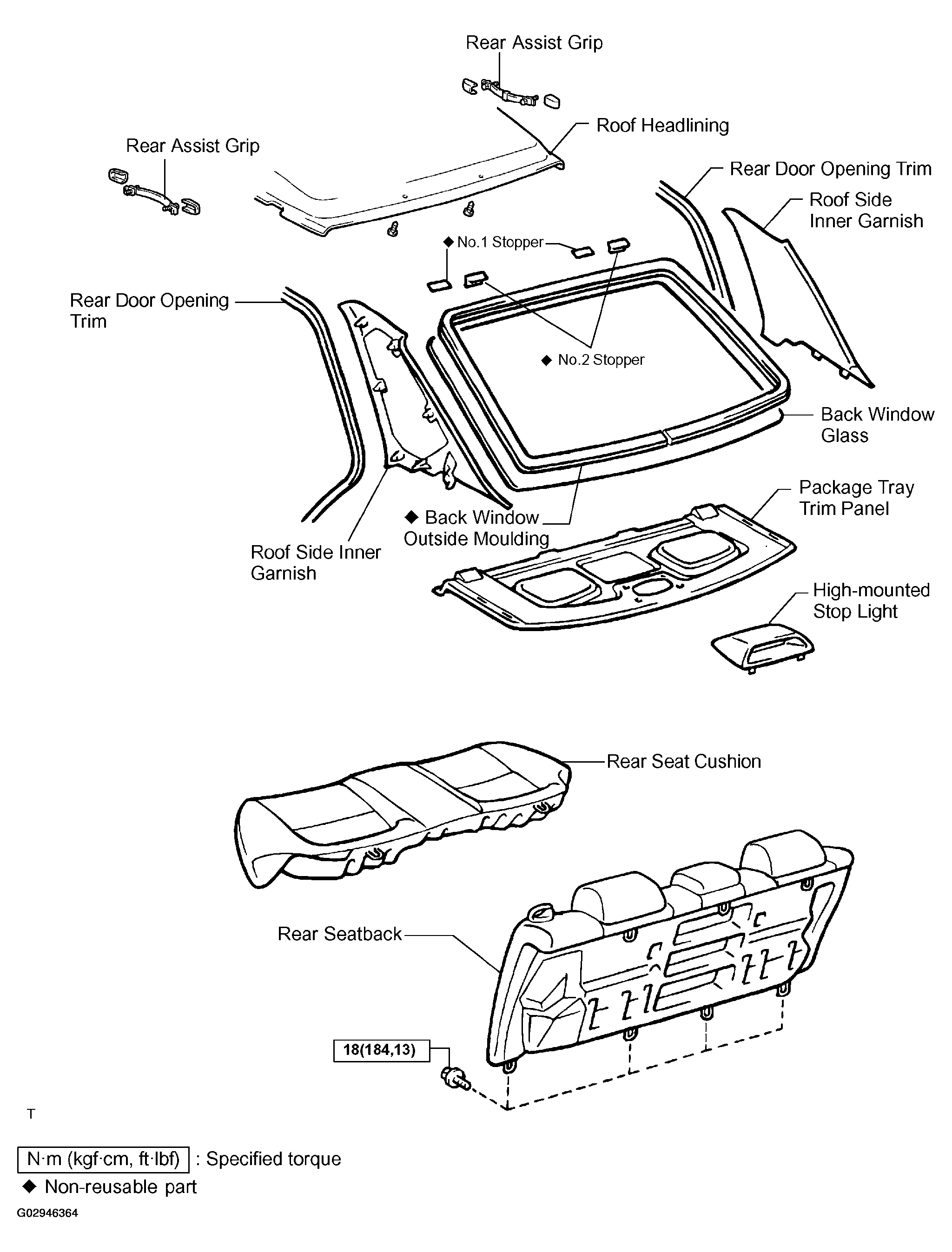

Fig 1: Identifying Back Window Glass Components & Replacements

G02946364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
