Fog Light System

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.

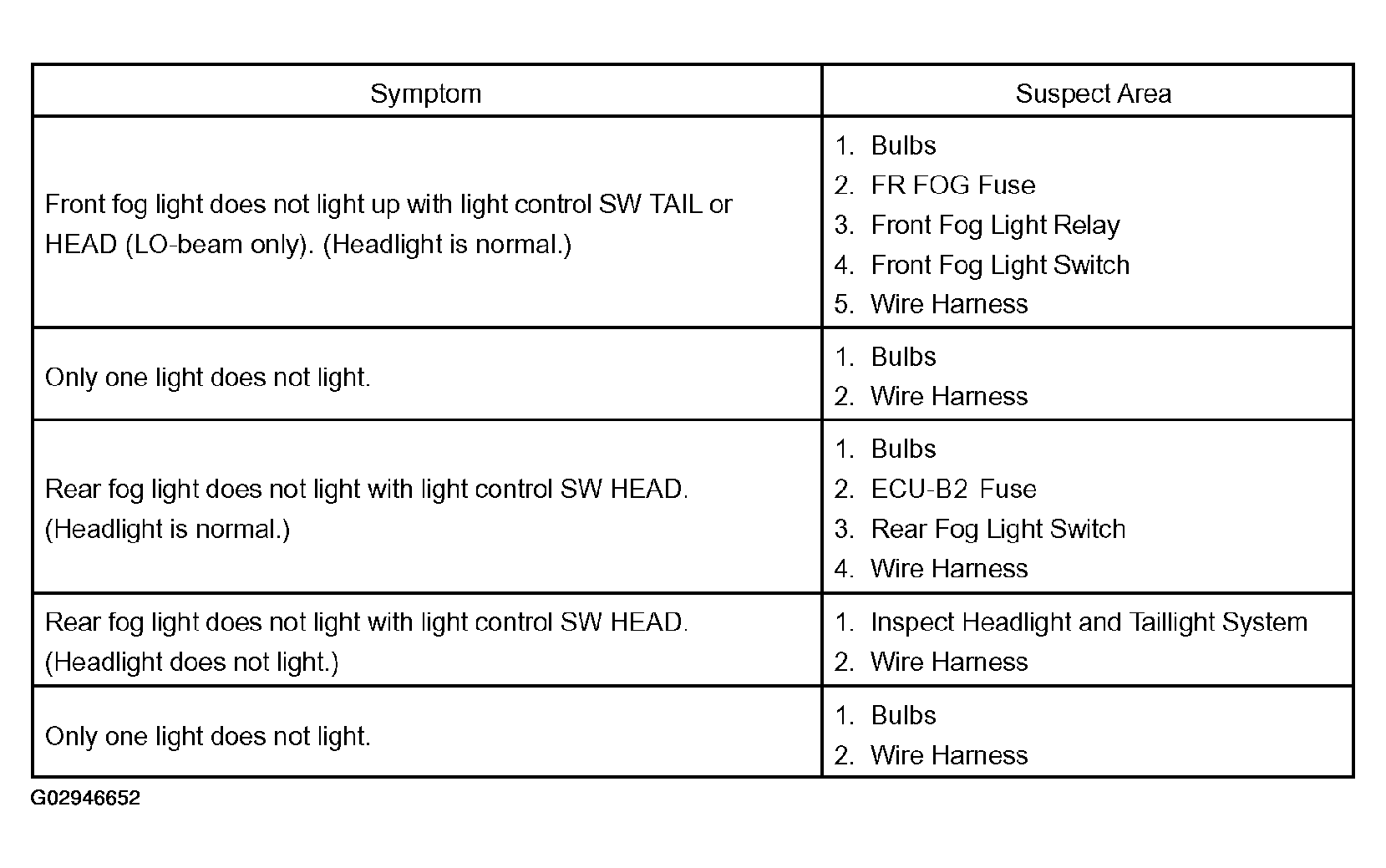

Fig 1: Problem Symptoms Chart - Fog Light System
G02946652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
