Key Unlock Warning Switch

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.

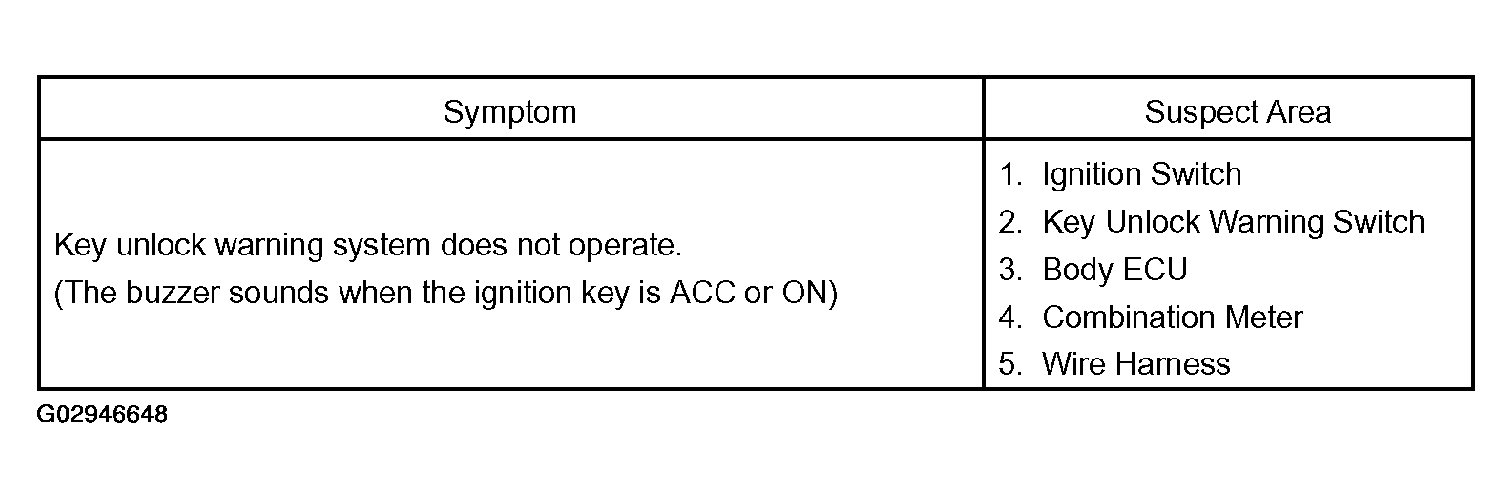

Fig 1: Problem Symptoms Chart - Key Unlock Warning Switch
G02946648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Daytime running light system:

HEADLIGHT AND TAILLIGHT SYSTEM

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.

HINT:

To inspect the bulb and light control ECU, replace them with the ones working normally and judge whether they work normally or not.

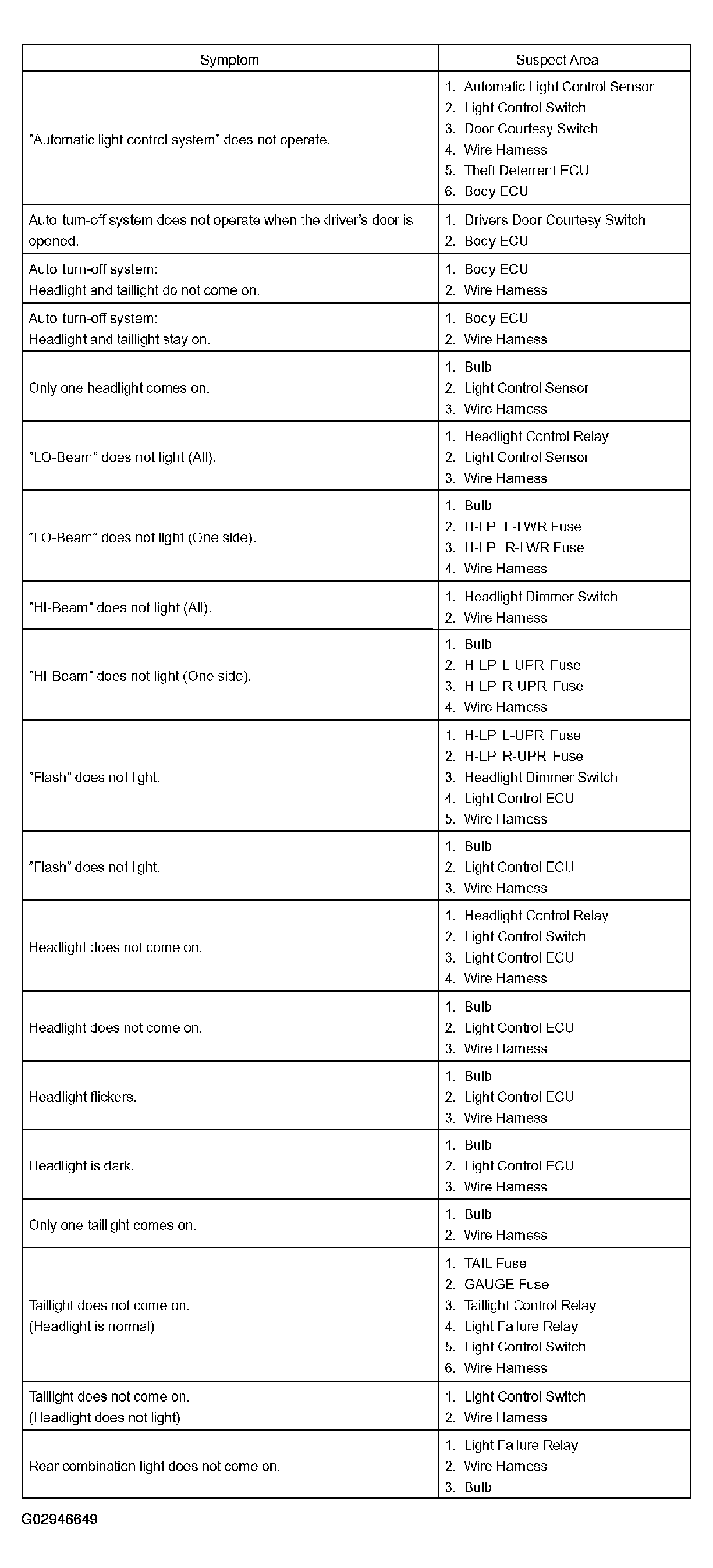

Fig 2: Problem Symptoms Chart - Headlight & Taillight System
G02946649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/Daytime running light system:

  1. HEADLIGHT AND TAILLIGHT SYSTEM

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.

HINT:

To inspect the bulb and light control ECU, replace them with the ones working normally and judge whether they work normally or not.

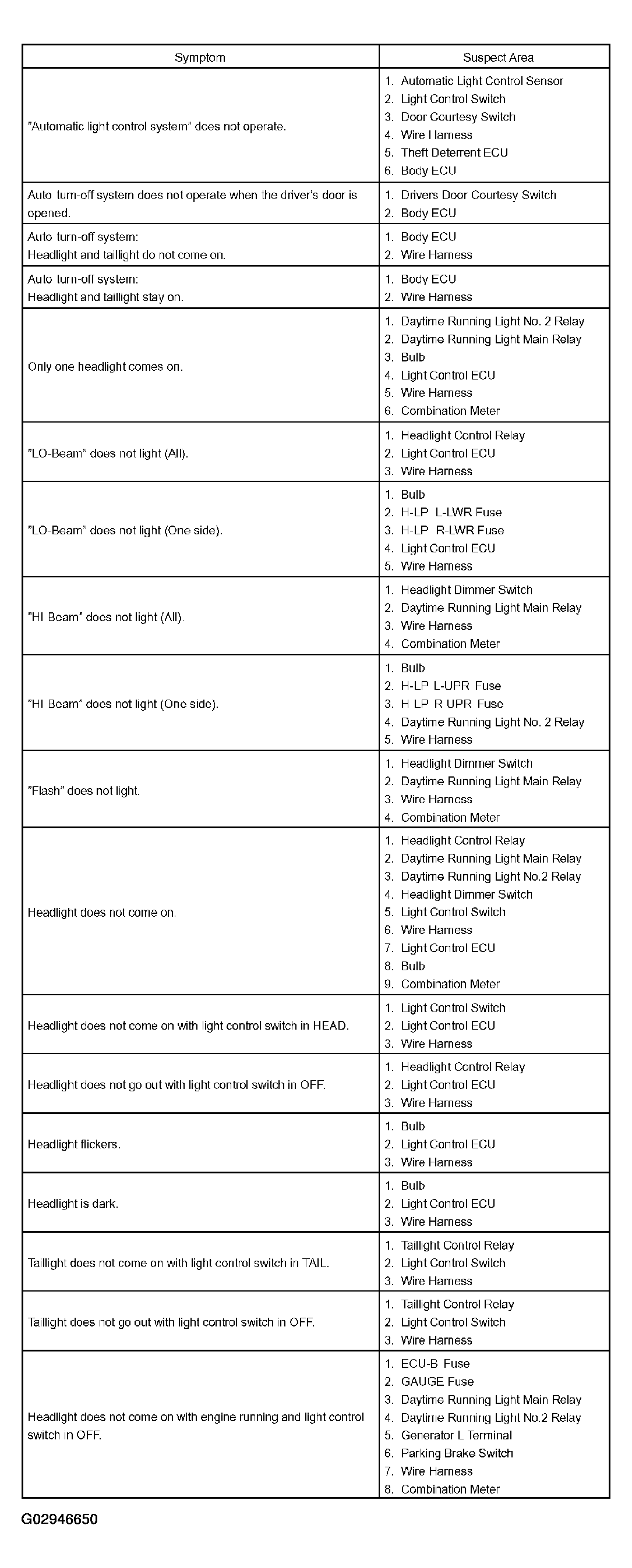

Fig 3: Problem Symptoms Chart - Headlight & Taillight System
G02946650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HID type headlight:
