Sliding Roof System

HINT:

The sliding roof system must be initialized after any of the following is done:

• The battery is disconnected.
• The S/ROOF fuse is replaced.
• The sliding roof assembly (sliding roof ECU) is replaced.
• The sliding roof is removed and reinstalled or replaced.

Initialize the sliding roof system as follows:

• Using the tilt switch, tilt the roof fully upward, and then fully downward.
• Using the slide switch, fully open the roof, and then fully close it.

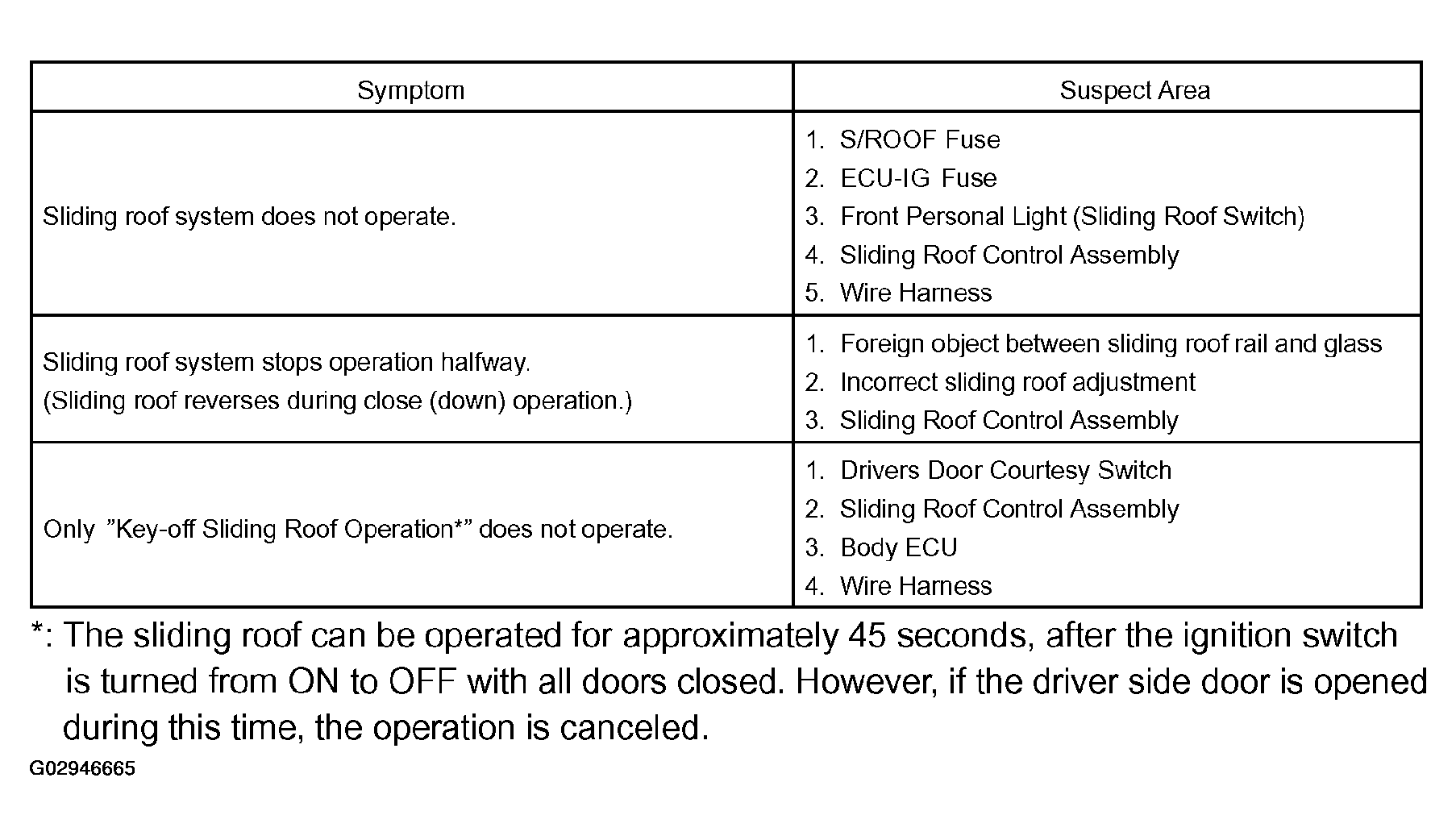

  Fig 1: Problem Symptoms Chart - Sliding Roof System

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
