Home >> Lexus >> 2005 >> IS 300 Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Engine Mechanical >> Timing Belt >> Components

Timing Belt: Components

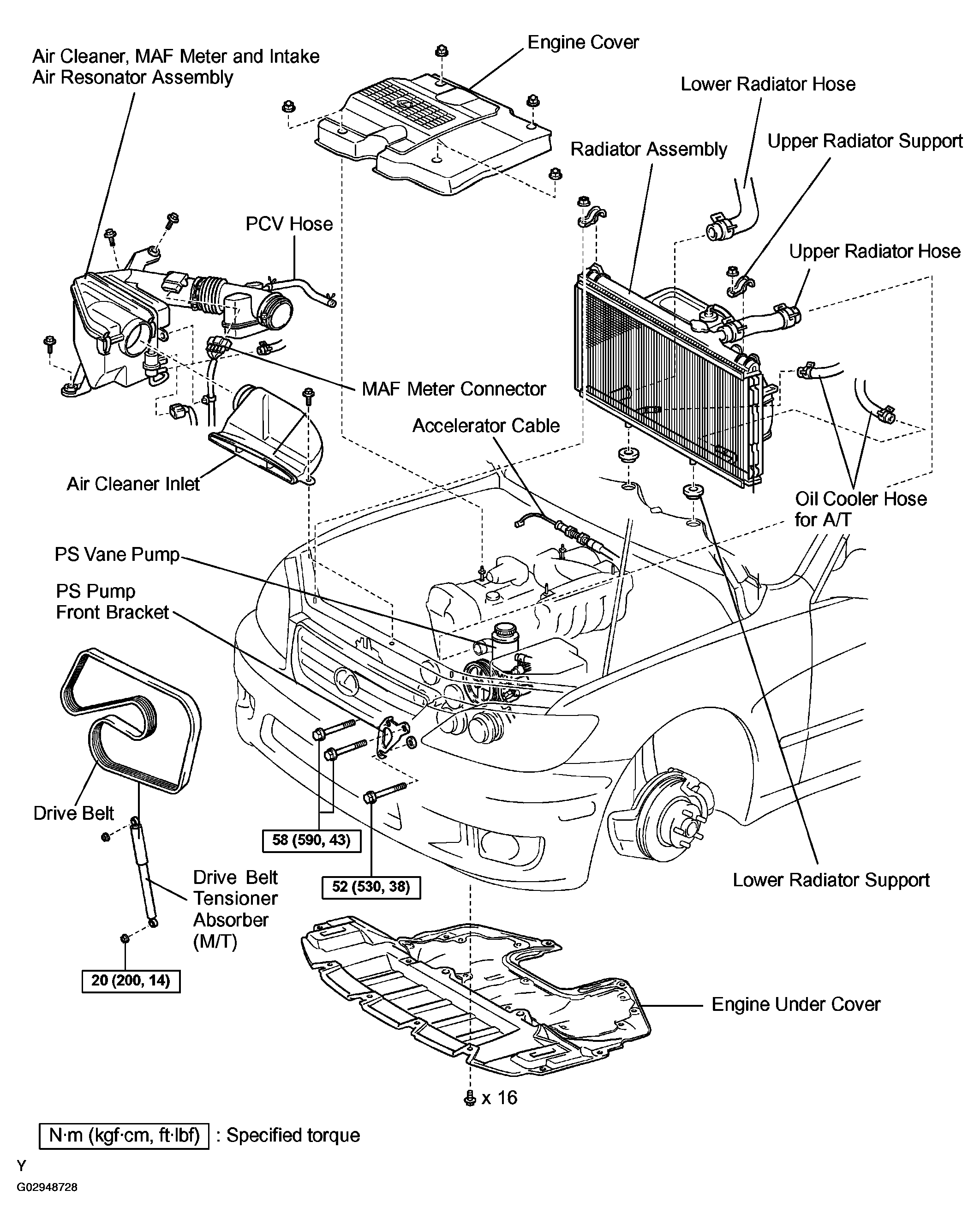

Fig 1: Engine Replacement Components - Timing Belt With Torque Specifications (1 Of 2)
G02948728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

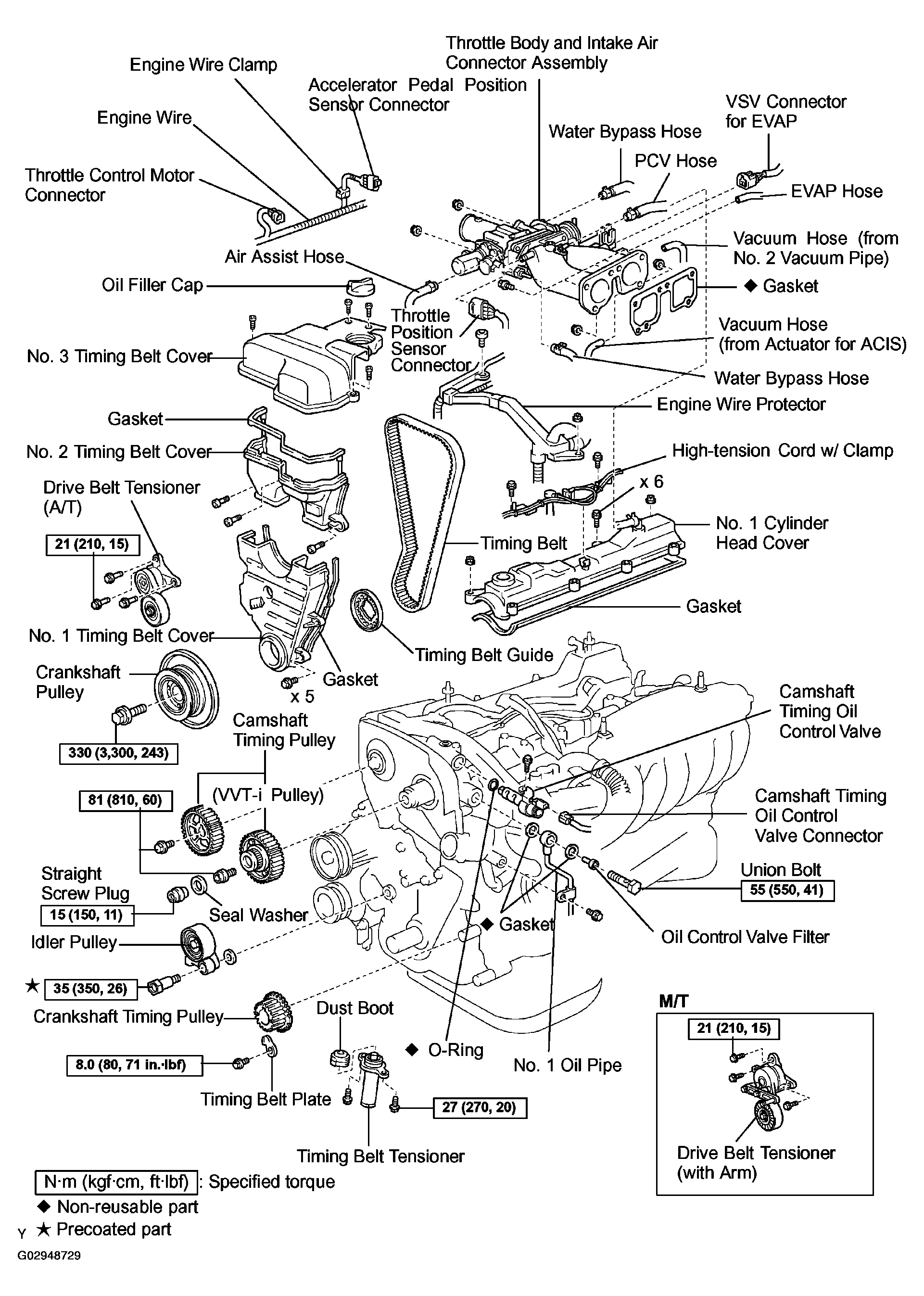

Fig 2: Engine Replacement Components - Timing Belt With Torque Specifications (2 Of 2)
G02948729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
