Fuel Pressure Regulator: Components

Fig 1: Exploded View Of Fuel Pressure Regulator Components With Torque Specifications (1 Of 2)
G02949185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

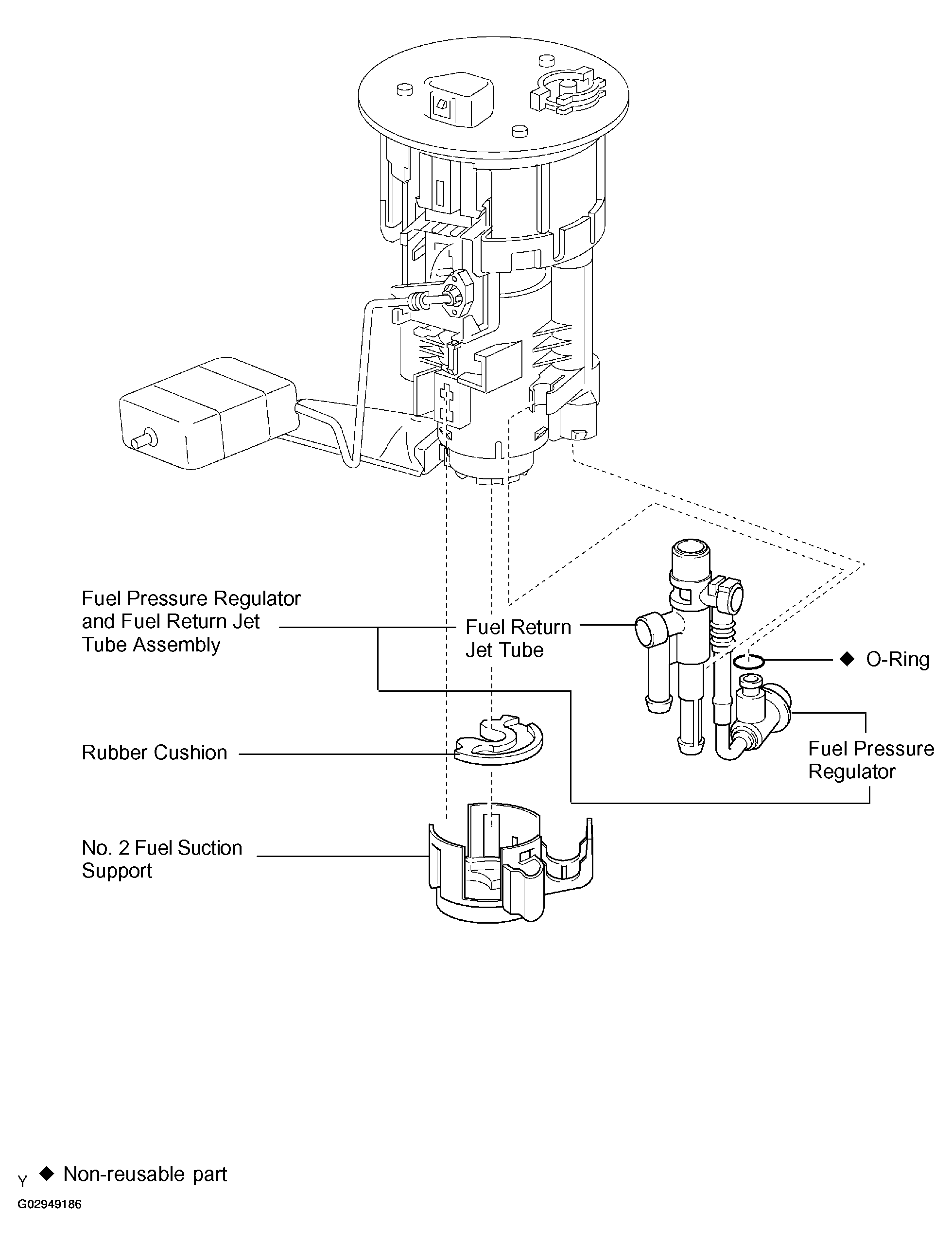

Fig 2: Exploded View Of Fuel Pressure Regulator Components (2 Of 2)
G02949186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
