Home >> Lexus >> 2005 >> IS 300 Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Preparation >> Air Conditioning >> SST (Special Service Tools)

SST (Special Service Tools)

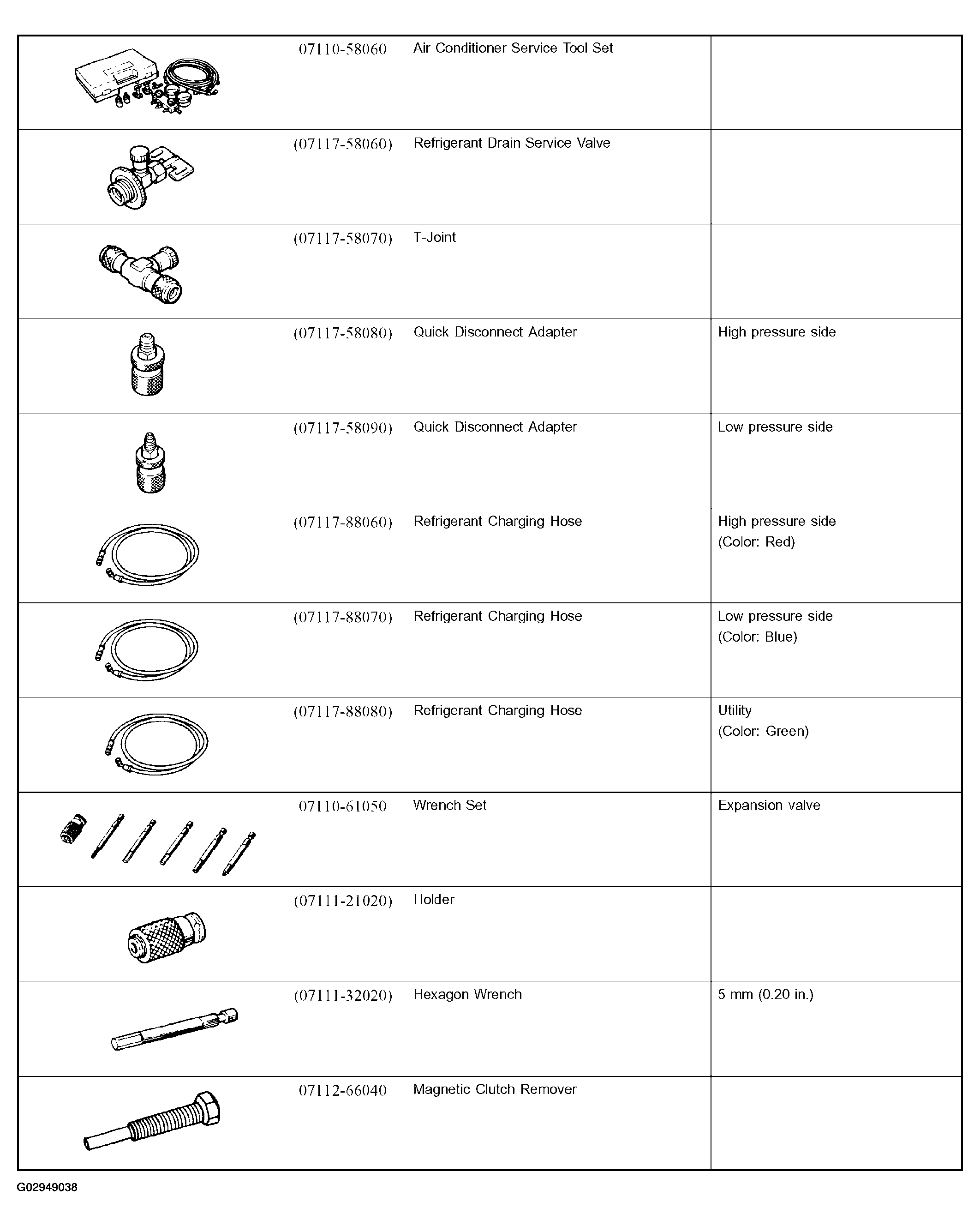

Fig 1: Identifying Special Service Tools - Air Conditioning (1 Of 2)
G02949038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

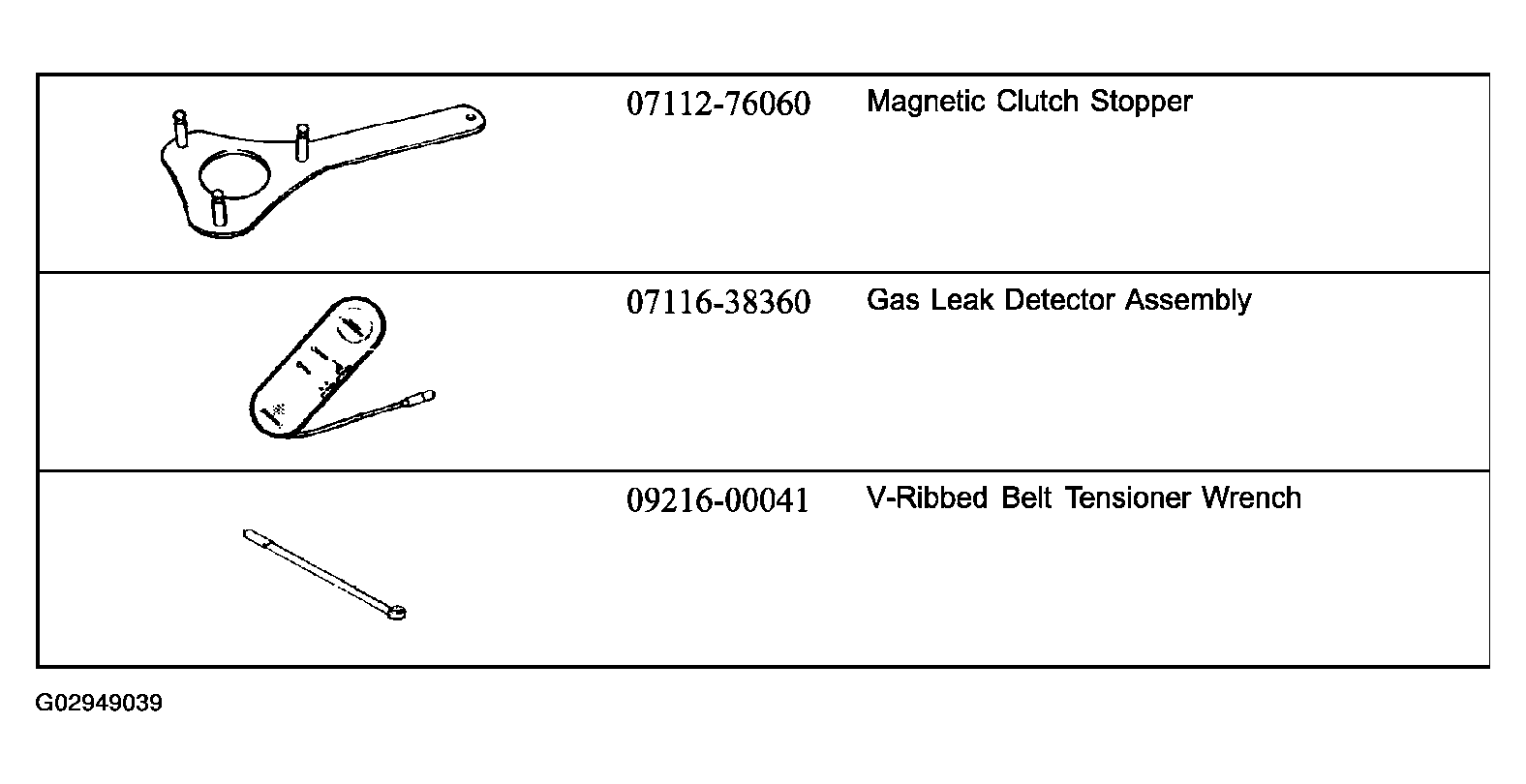

Fig 2: Identifying Special Service Tools - Air Conditioning (2 Of 2)
G02949039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
