Problem Symptoms Table: Notes

HINT:

If a normal code is displayed during the DTC check but the trouble still occurs, check the circuits for each symptom in the order given for troubleshooting.

The Matrix Chart is divided into 3 chapters.

• If the instruction "Proceed to next circuit inspection shown on matrix chart" is given in the flow chart for each circuit, proceed to the circuit with the next highest number in the table to continue the check.
• If the trouble still occurs even though there are no abnormalities in any of the other circuits, then check and replace the ECM.

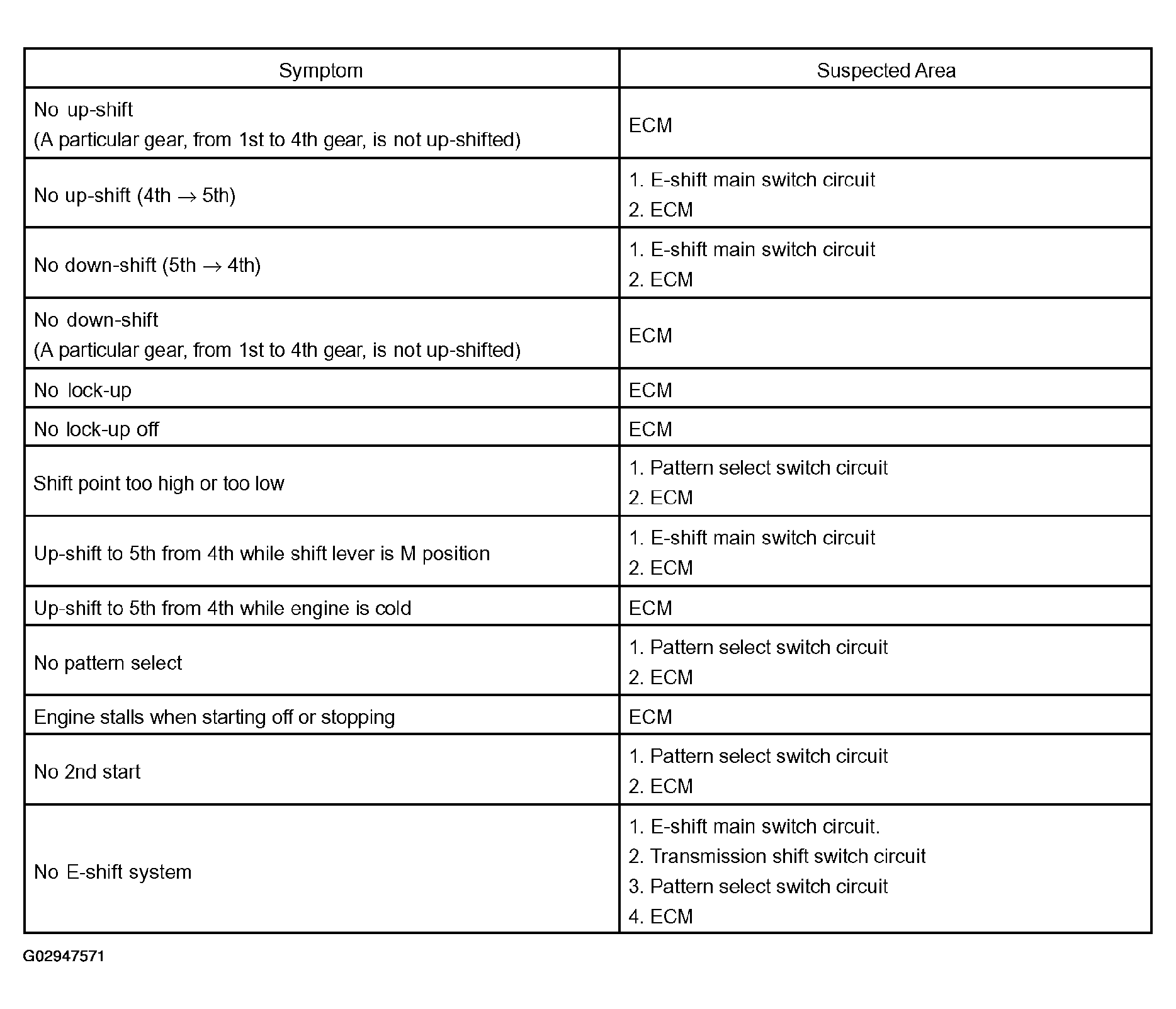

1. CHAPTER 1: ELECTRONIC CIRCUIT MATRIX CHART
   Fig 1: Chapter 1: Electronic Circuit Matrix Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

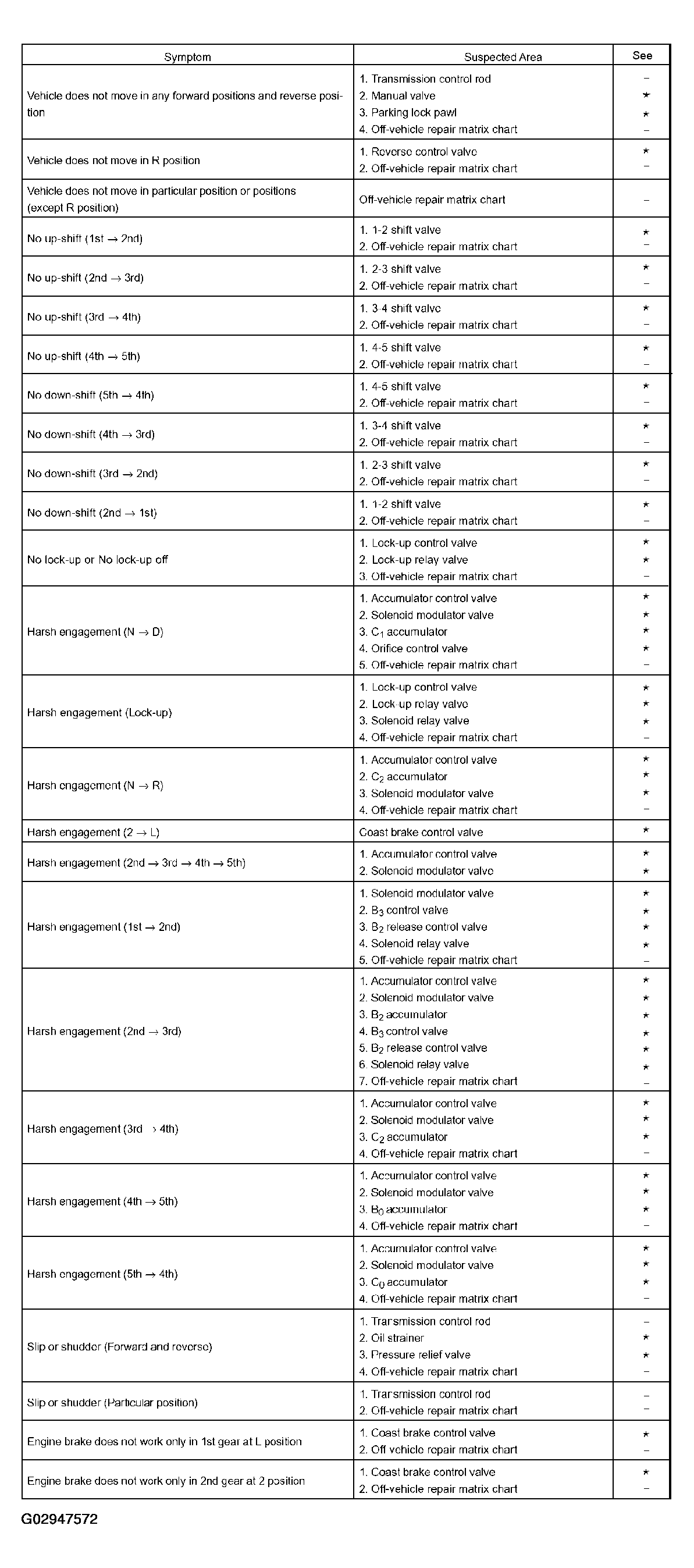

2. CHAPTER 2: ON-VEHICLE REPAIR

   (*: See  OVERHAUL - A650E  article)

   Fig 2: Chapter 2: On-Vehicle Repair Diagnostic Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

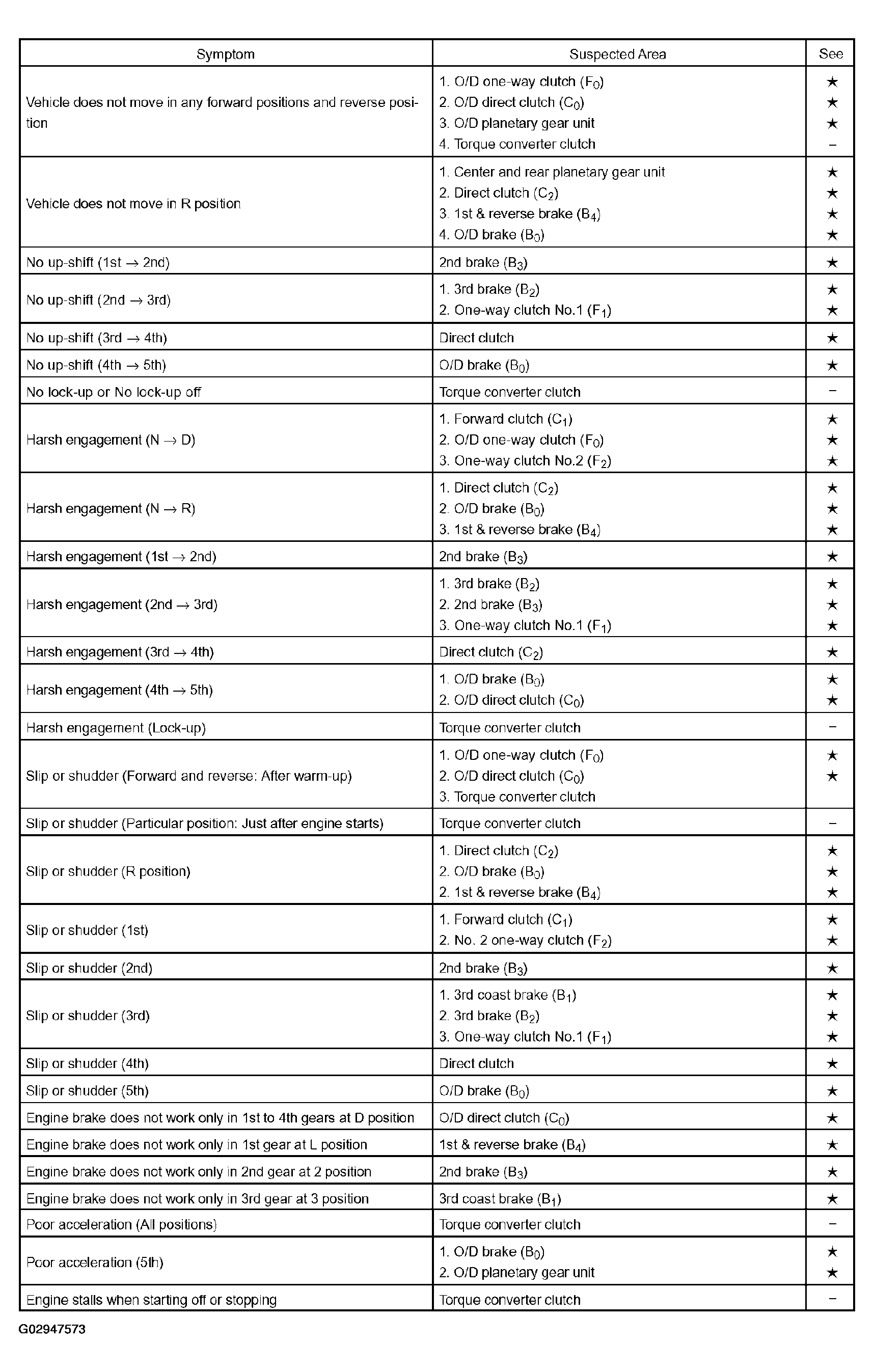

3. CHAPTER 3: OFF-VEHICLE REPAIR

   (*: See  OVERHAUL - A650E  article)

   Fig 3: Chapter 3: Off-Vehicle Repair Diagnostic Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
