How To Proceed With Troubleshooting
How To Proceed With Troubleshooting
Troubleshoot in accordance with the procedure on this information.

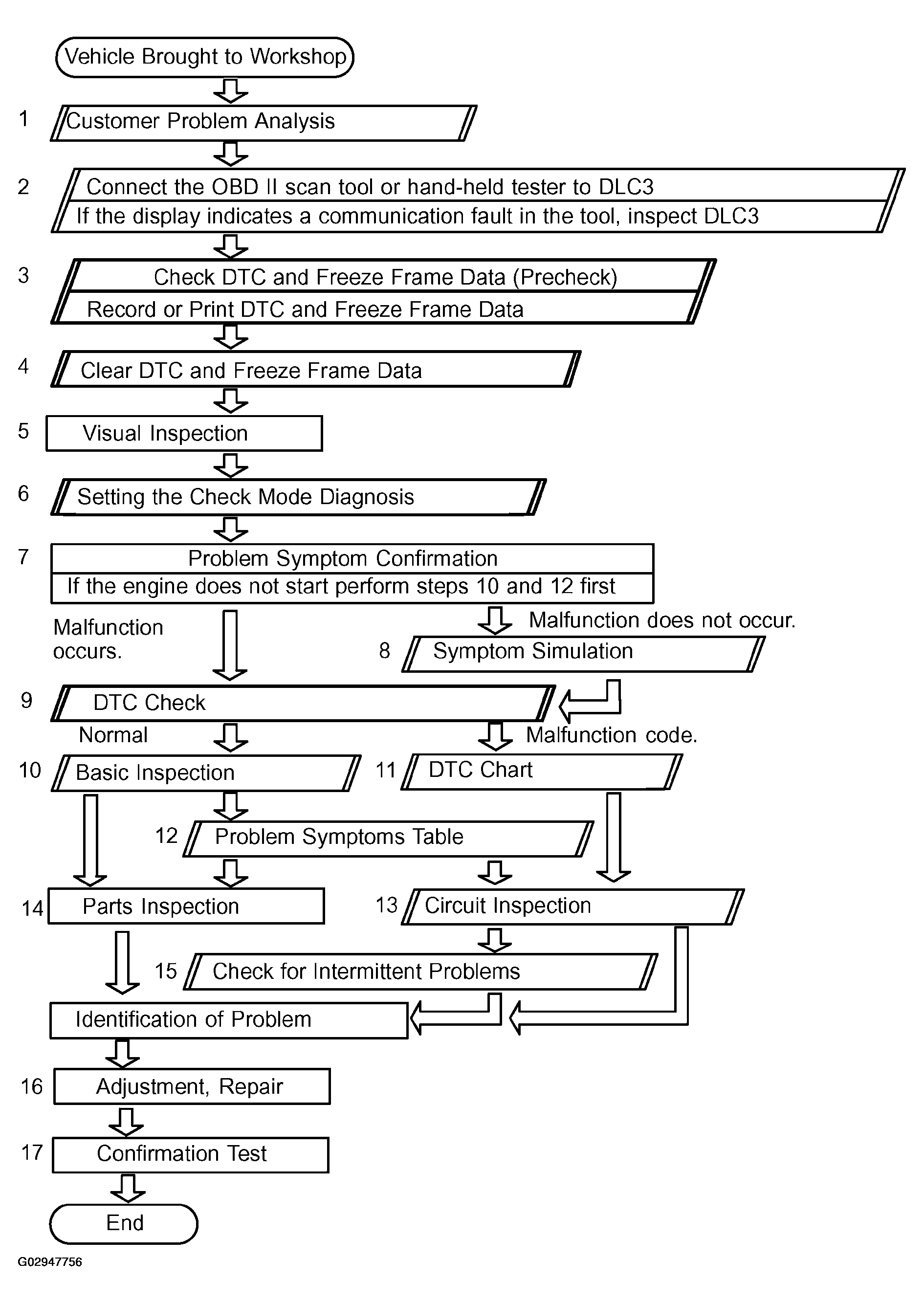

Fig 1: Engine Troubleshooting Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
