Home >> Lexus >> 2005 >> IS 300 Base, Standard >> Repair and Diagnosis >> Engine Performance >> Tune-Up >> Ignition System >> Crankshaft Position Sensor >> Components

Crankshaft Position Sensor: Components

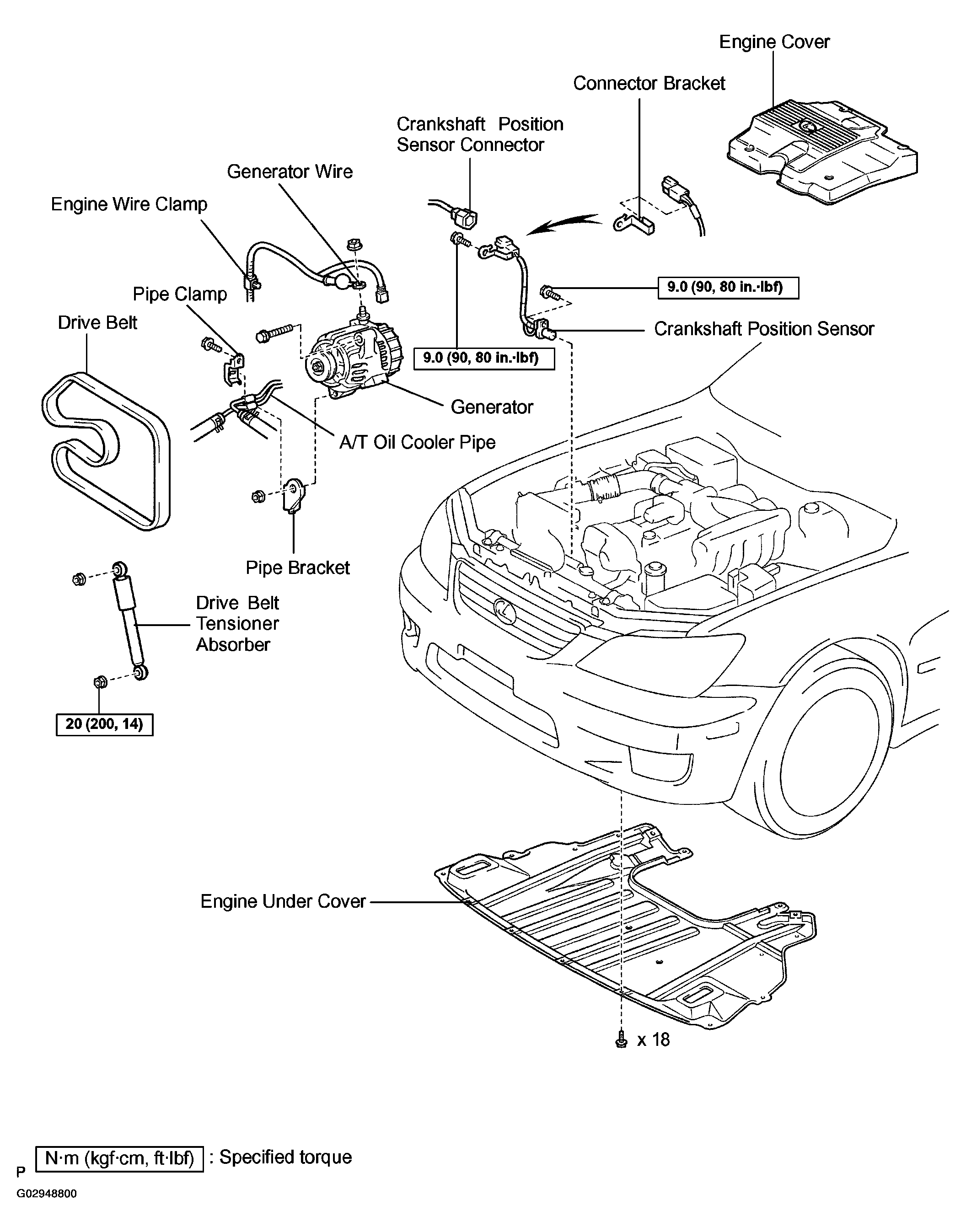

Fig 1: Exploded View Of Crankshaft Position Sensor Components With Torque Specifications

G02948800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
