Generator ASSY: Components

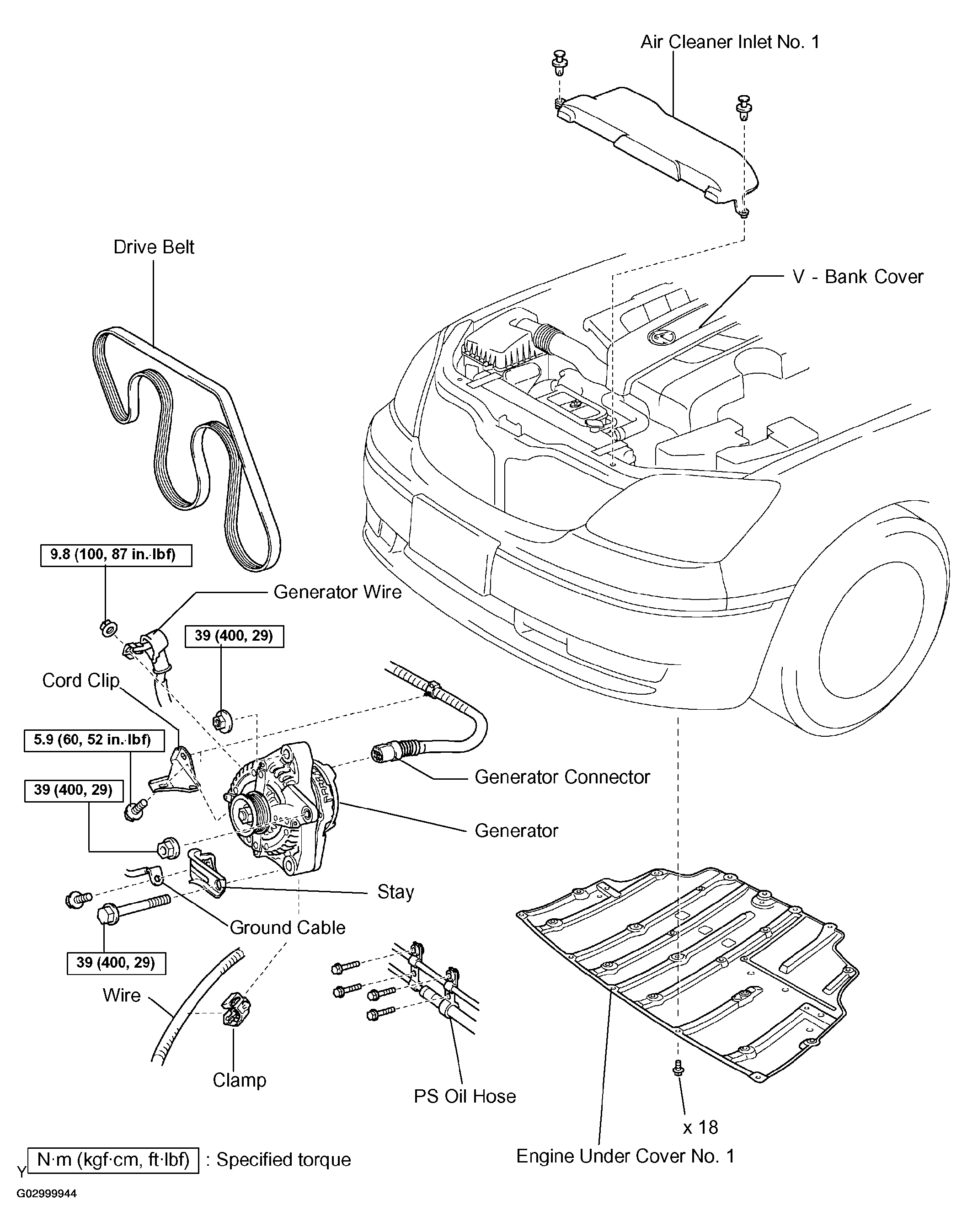

Fig 1: Identifying Generator Assy Components & Replacements (1 Of 2)
G02999944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

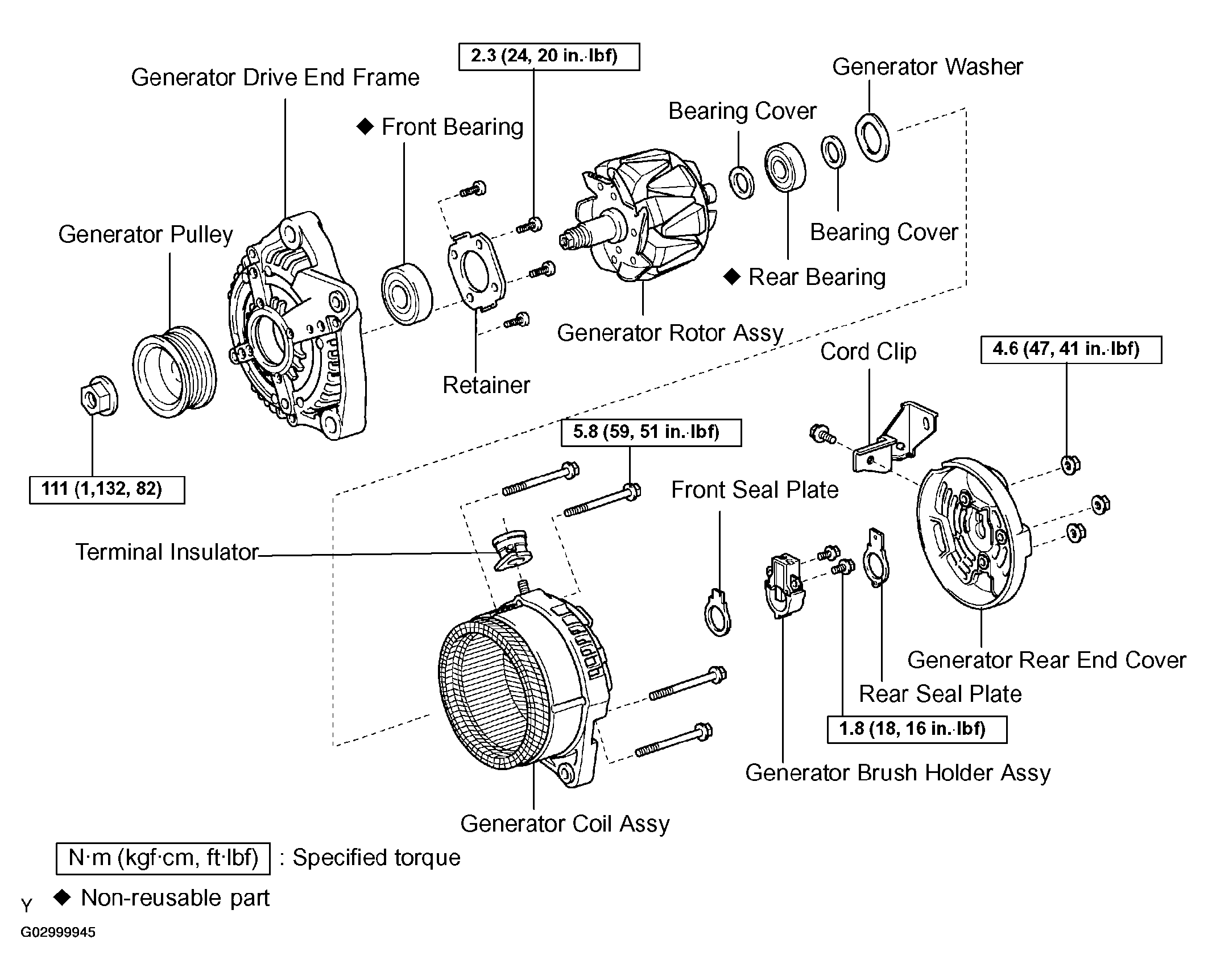

Fig 2: Identifying Generator Assy Components & Replacements (2 Of 2)
G02999945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
