Starter ASSY: Components

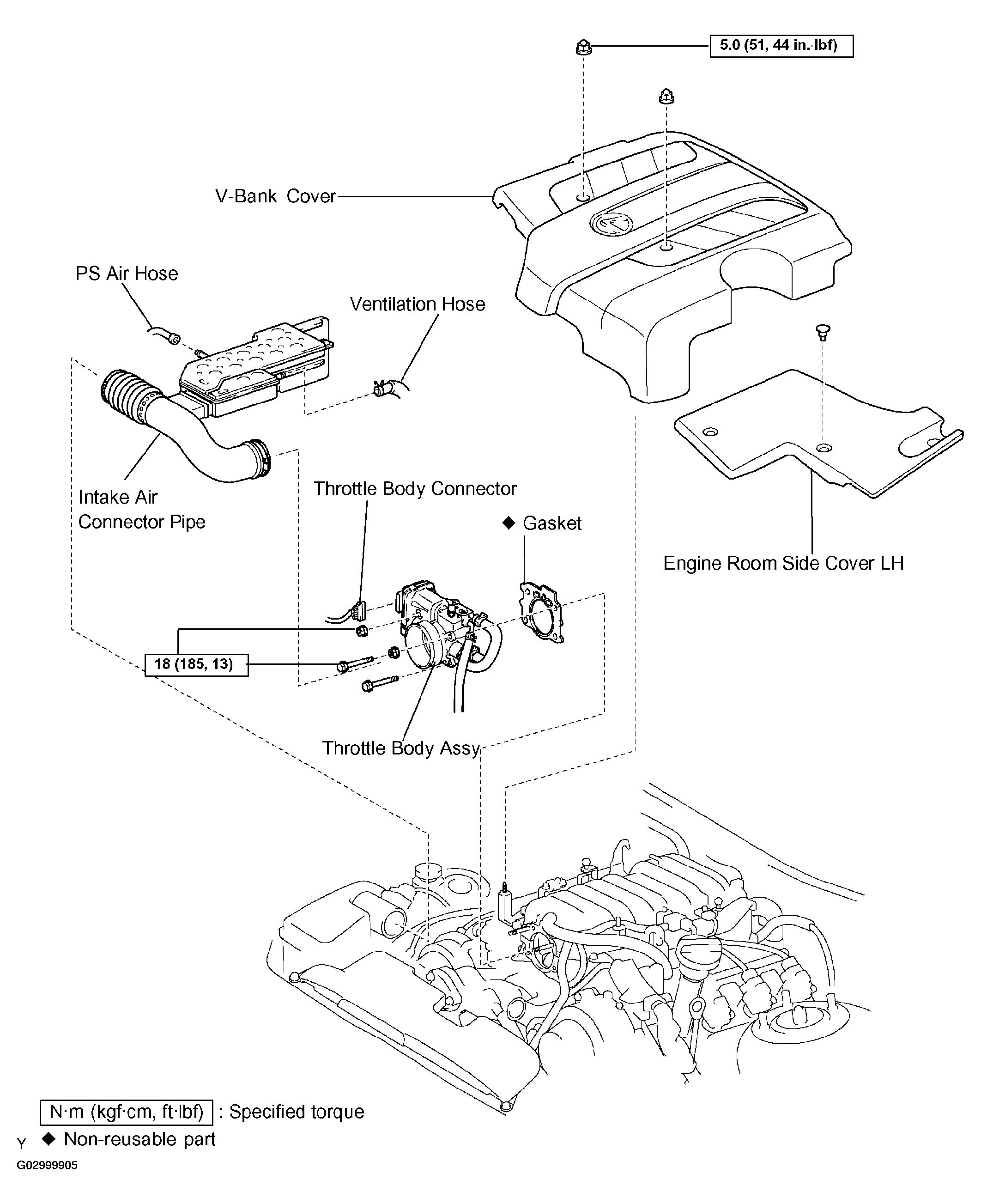

Fig 1: Identifying Starter Assy Components & Replacements (1 Of 3)
G02999905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Starter Assy Components & Replacements (2 Of 3)
G02999906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

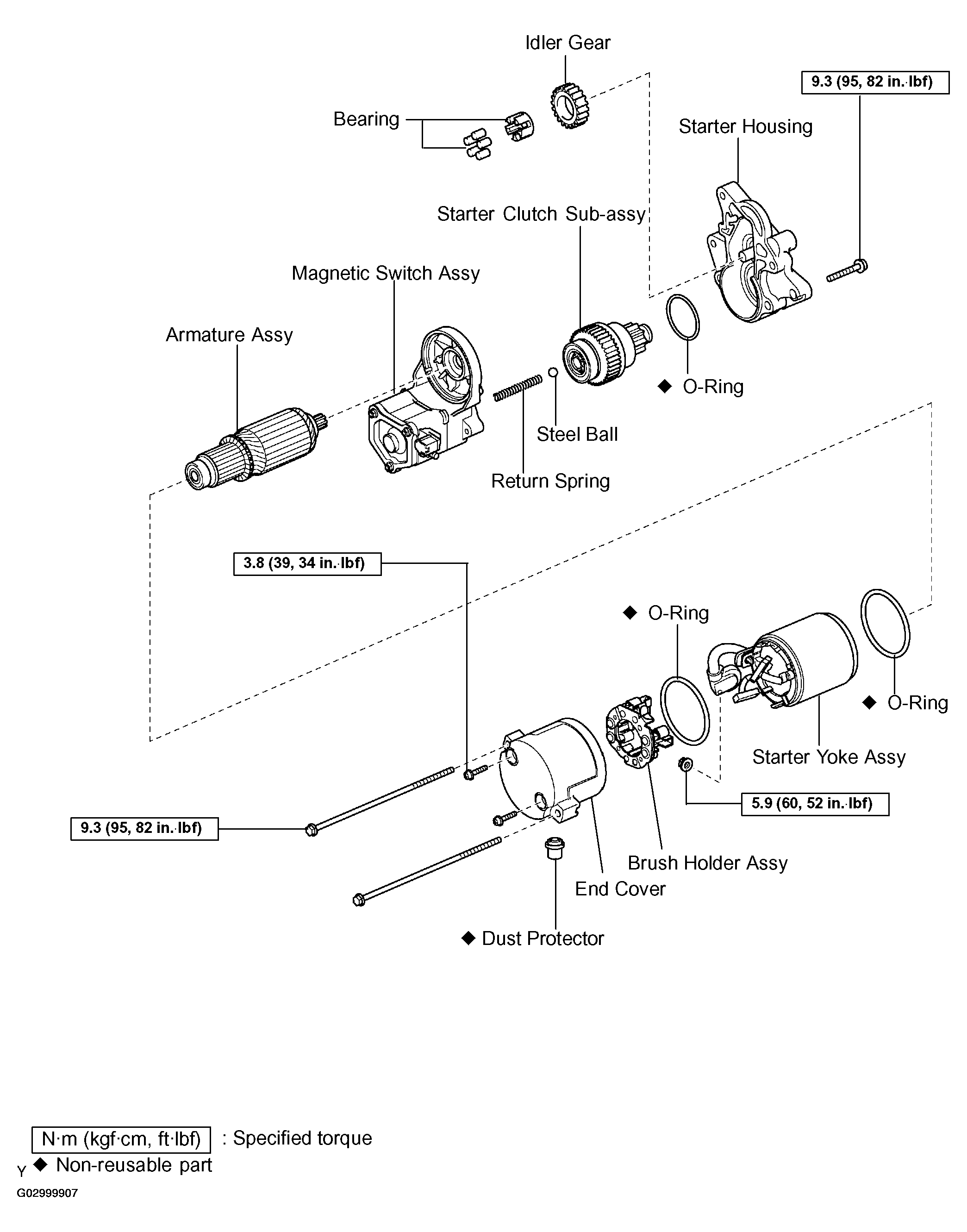

Fig 3: Identifying Starter Assy Components & Replacements (3 Of 3)
G02999907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
