Instrument Panel/Meter: Components

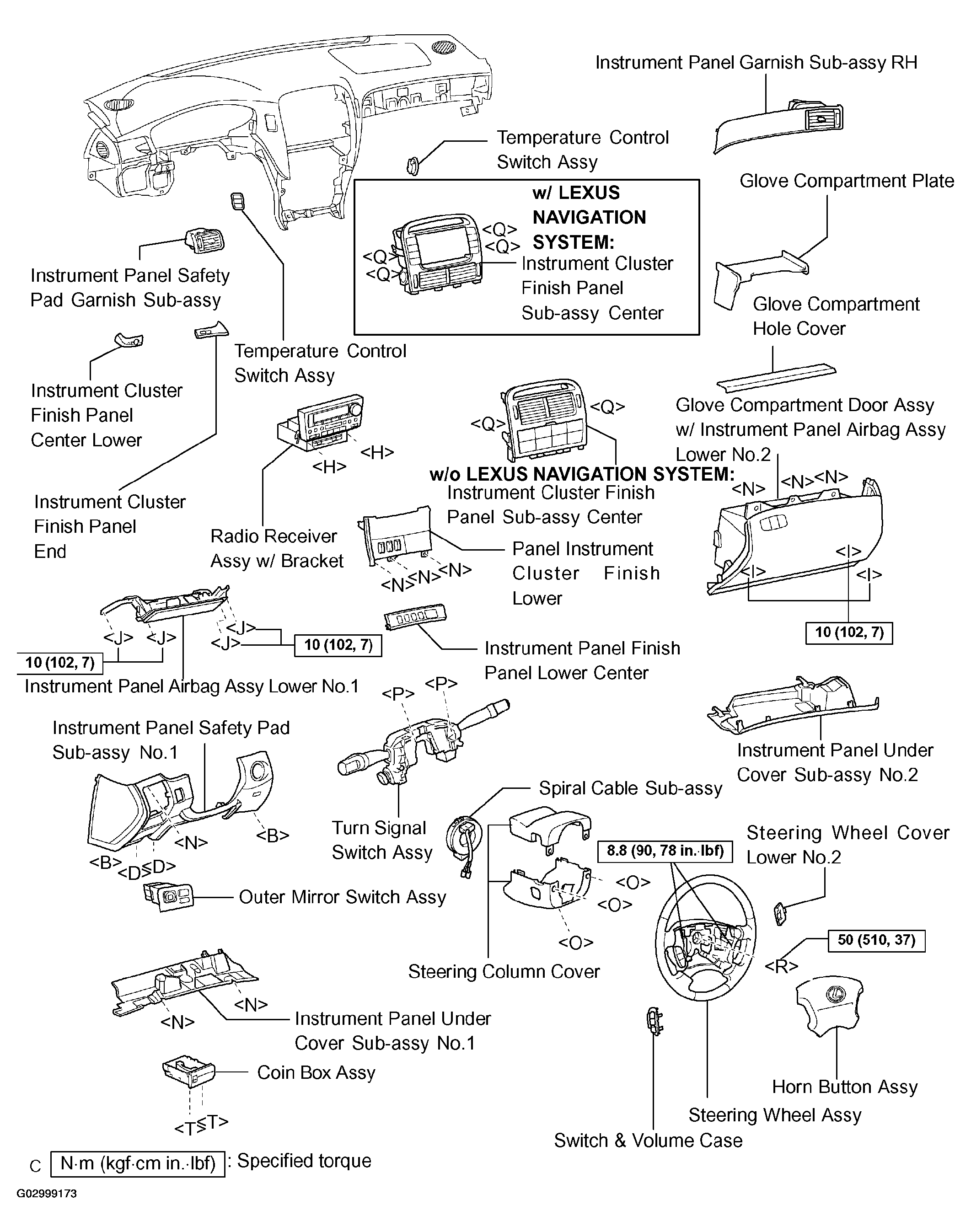

Fig 1: Identifying Instrument Panel/Meter Components (1 Of 4)
G02999173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

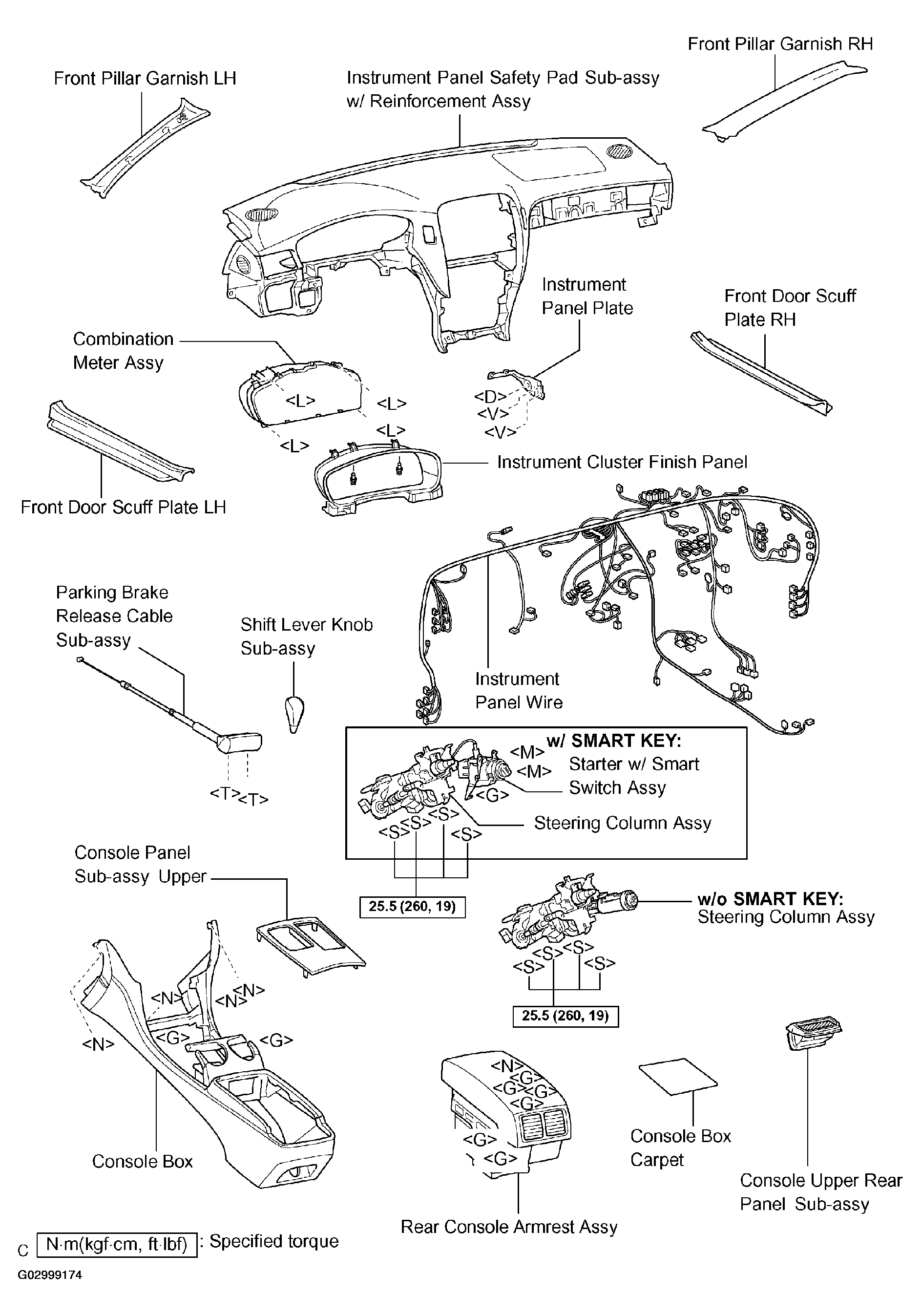

Fig 2: Identifying Instrument Panel/Meter Components (2 Of 4)
G02999174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Instrument Panel/Meter Components (3 Of 4)
G02999175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

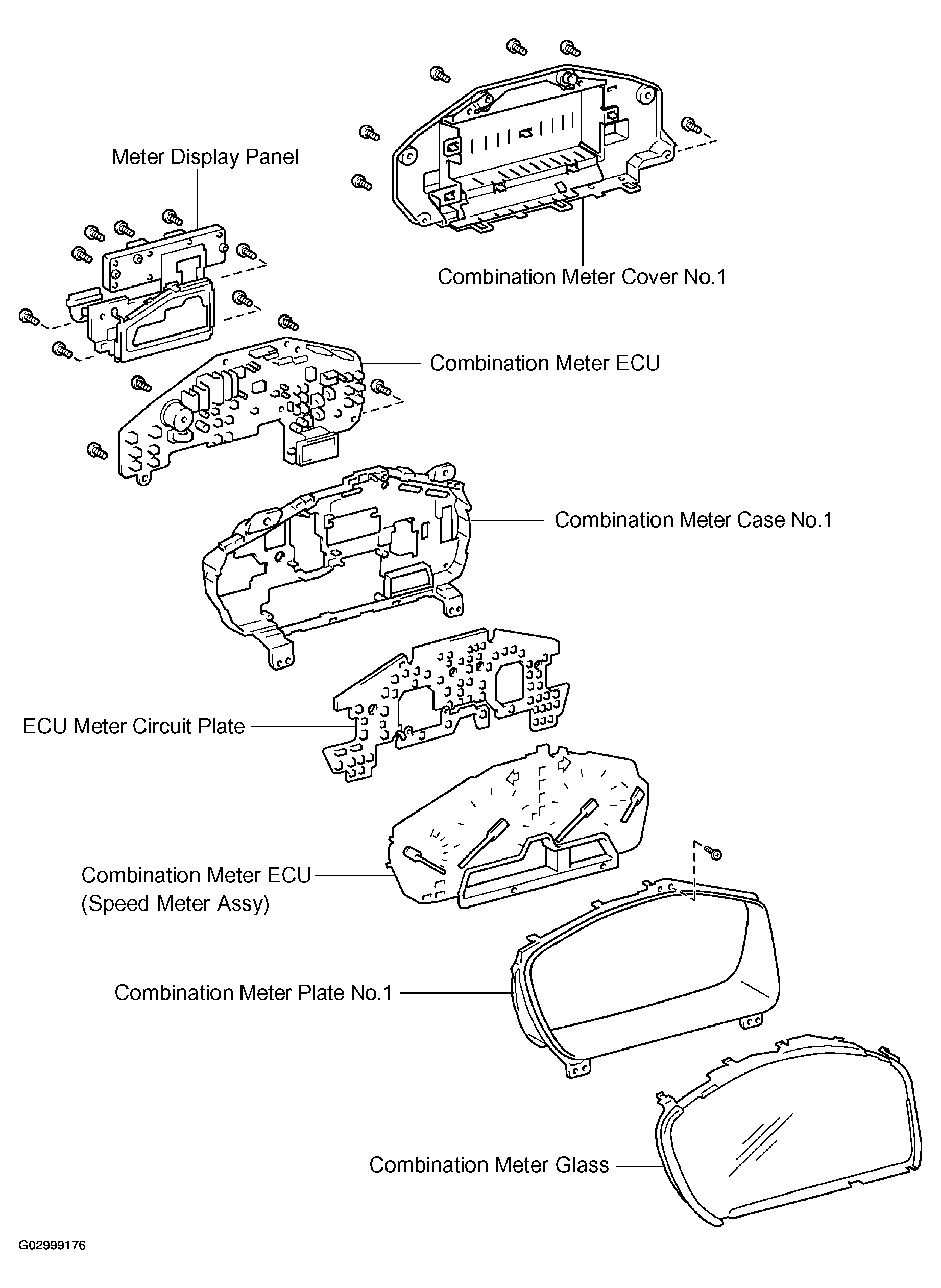

Fig 4: Identifying Instrument Panel/Meter Components (4 Of 4)
G02999176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
