Engine Exhaust Assembly: Components

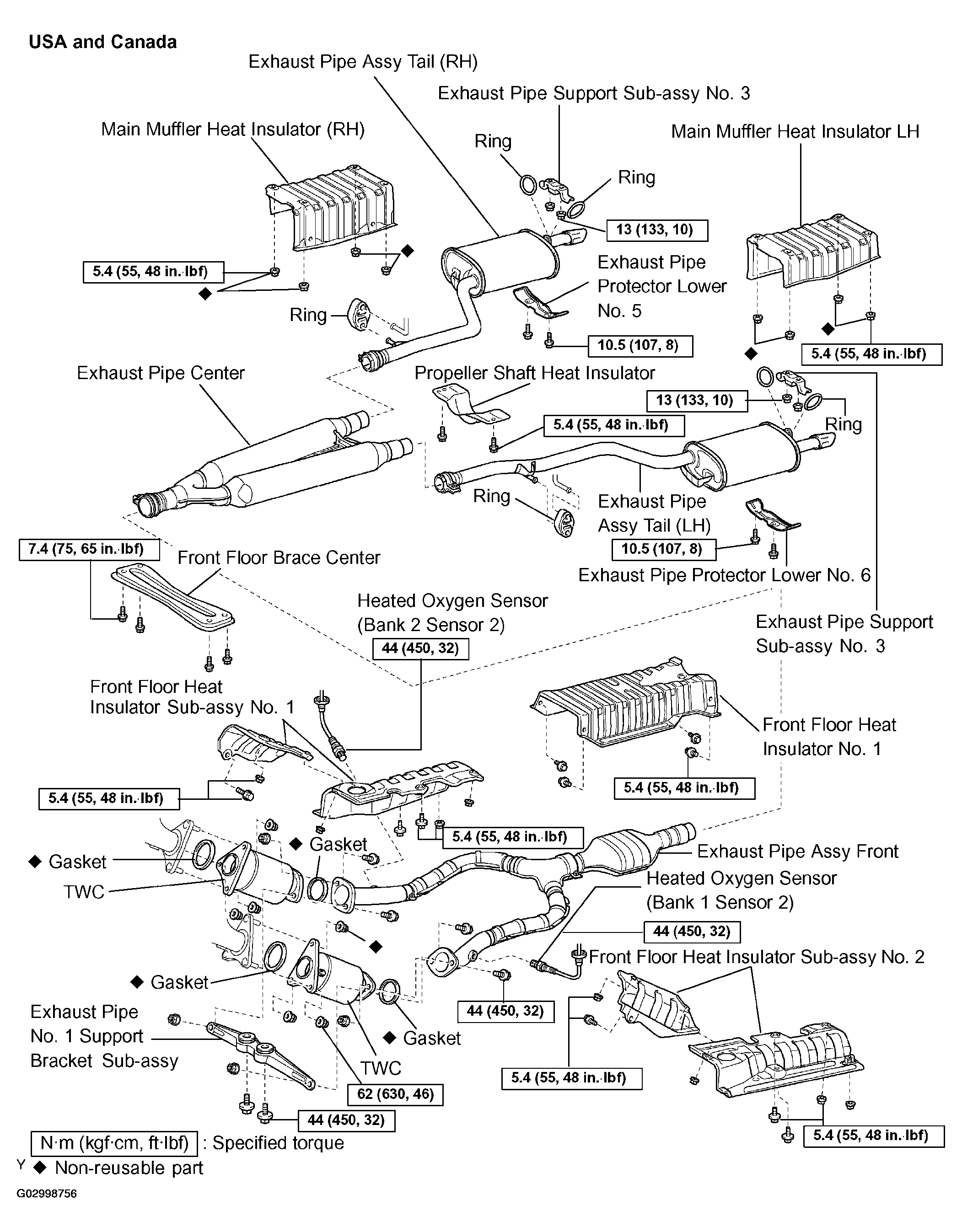

Fig 1: Exploded View Of Exhaust Pipe Assy Components And Replacements (USA And Canada)
G02998756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

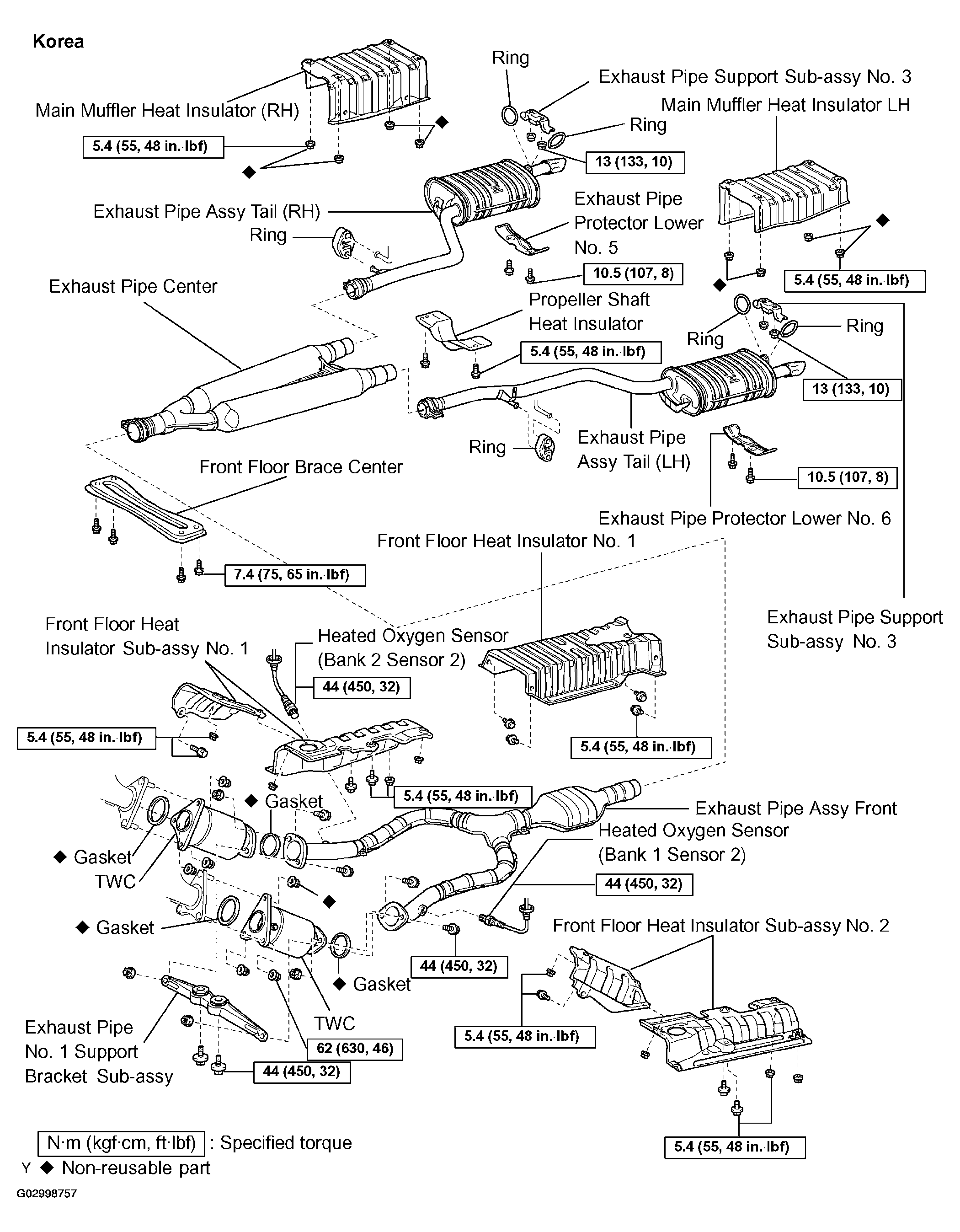

Fig 2: Exploded View Of Exhaust Pipe Assy Components And Replacements (Korea)
G02998757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
