Pre-Collision Safety System - Diagnostics
>>
System Diagram
System Diagram

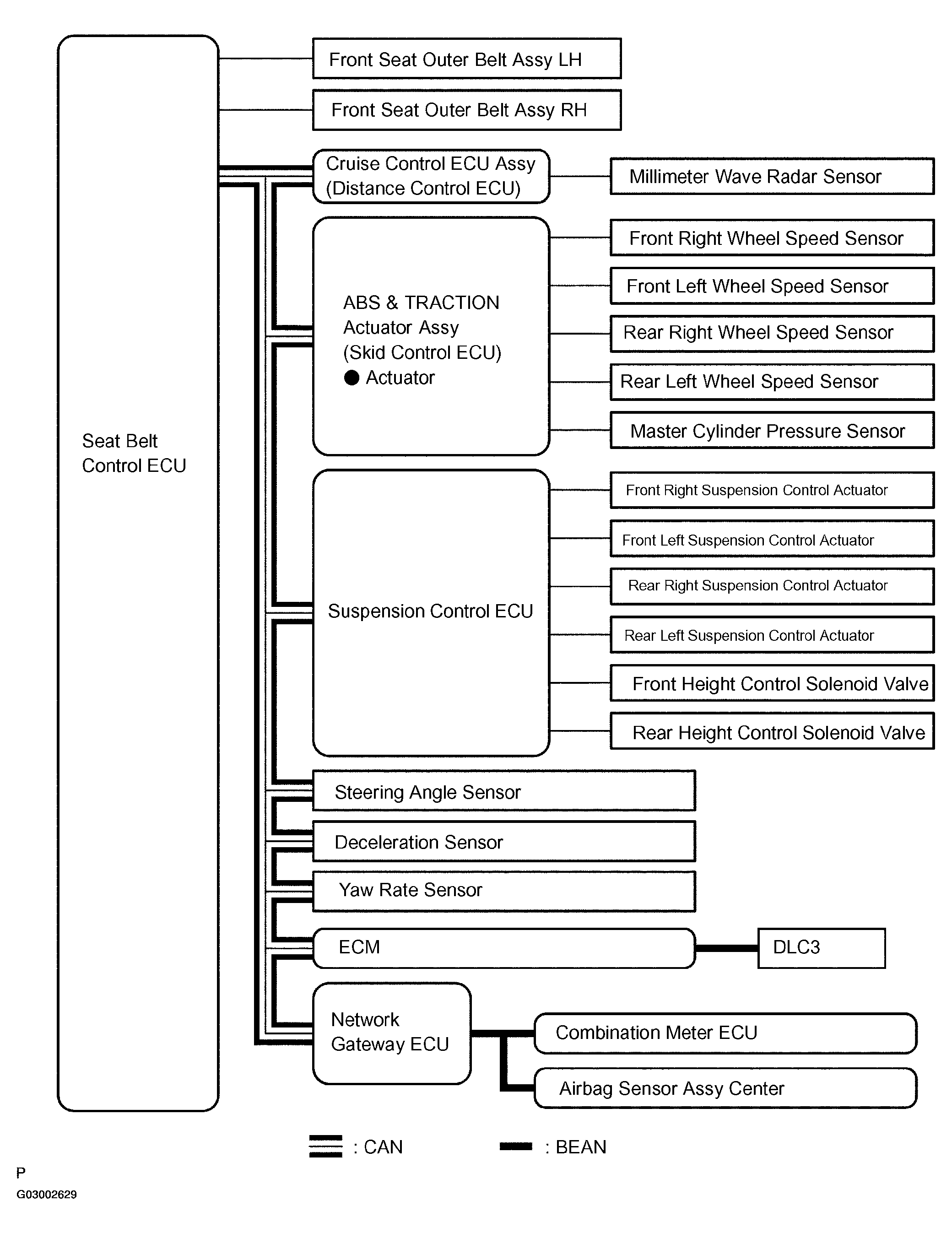

Fig 1: Pre-Collision Safety System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

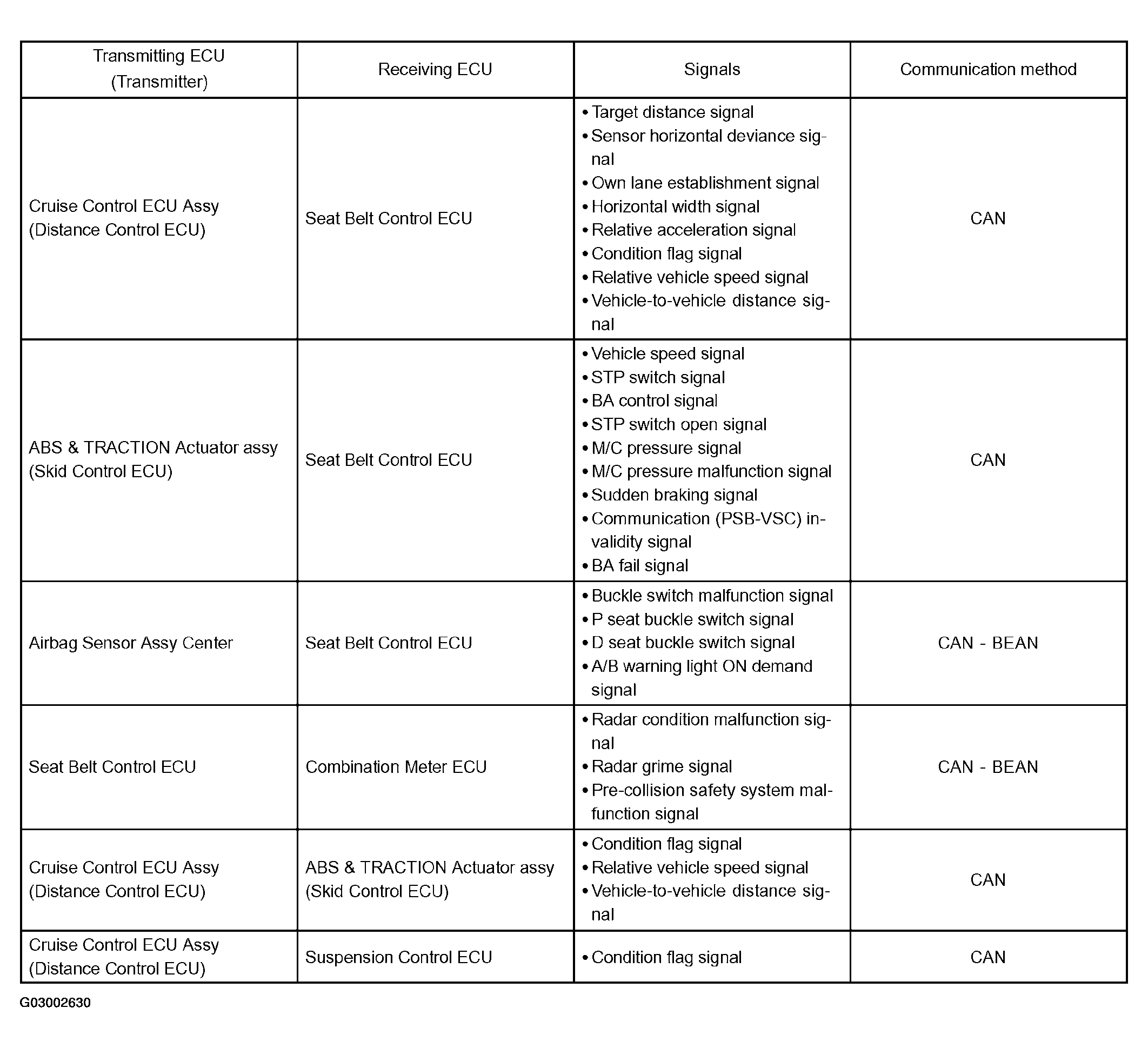

Fig 2: Pre-Collision Safety System Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
