Home >> Lexus >> 2005 >> LS 430 >> Repair and Diagnosis >> Suspension >> Suspension Control Systems >> Suspension Control System >> Height Control Valve Sub-ASSY No.1 >> Components

Height Control Valve Sub-ASSY No.1: Components

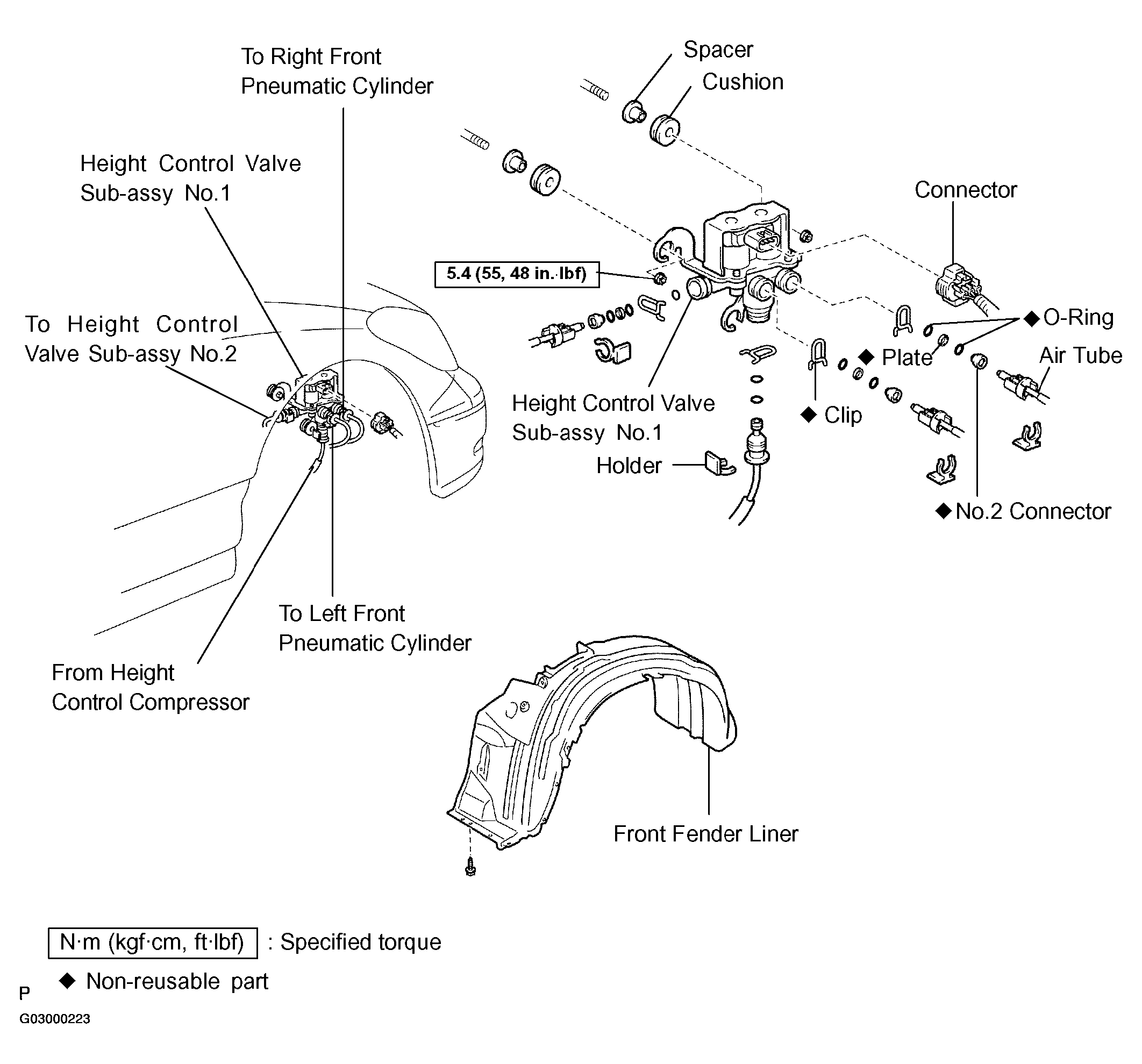

Fig 1: Identifying Height Control Valve Sub-Assy No.1 Components

G03000223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
