Home >> Lexus >> 2005 >> LX 470 >> Repair and Diagnosis >> Body & Frame >> Windows >> Quarter Window Glass >> Components

Quarter Window Glass: Components

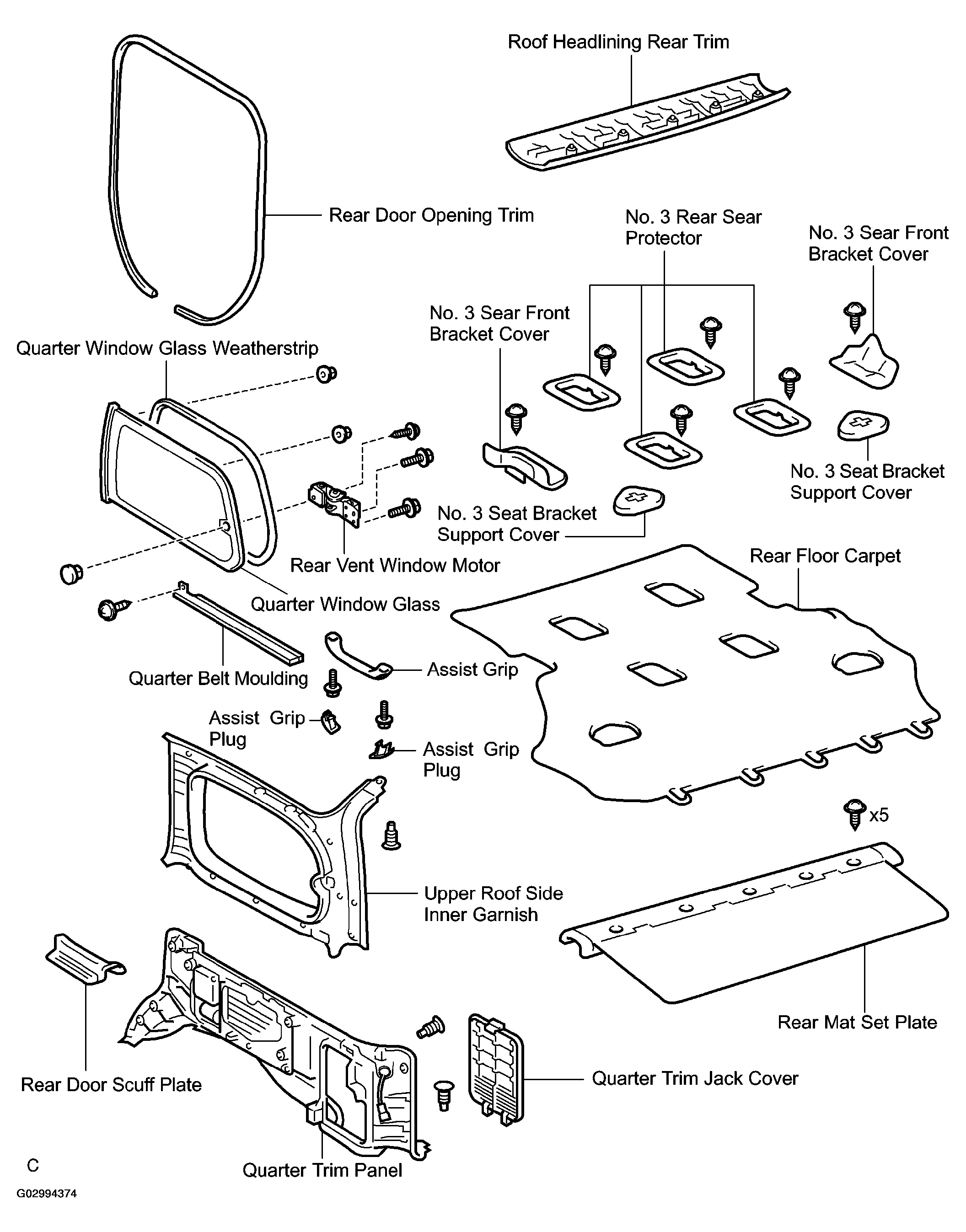

Fig 1: Identifying Quarter Window Glass And Component

G02994374

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
