Rear Door: Disassembly

Using a screwdriver, remove the door inside handle bezel No. 2 as shown in the illustration.

HINT:

Tape up the screwdriver tip before use.

Fig 1: Removing Door Inside Handle Bezel No. 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

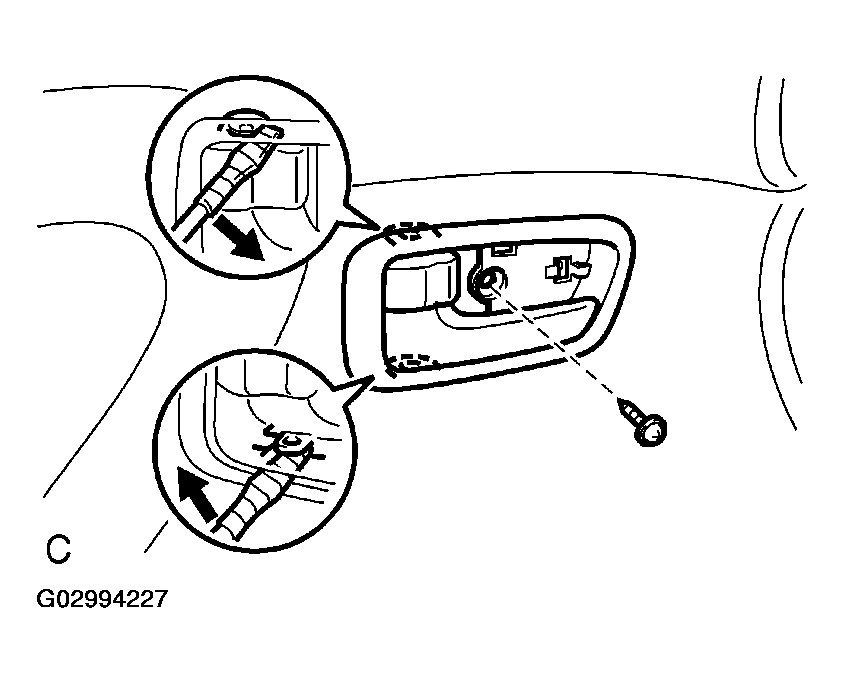

1. Remove the screw.

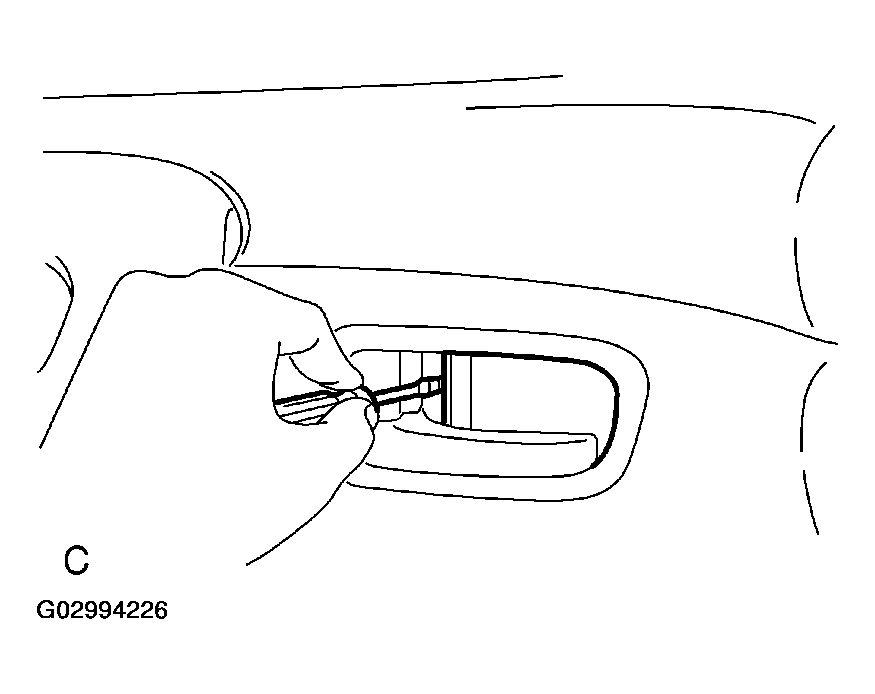

2. Using a screwdriver, remove the door inside handle bezel No. 1 as shown in the illustration.

HINT:

Tape up the screwdriver tip before use.

Fig 2: Removing Door Inside Handle Bezel No.1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

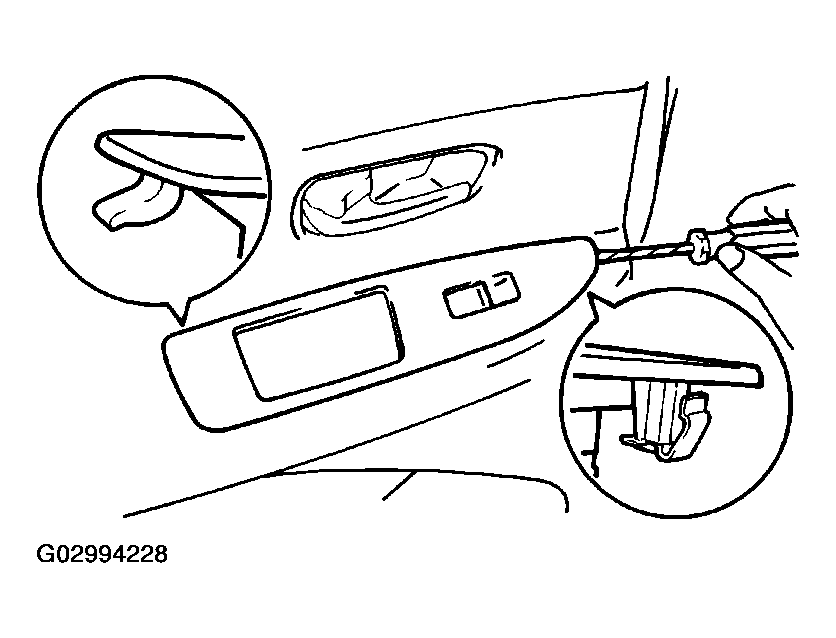

1. Using a screwdriver, remove the power window switch as shown in the illustration.

   HINT:

   Tape up the screwdriver tip before use.

2. Disconnect the connector.

Fig 3: Removing Power Window Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

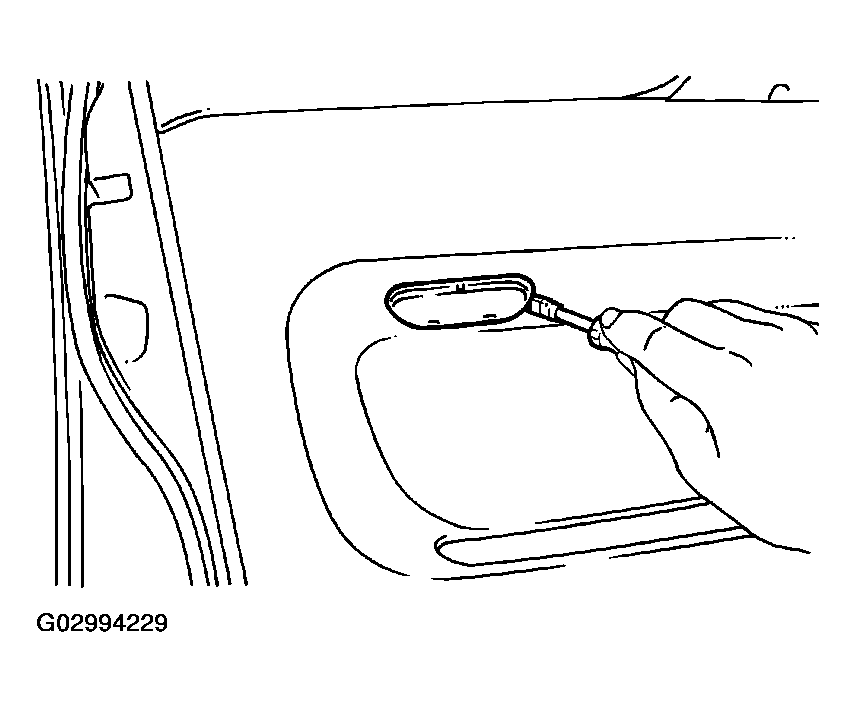

Using a screwdriver, remove the door courtesy light, then disconnect the connector.

HINT:

Tape up the screwdriver tip before use.

Fig 4: Removing Door Courtesy Light

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

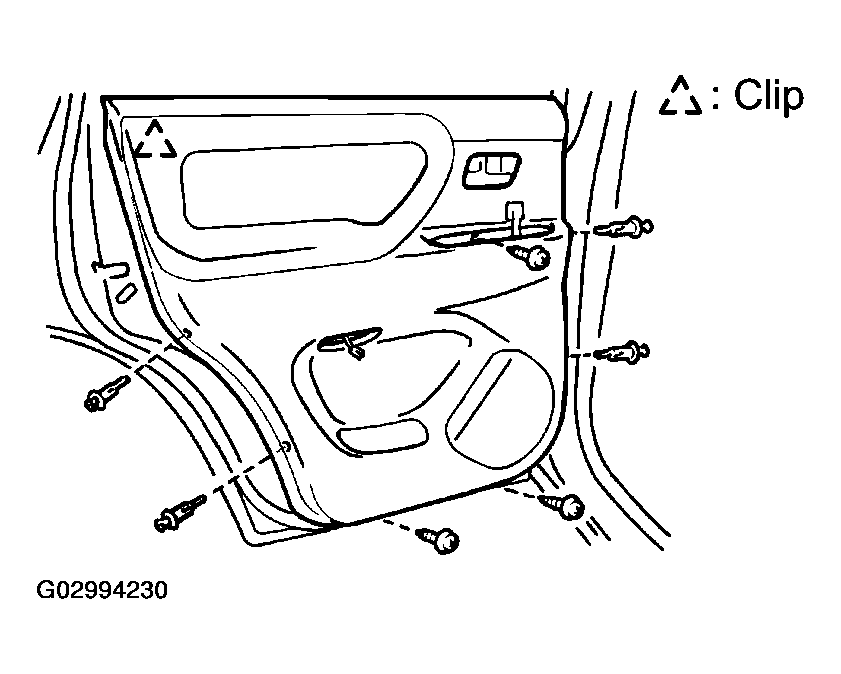

1. Remove the 3 screws and the 4 clips.
2. Insert a screwdriver between the door and the door trim to pry the trim.
   NOTE: Be careful not to damage the door and the door trim.

   HINT:

   Tape up the screwdriver tip before use.

3. Pull the trim upward to remove it.

Fig 5: Removing Door Trim

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

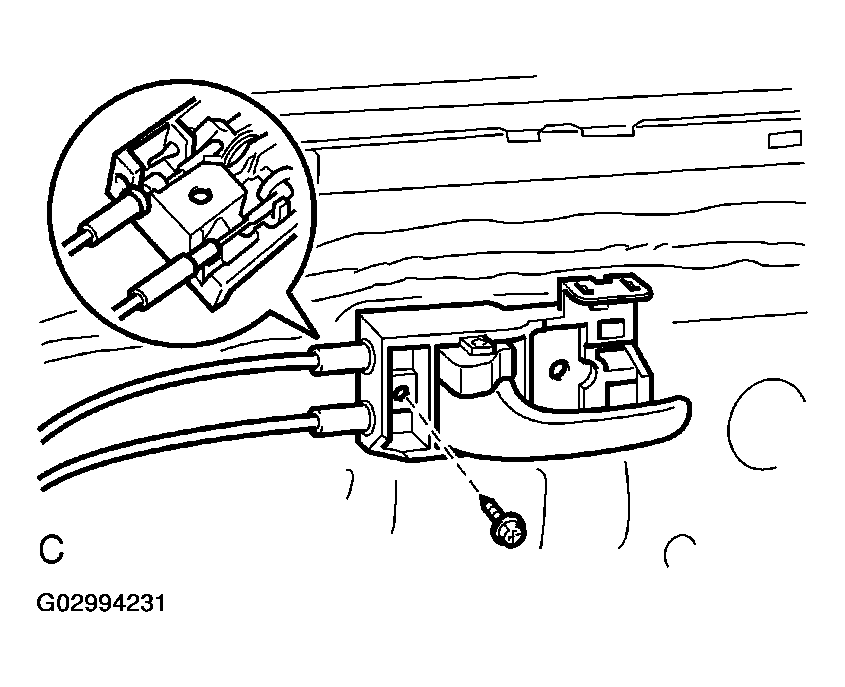

1. Remove the screw and the inside handle.
2. Disconnect the 2 control cables from the inside handle as shown in the illustration.

1. Remove the 3 screws and the speaker, then disconnect the connector.
2. w/ Mark Levinson:

   Remove the 4 screws and speaker, then disconnect the connector.

Fig 6: Removing Inside Handle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

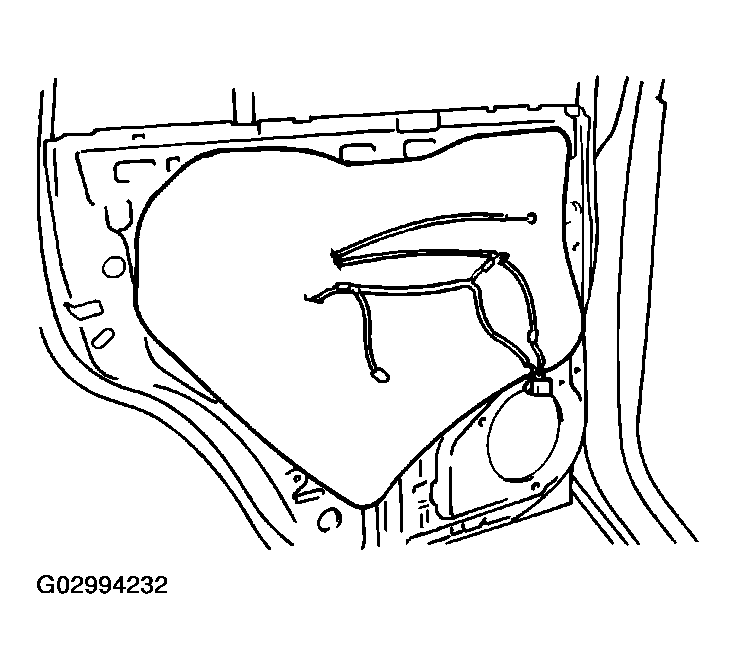

1. Remove the clamps and the wire harness.
2. Remove the service hole cover.

HINT:

At the time of reassembly, bring out the 2 control cables and the wire harness through the service hole cover.

Fig 7: Removing Service Hole Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

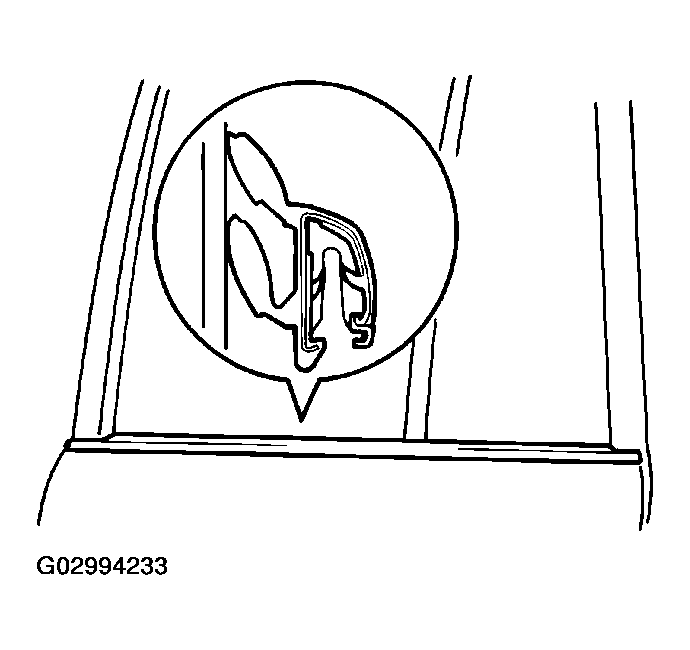

Using a scraper, remove the door belt moulding.

HINT:

Tape up the scraper tip before use.

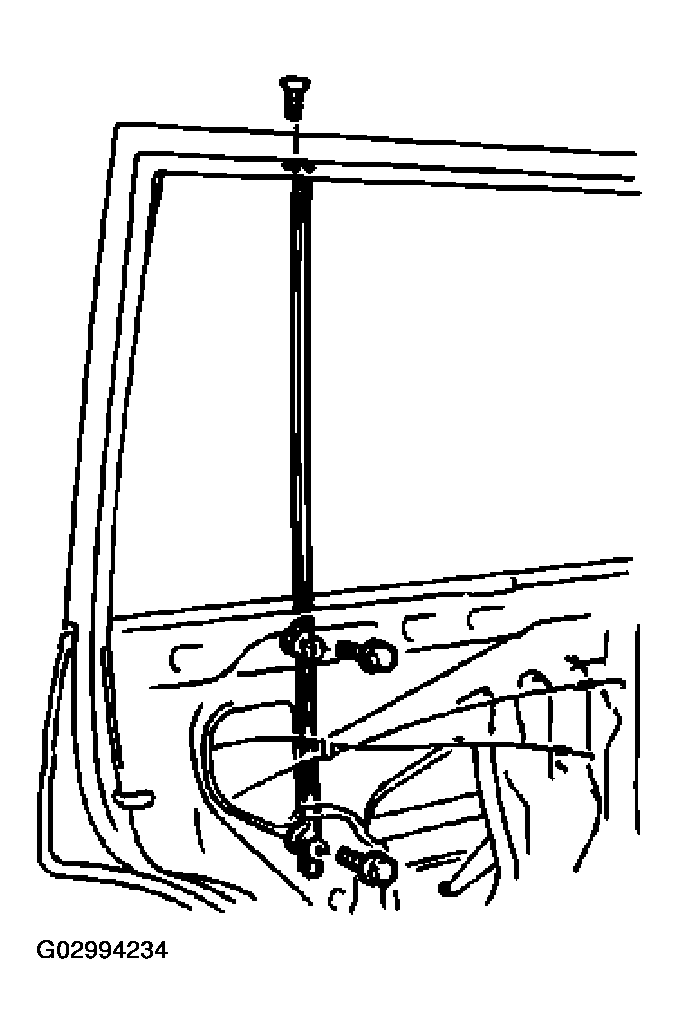

Remove the 2 bolts, the screw and the division bar.

Disconnect the glass from the regulator arm, and remove the door glass by pulling it upward.

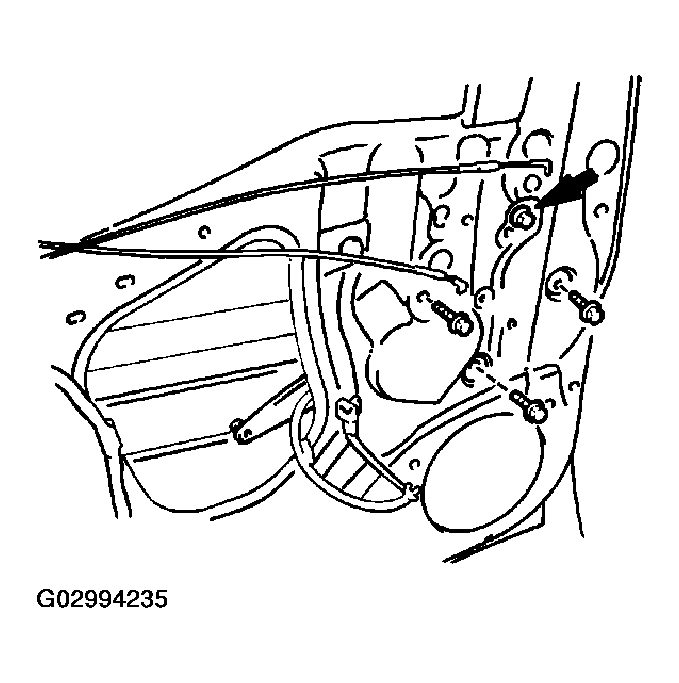

1. Disconnect the connector, then remove the 3 bolts.

   Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

2. Loosen the bolt and the window regulator.

   Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

HINT:

Remove the regulator through the service hole.

Fig 10: Removing Window Regulator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

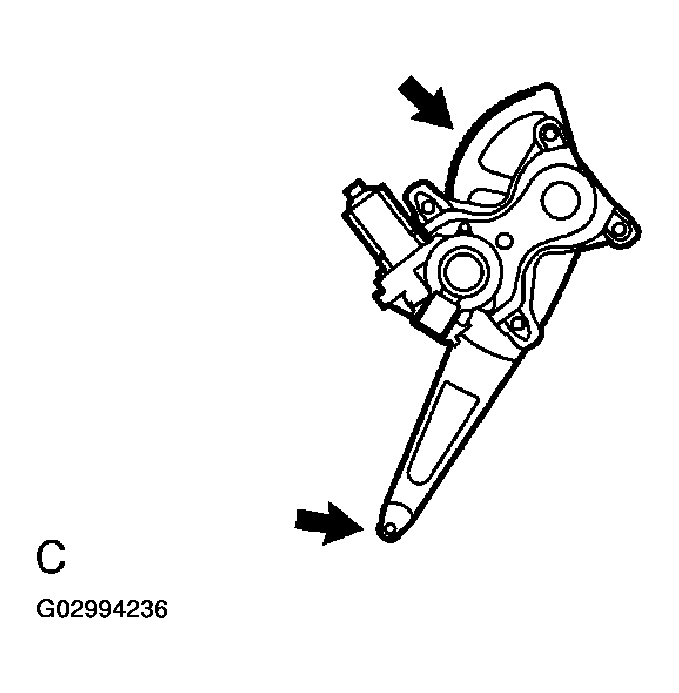

HINT:

At the time of reassembly, apply MP grease to the window regulator.

Fig 11: Identifying Location Of Window Regulator For Applying Grease

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

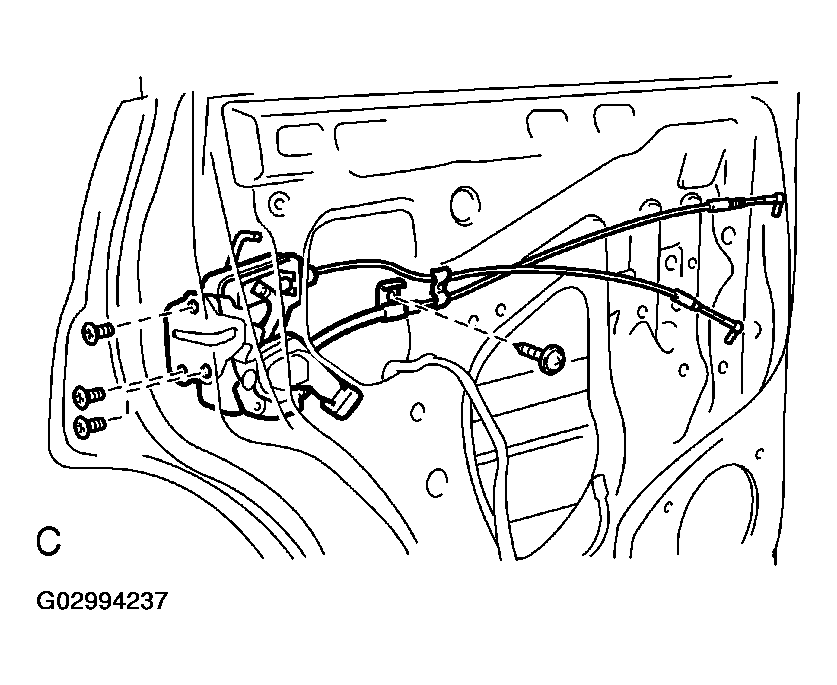

1. Remove the screw.
2. Disconnect the connector.
3. Disconnect the link from the outside handle.
4. Using a Torx wrench, remove the 3 screws and the door lock.

   Torx wrench: T30 (Part No. 09042-00010 or locally manufactured tool)

   Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

Fig 12: Removing Door Lock

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Remove the door lock through the service hole.

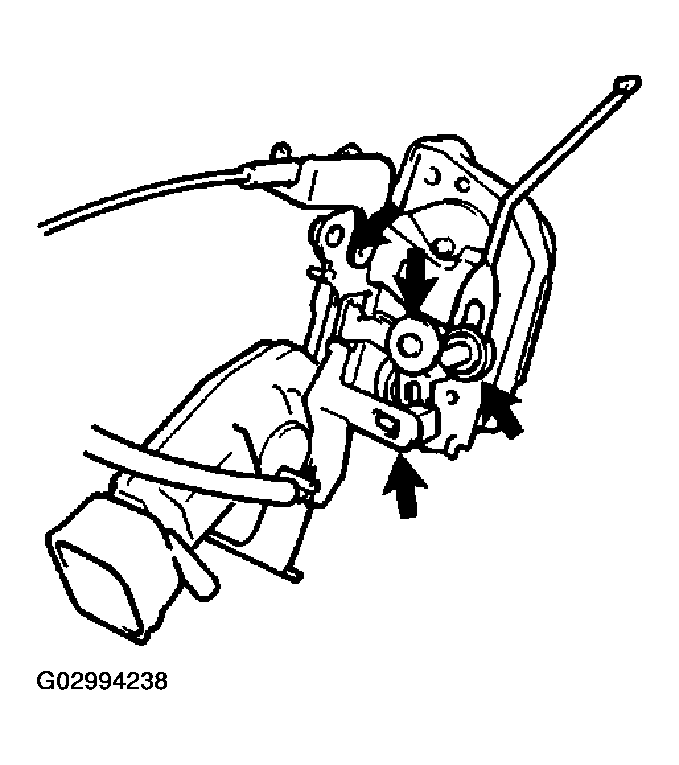

HINT:

At the time of reassembly:

• Apply adhesive to the 3 screws.

  Part No. 08833-00070, THREE BOND 1324 or equivalent.

• Remove the protector, and apply MP grease to the sliding and rotating parts of the door lock.

Remove the 2 bolts and the outside handle.

Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

Fig 13: Removing Outside Handle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
