Oil Pump
>>
Components
Oil Pump: Components
Fig 1: Exploded View Of Lubrication Oil Pump Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Lubrication Oil Pump Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

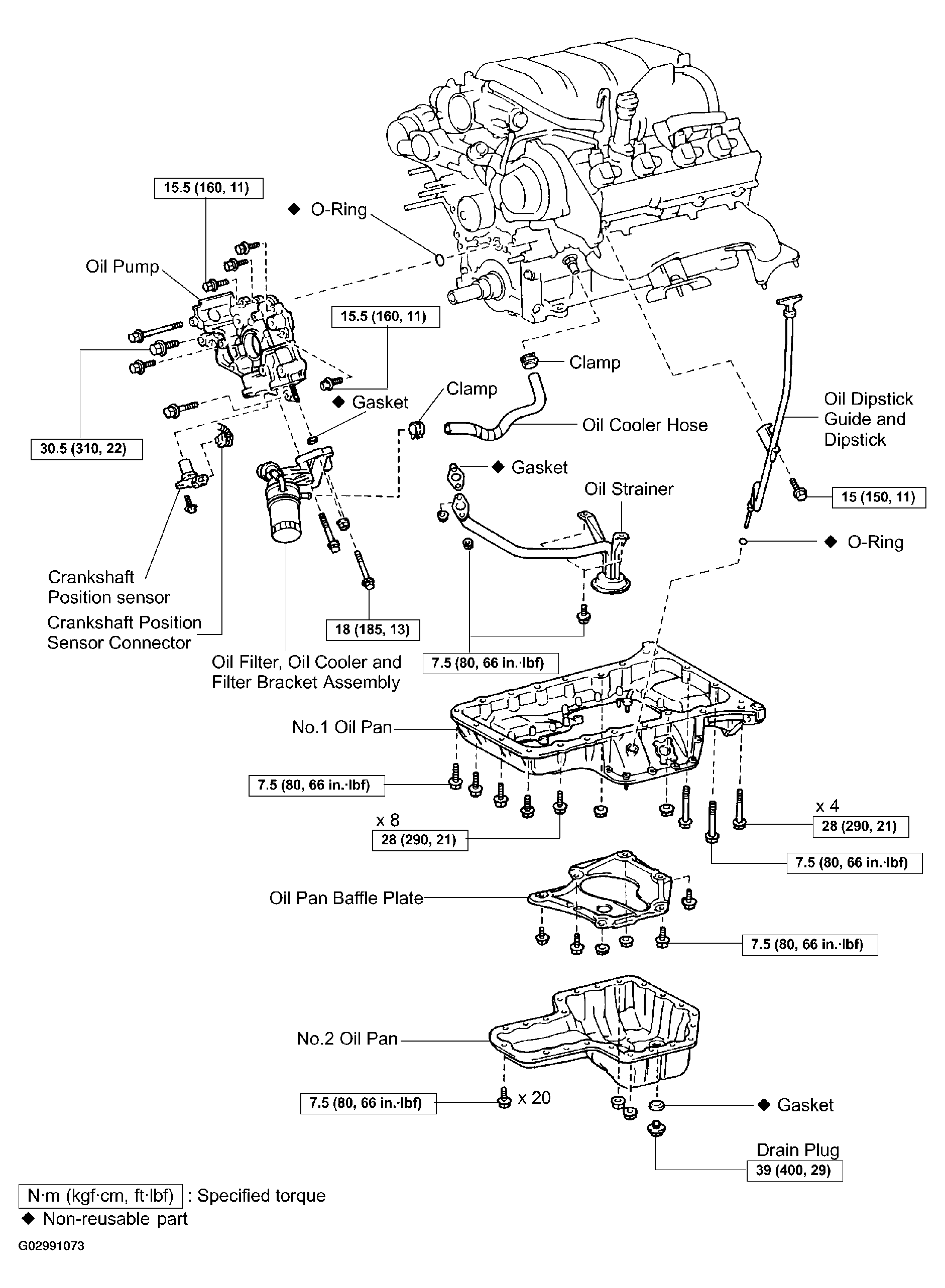

Fig 3: Exploded View Of Lubrication Oil Pump Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

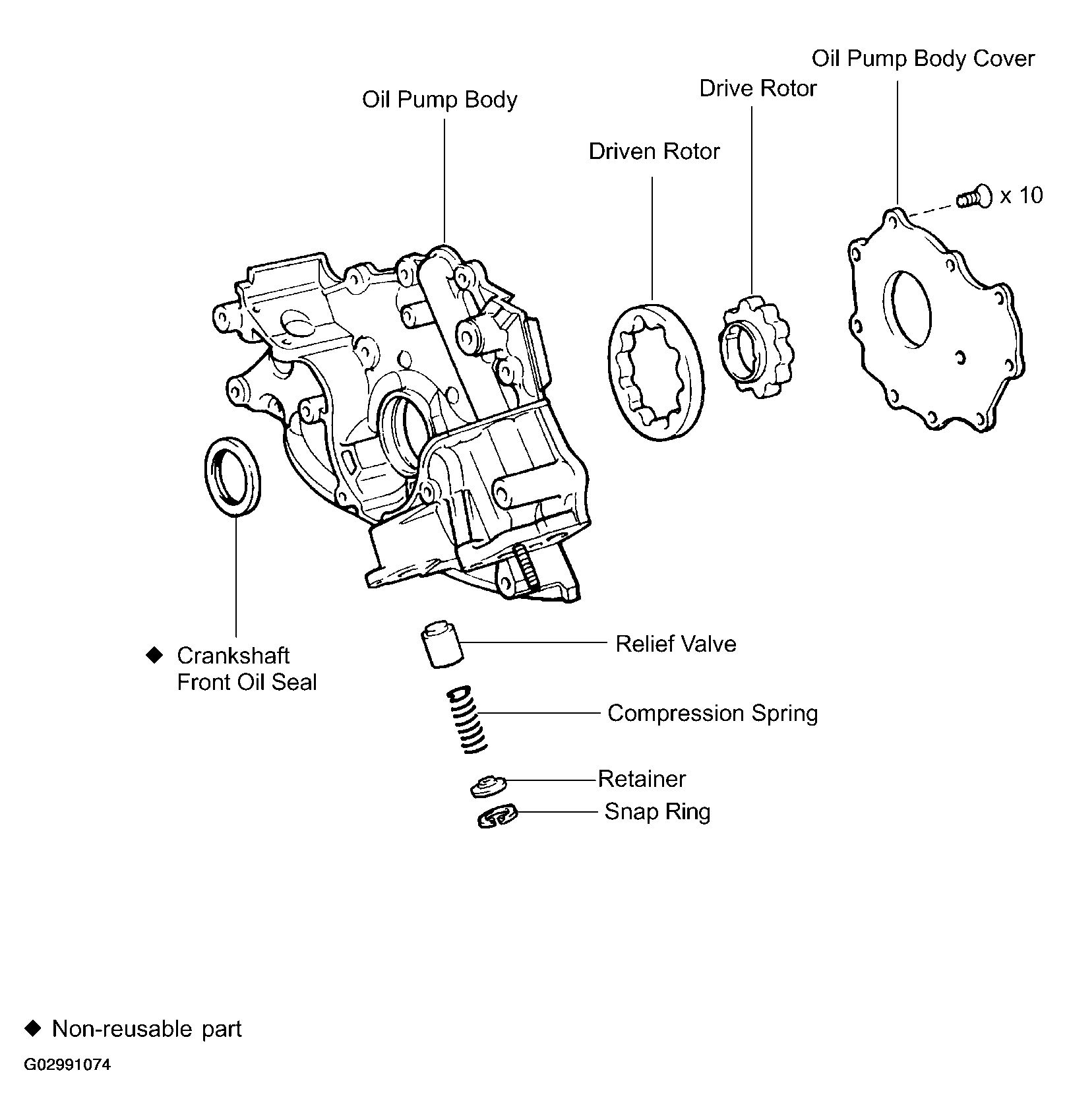

Fig 4: Exploded View Of Lubrication Oil Pump Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
