Home >> Lexus >> 2005 >> LX 470 >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> SFI >> Accelerator Pedal Position Sensor >> Components

Accelerator Pedal Position Sensor: Components

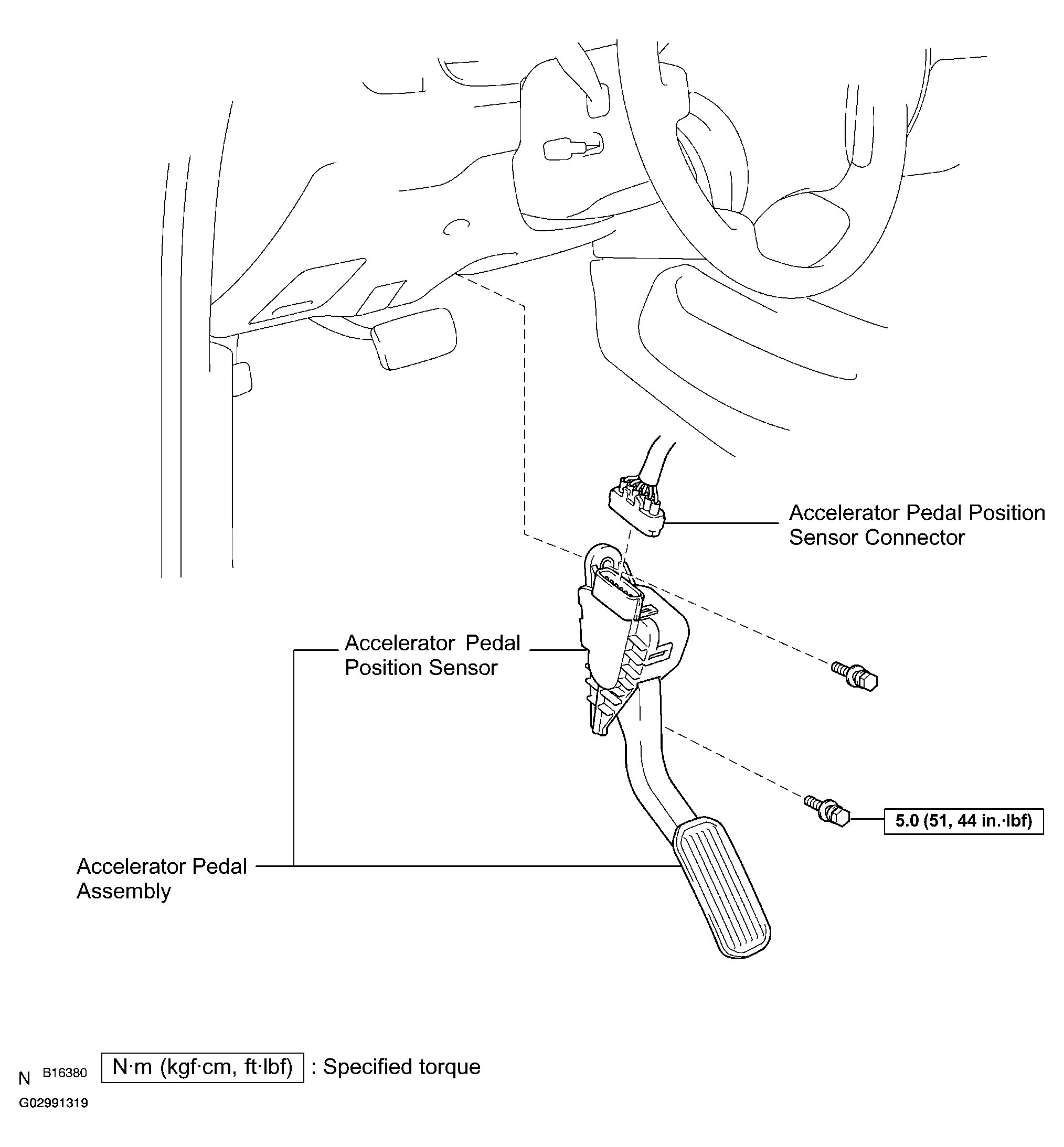

Fig 1: Identifying Accelerator Pedal Position Sensor Components
G02991319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
