Fuel Pump: Components

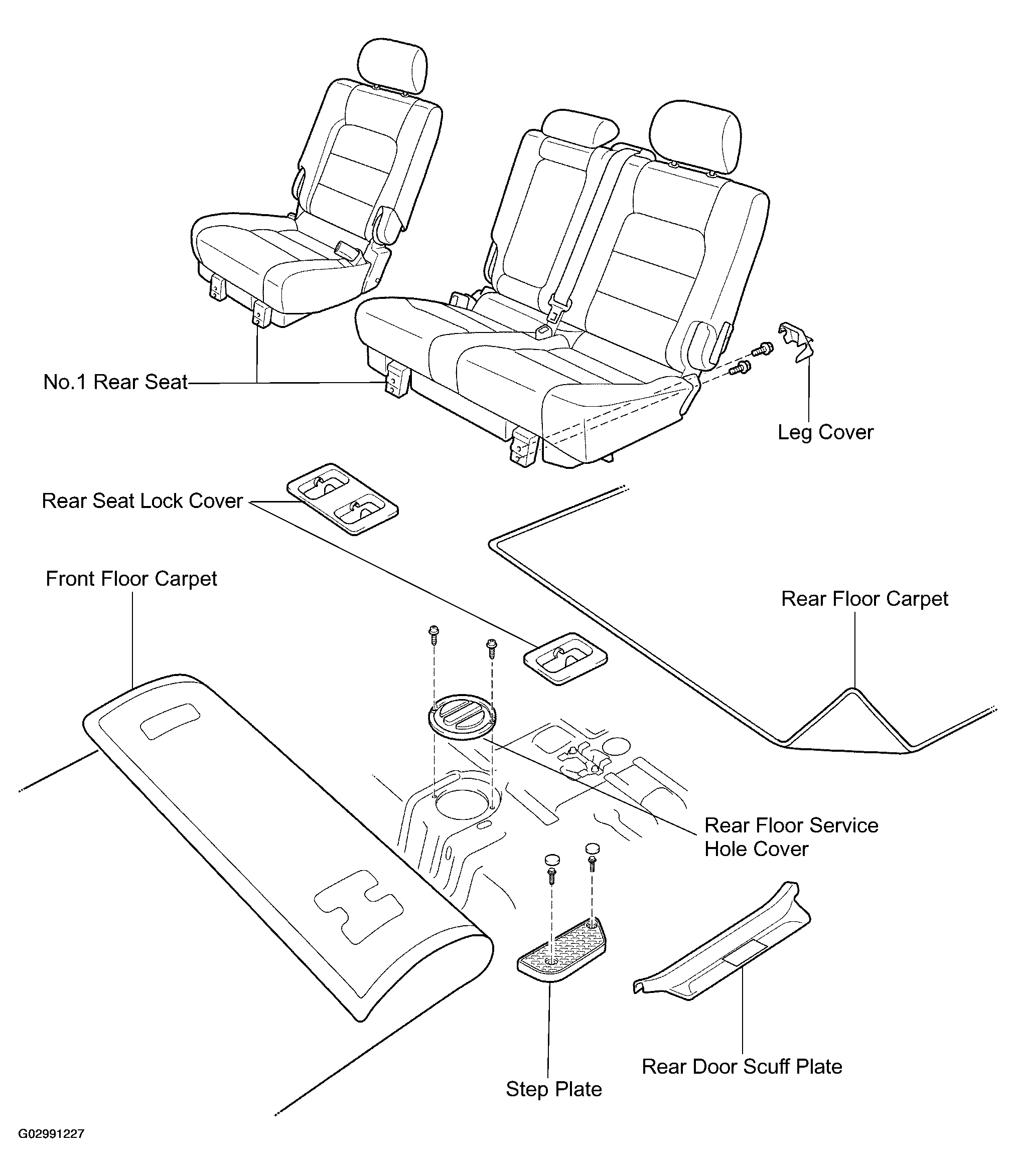

Fig 1: Identifying SFI Components (1 Of 3)
G02991227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

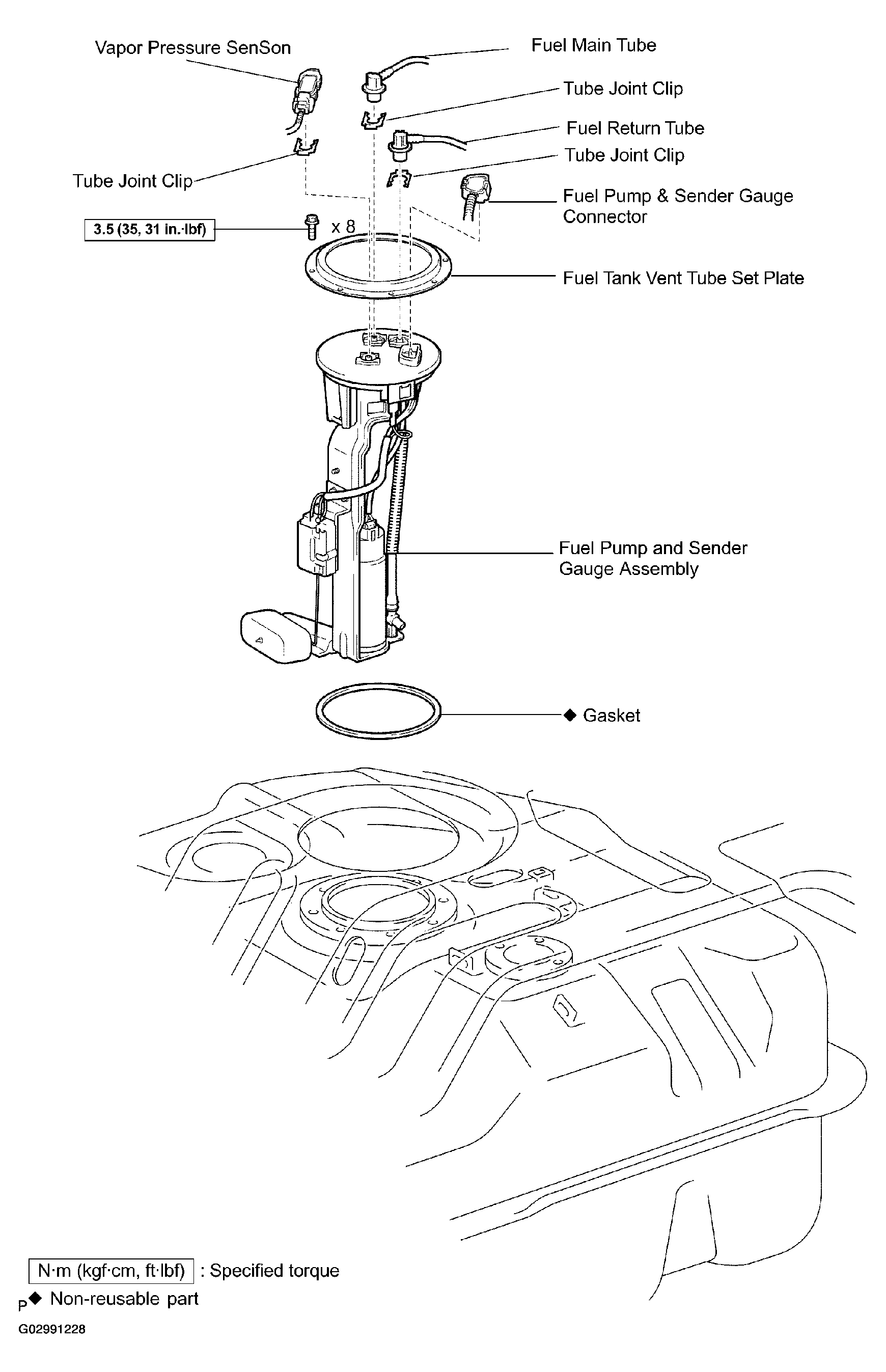

Fig 2: Identifying SFI Components (2 Of 3)
G02991228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

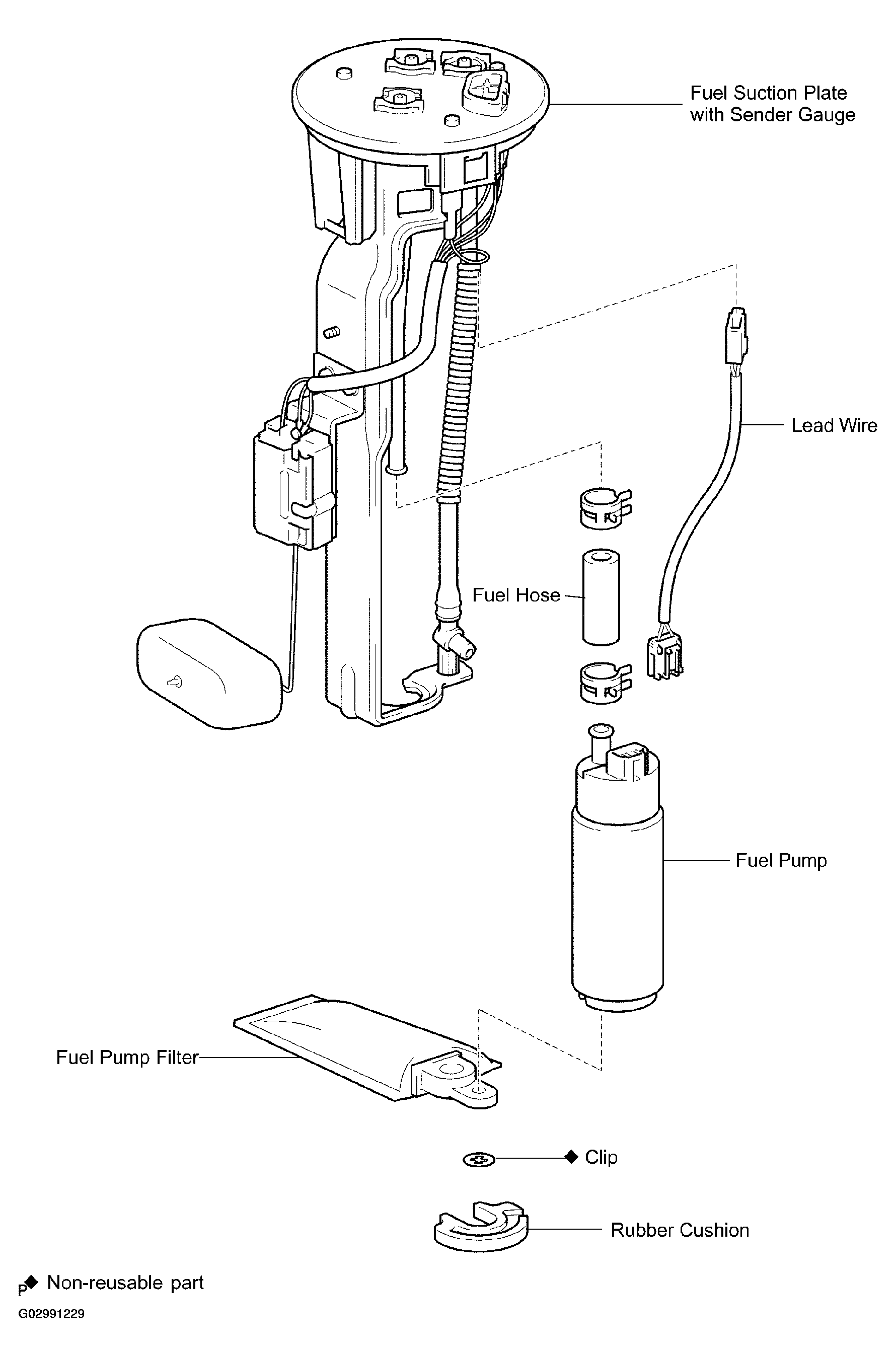

Fig 3: Identifying SFI Components (3 Of 3)
G02991229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
