Front Axle Hub: Components

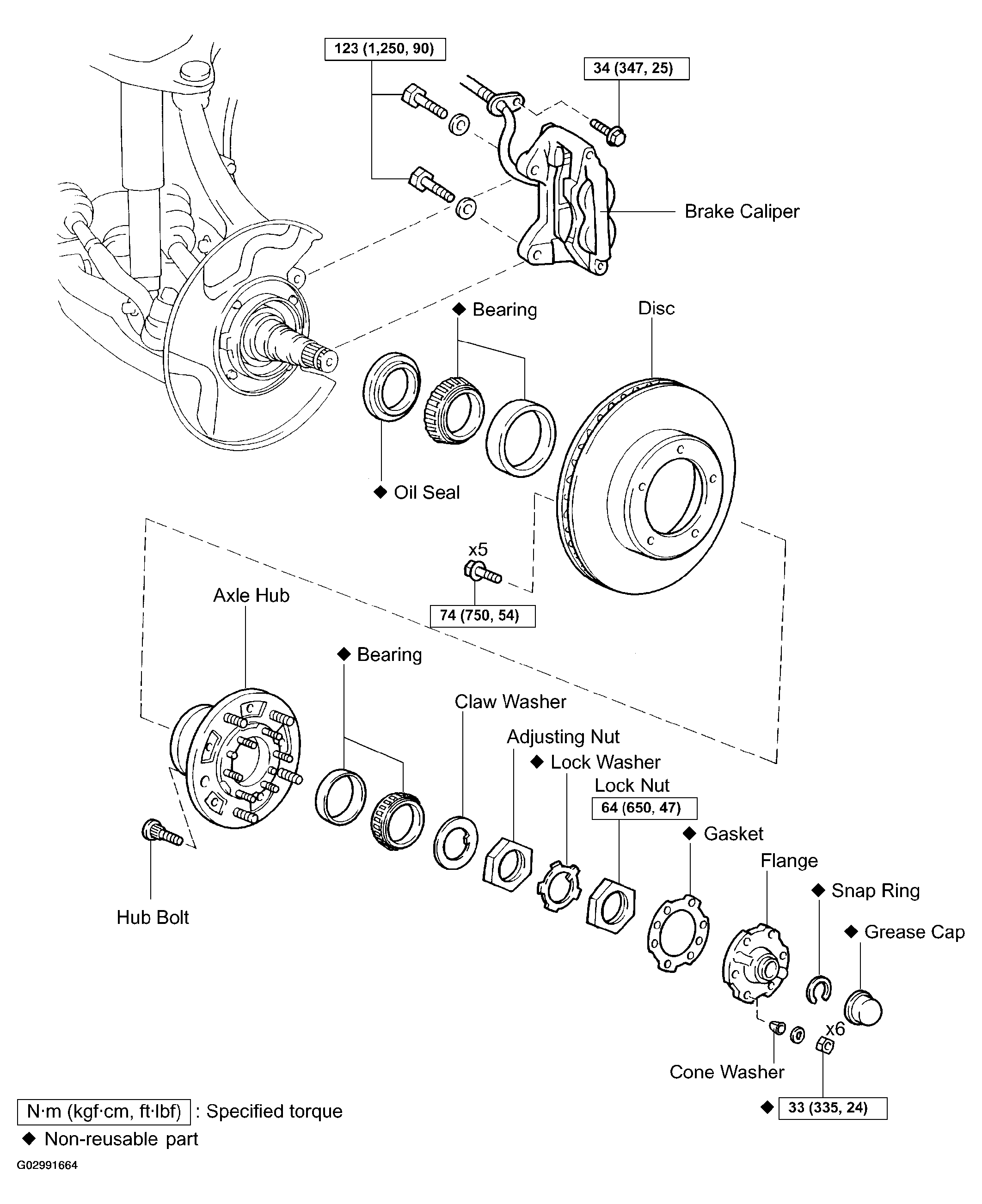

Fig 1: Exploded View Of Front Axle Hub With Torque Specifications
G02991664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
