Front Torsion Bar Spring: Components

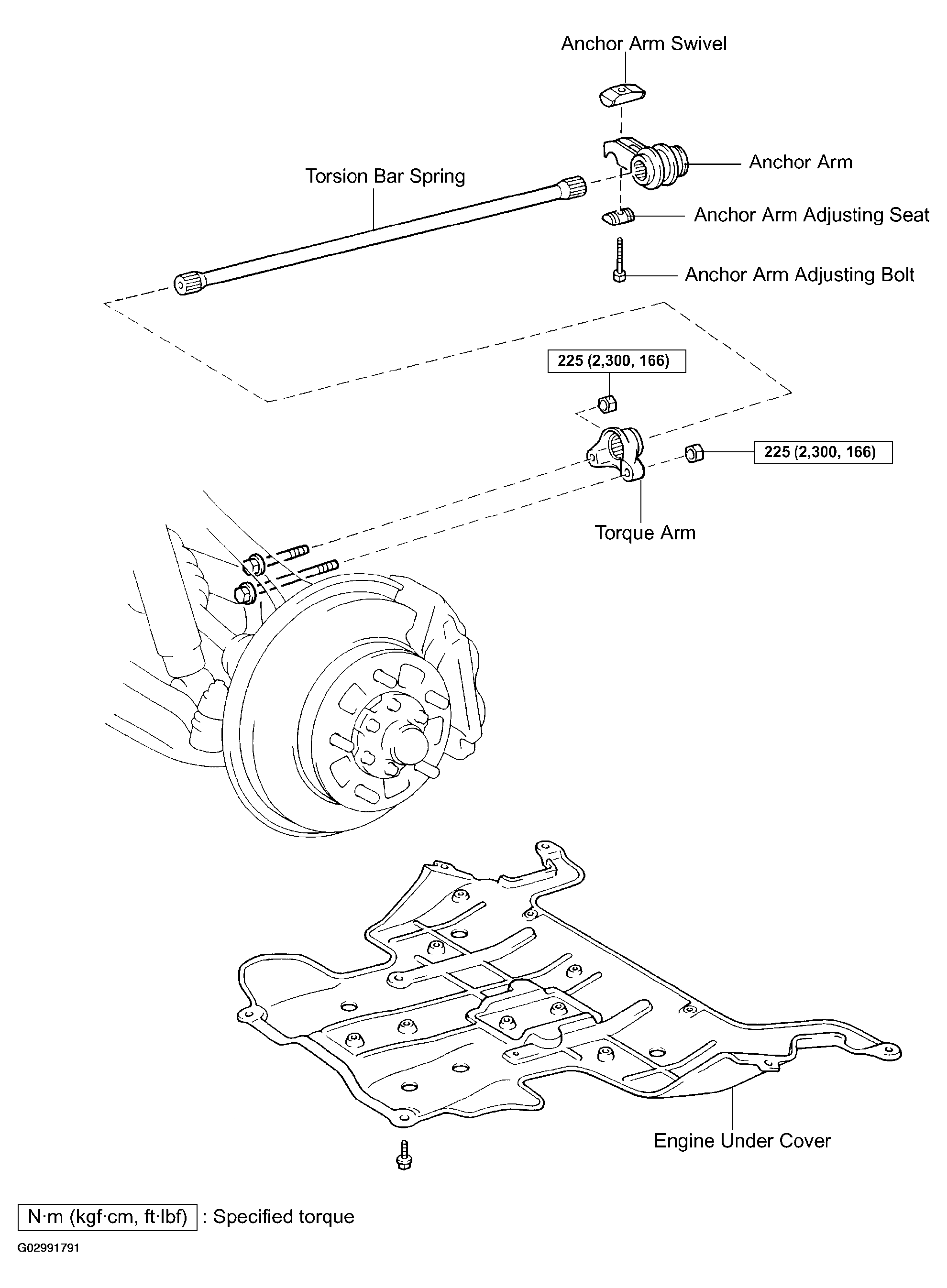

Fig 1: Exploded View Of Front Torsion Bar Spring With Torque Specifications

G02991791

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
