Home >> Lexus >> 2005 >> LX 470 >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer >> Transfer Assembly >> Components

Transfer Assembly: Components

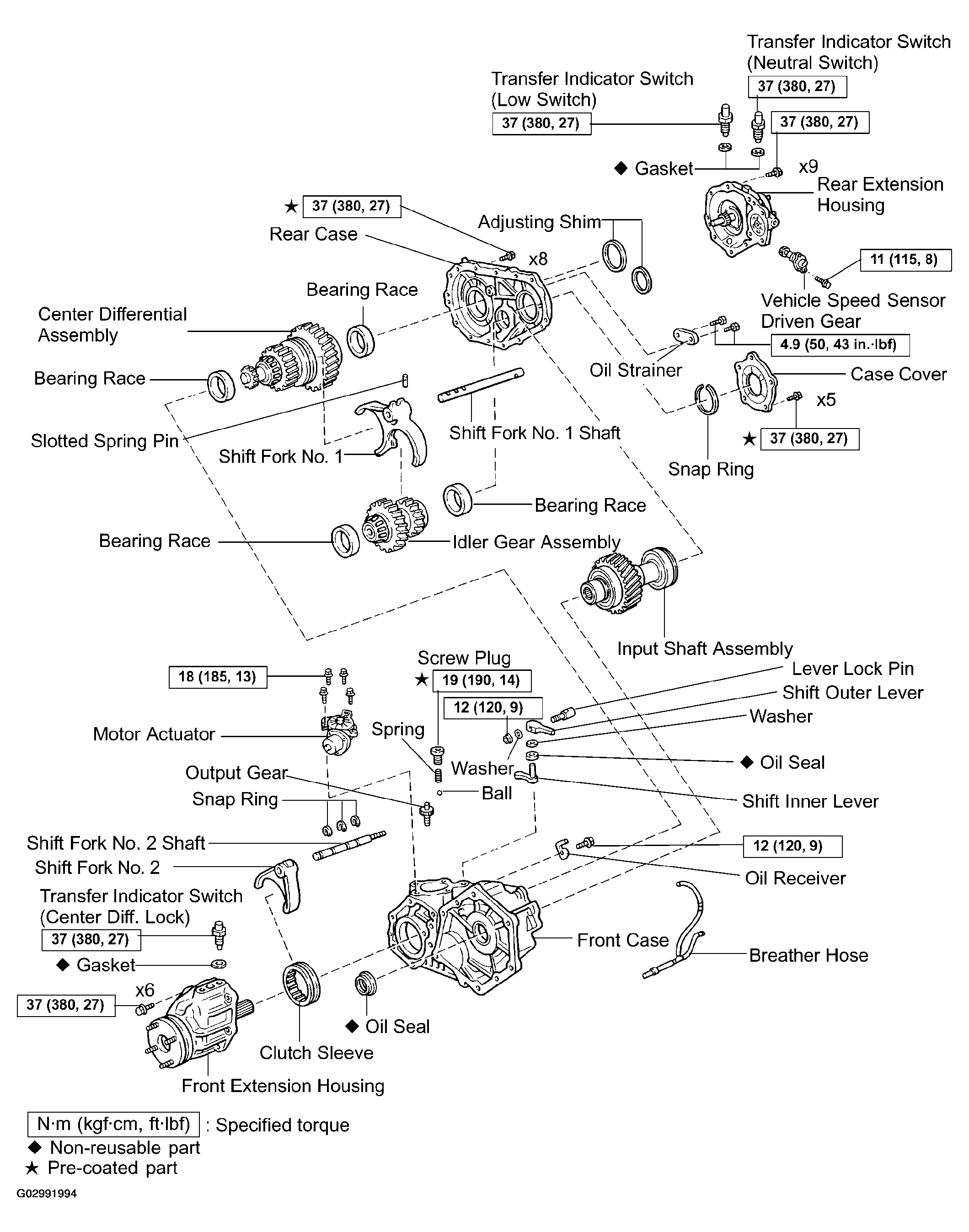

Fig 1: Replacement Components Transfer Assembly With Torque Specifications
G02991994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
