Home >> Lexus >> 2005 >> LX 470 >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer >> Transfer Shift Lever Assembly >> Components

Transfer Shift Lever Assembly: Components

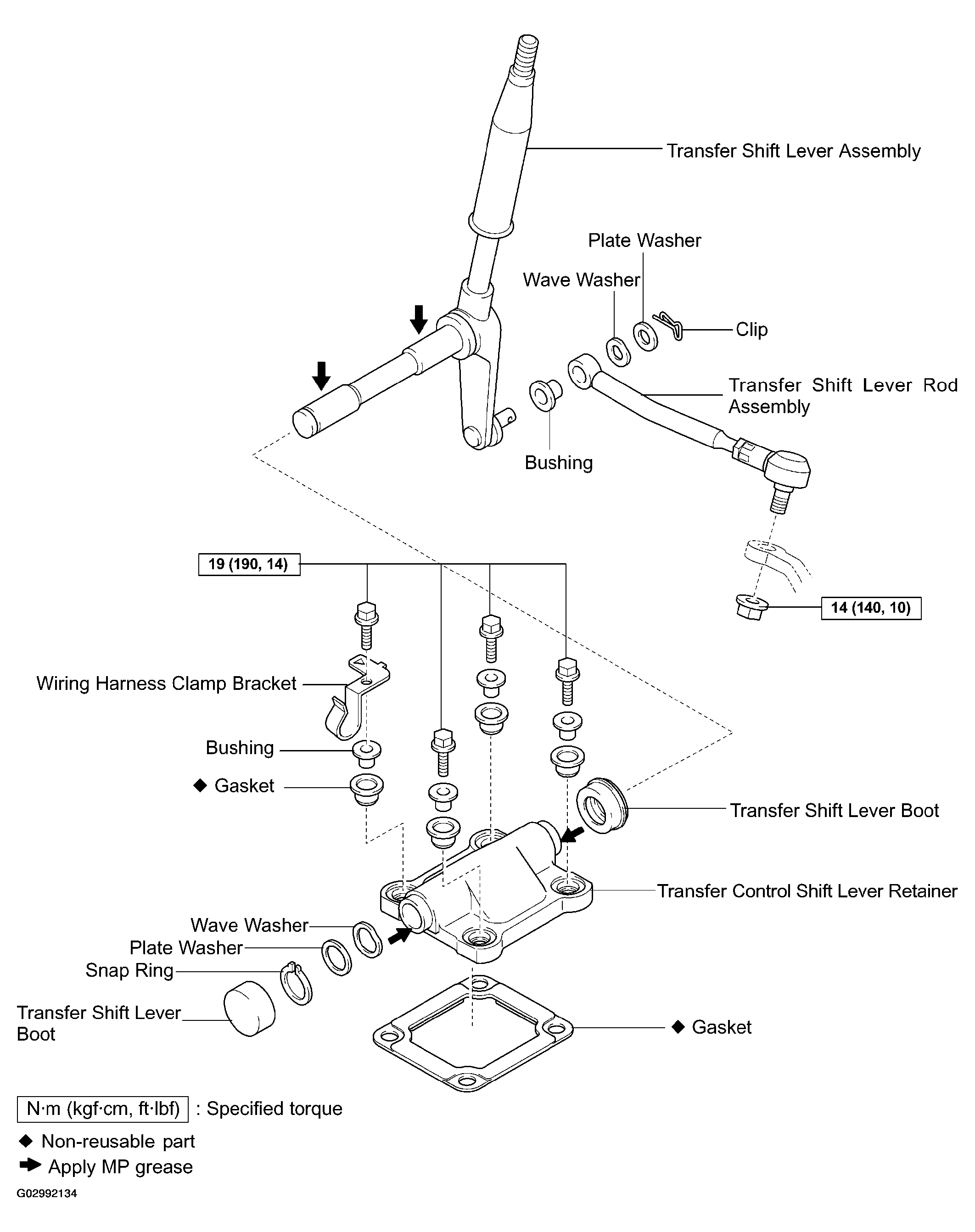

Fig 1: Replacement Components Transfer Shift Lever Assembly With Torque Specifications
G02992134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
