Home >> Lexus >> 2005 >> LX 470 >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer >> Transfer Unit >> Components

Transfer Unit: Components

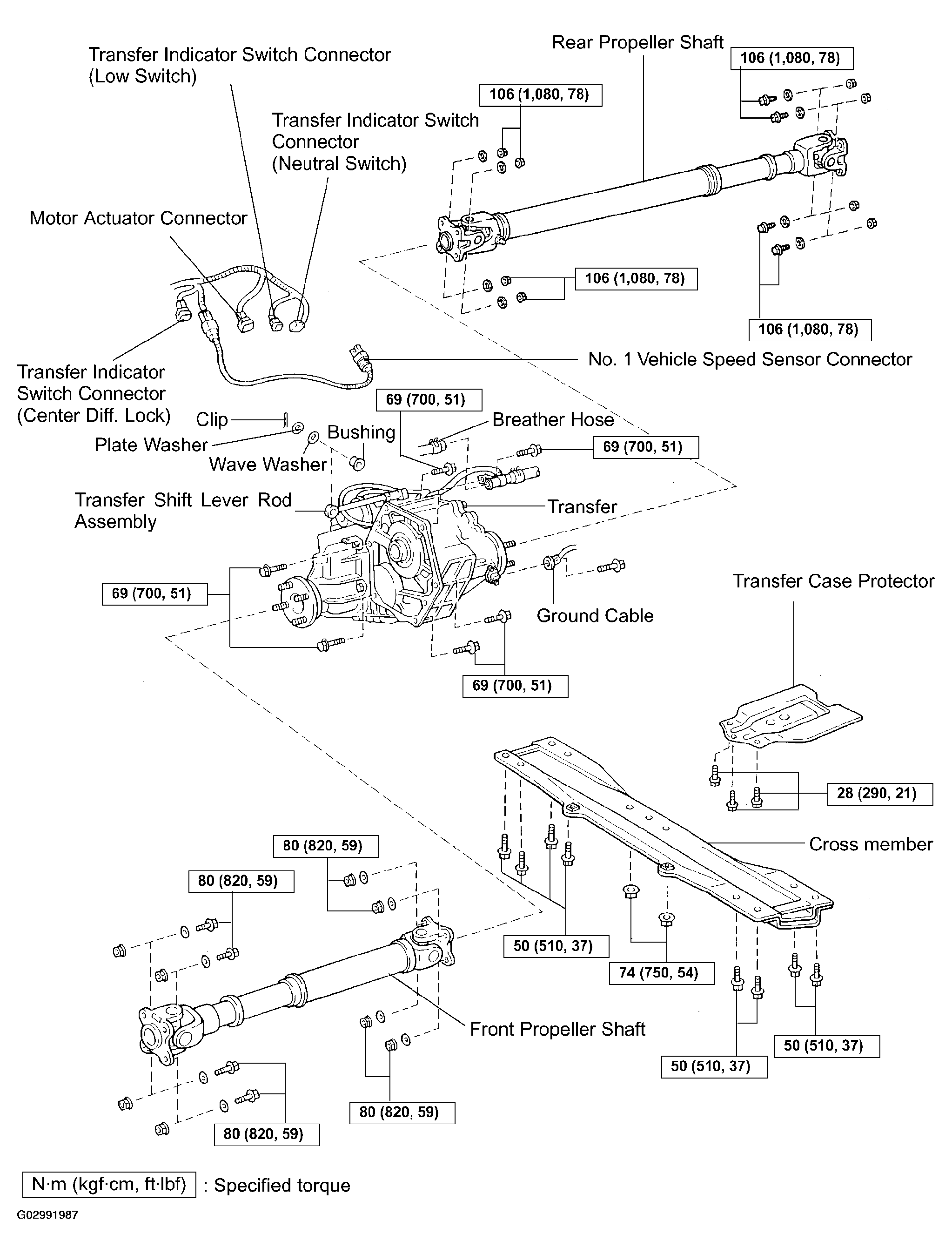

Fig 1: Replacement Components Transfer Unit With Torque Specifications

G02991987

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
