Home >> Lexus >> 2005 >> RX 330 FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System - Diagnostics >> Location

Power Window Control System - Diagnostics: Location

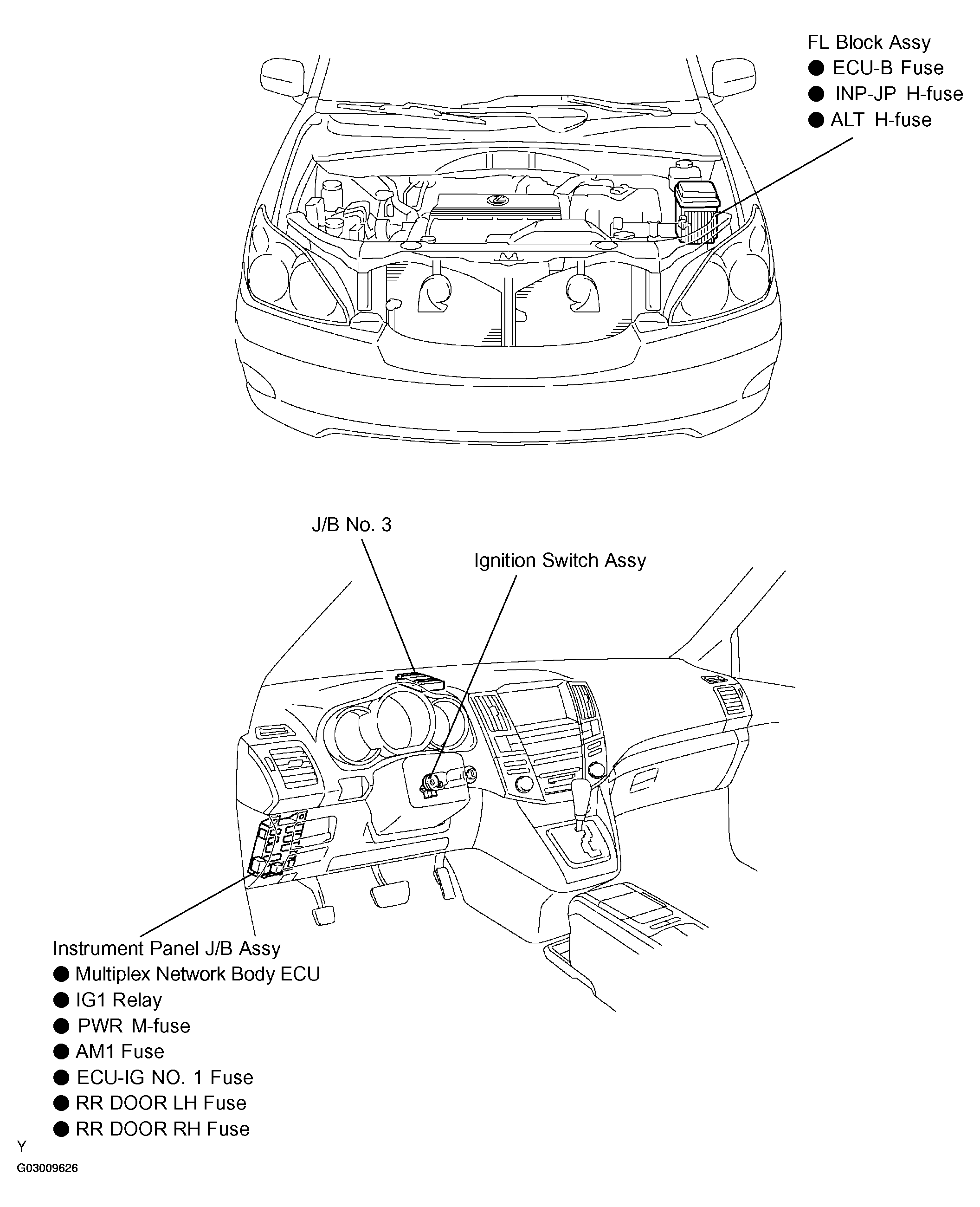

Fig 1: Identifying Power Window Control System Components And Replacements Location (1 Of 2)
G03009626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

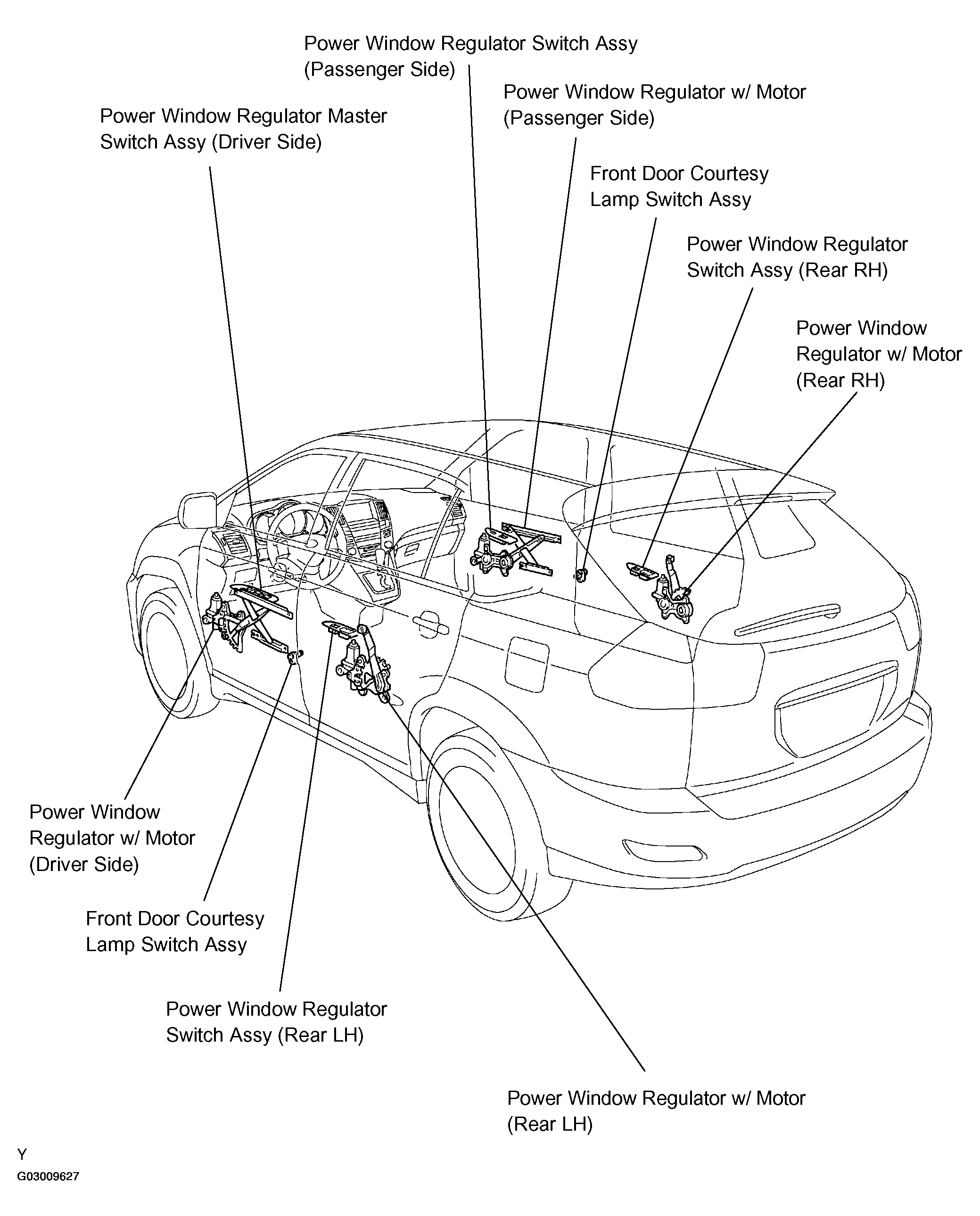

Fig 2: Identifying Power Window Control System Components And Replacements Location (2 Of 2)
G03009627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
