Home >> Lexus >> 2005 >> RX 330 FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS/Mirror >> Window Defogger System >> Location

Window Defogger System: Location

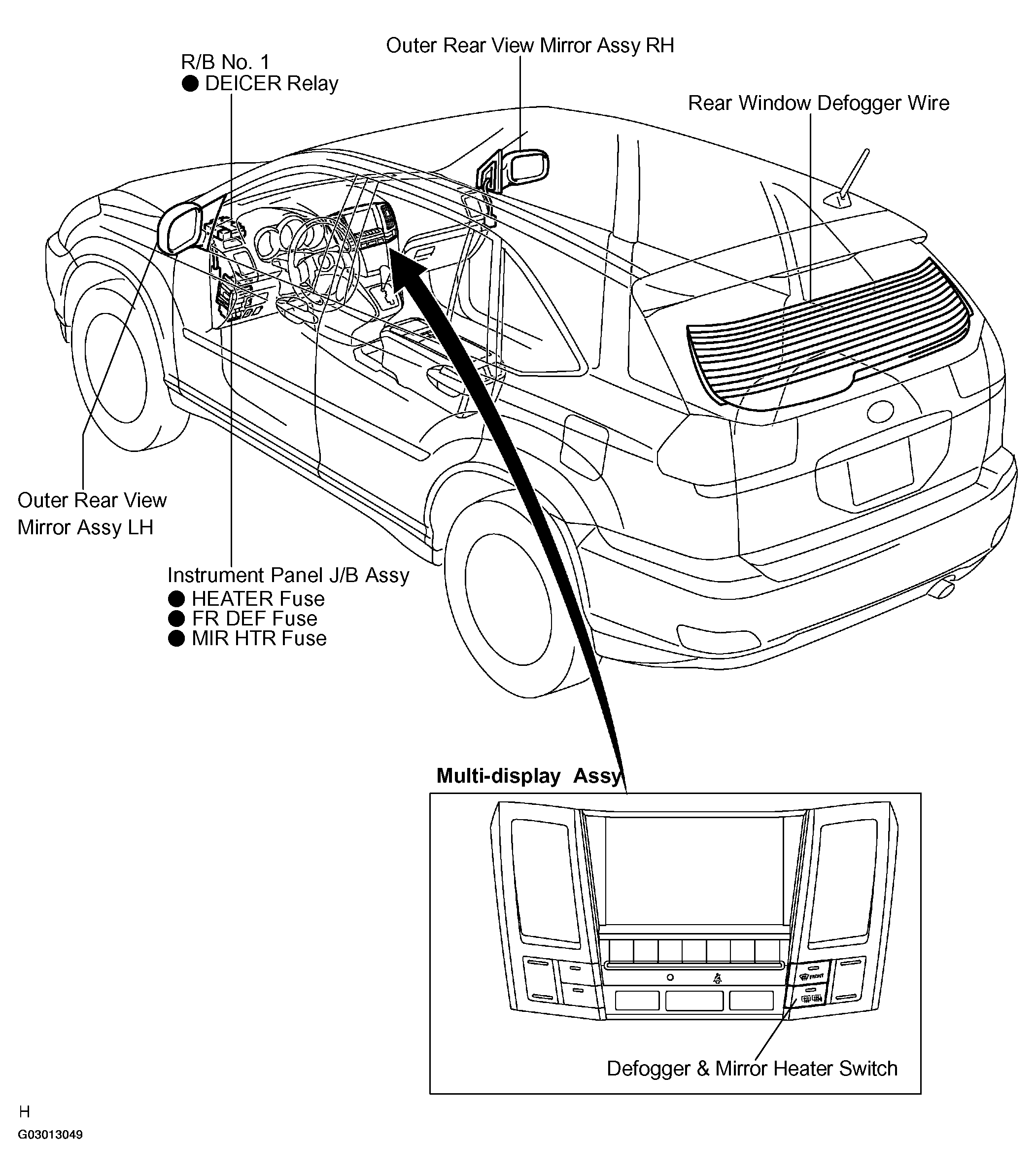

Fig 1: Identifying Window Defogger System Component (1 Of 2)
G03013049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

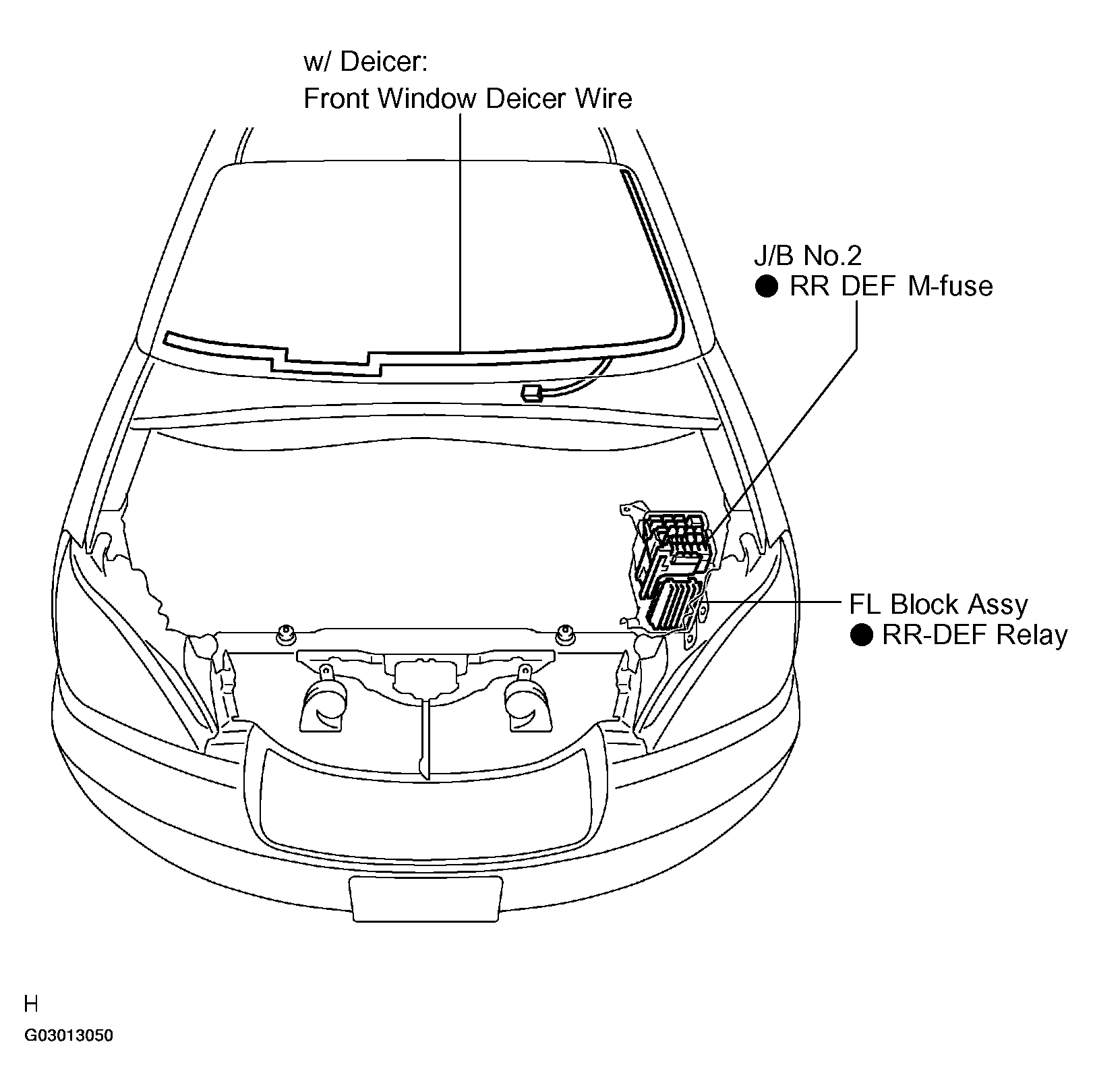

Fig 2: Identifying Window Defogger System Component (2 Of 2)
G03013050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
