Home >> Lexus >> 2005 >> RX 330 FWD >> Repair and Diagnosis >> Suspension >> Suspension Control Systems >> Height Control Compressor ASSY >> Components

Height Control Compressor ASSY: Components

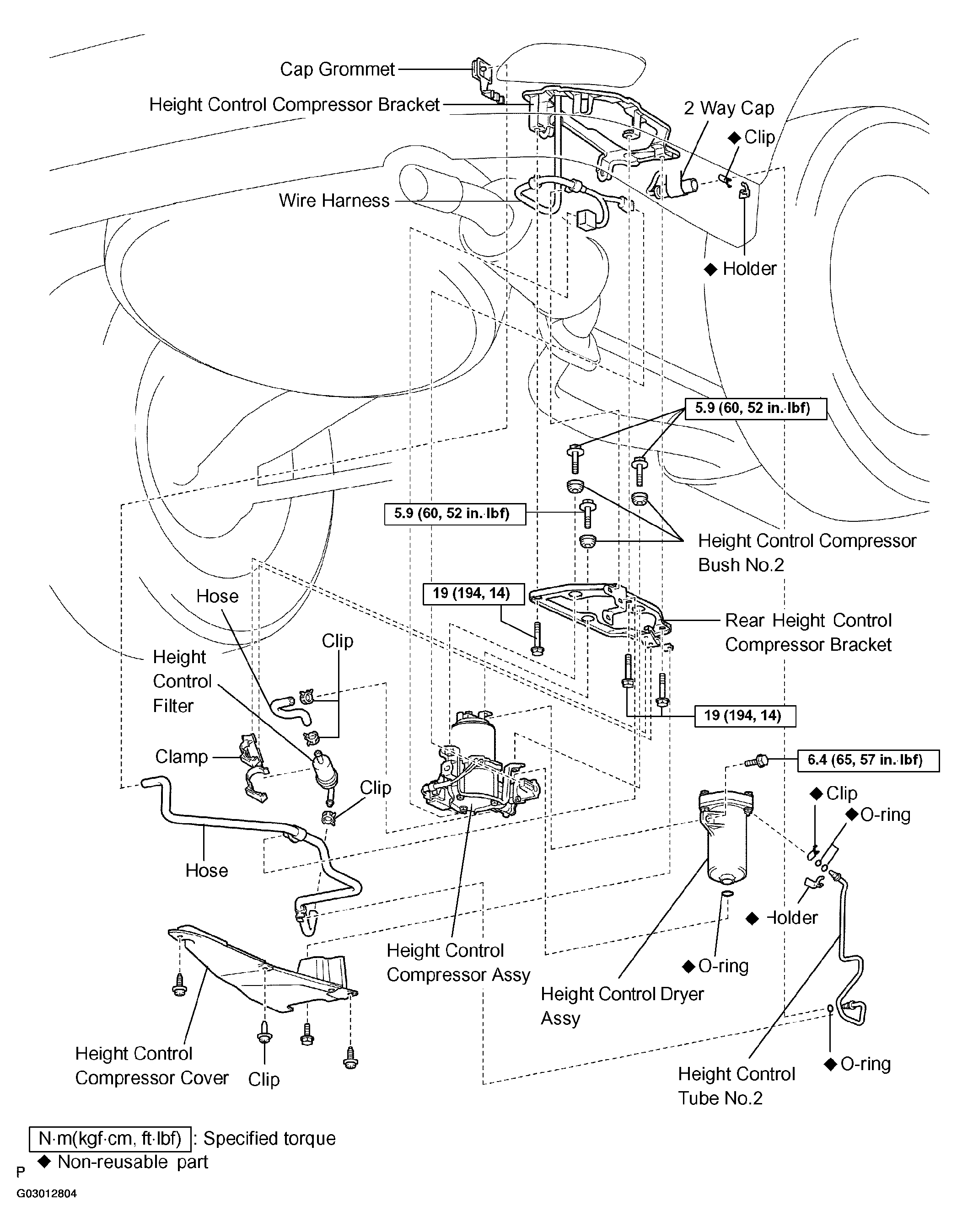

Fig 1: Identifying Height Control Compressor Assy Components And Replacements
G03012804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
