Home >> Lexus >> 2005 >> RX 330 FWD >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer >> Transfer (4WD) >> Components

Transfer (4WD): Components

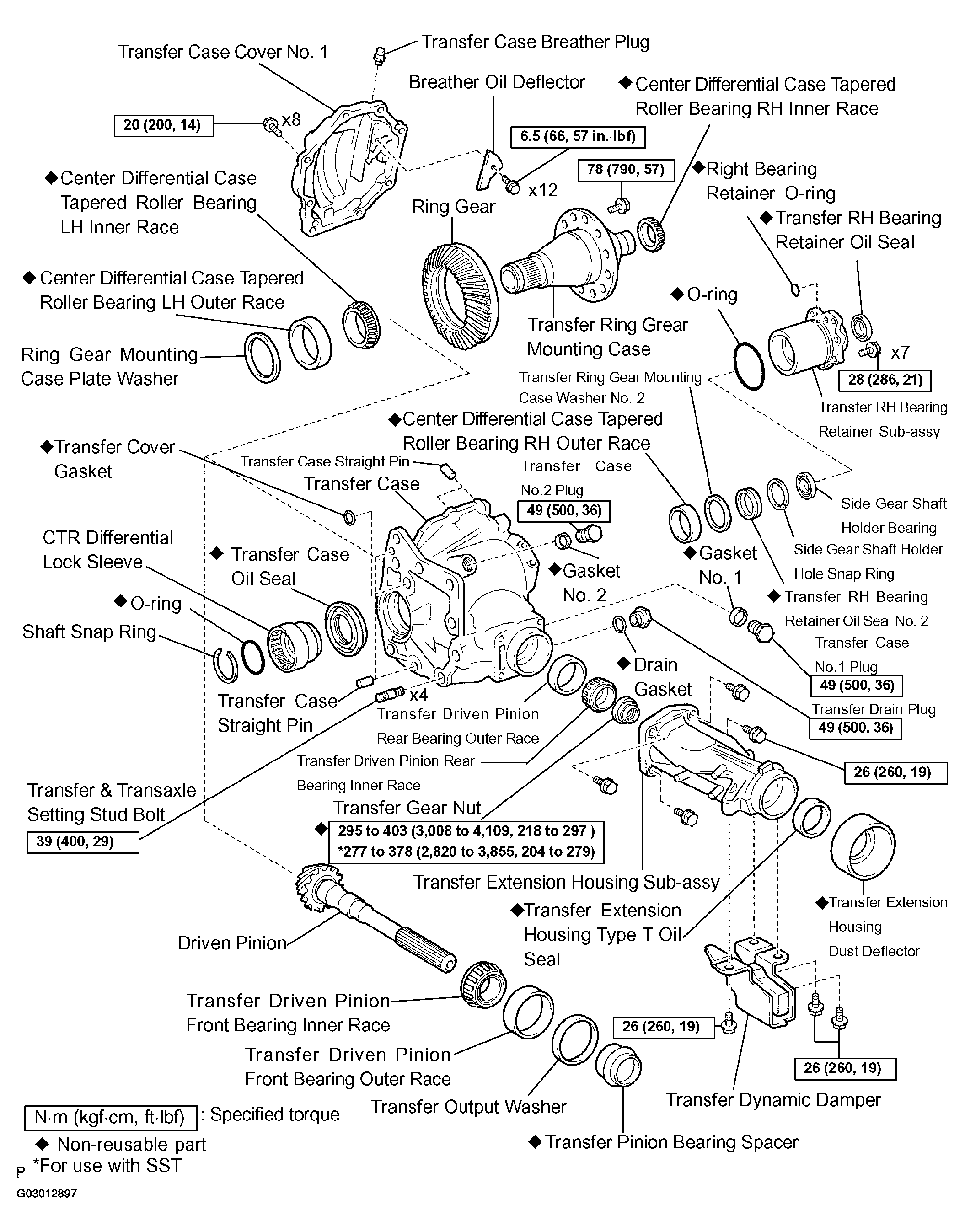

Fig 1: Identifying Transfer (4WD) Components
G03012897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
