Power Mirror Control System - Diagnostics
>>
Location
Power Mirror Control System - Diagnostics: Location

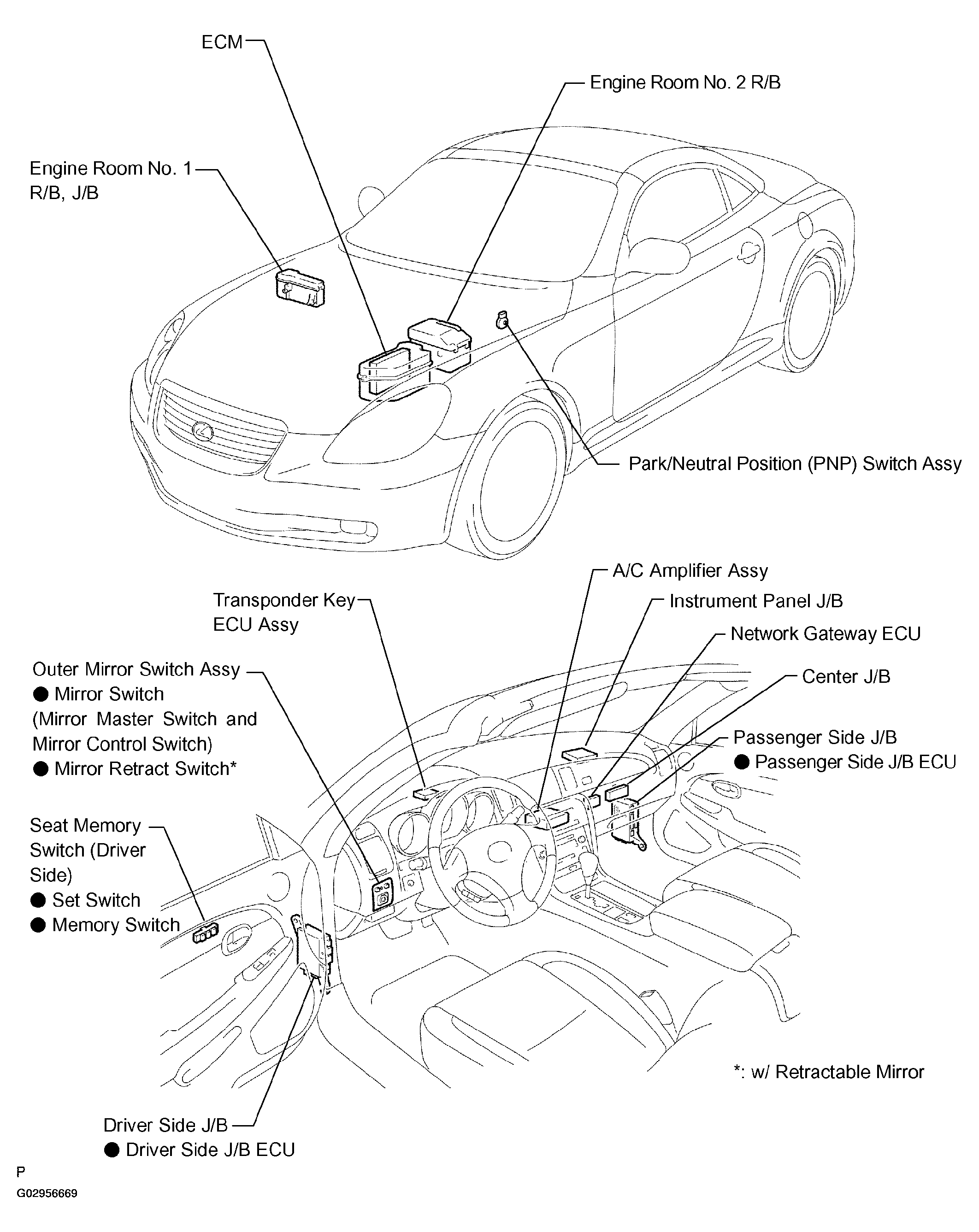

Fig 1: Locating Power Mirror Control System Components & Replacements (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

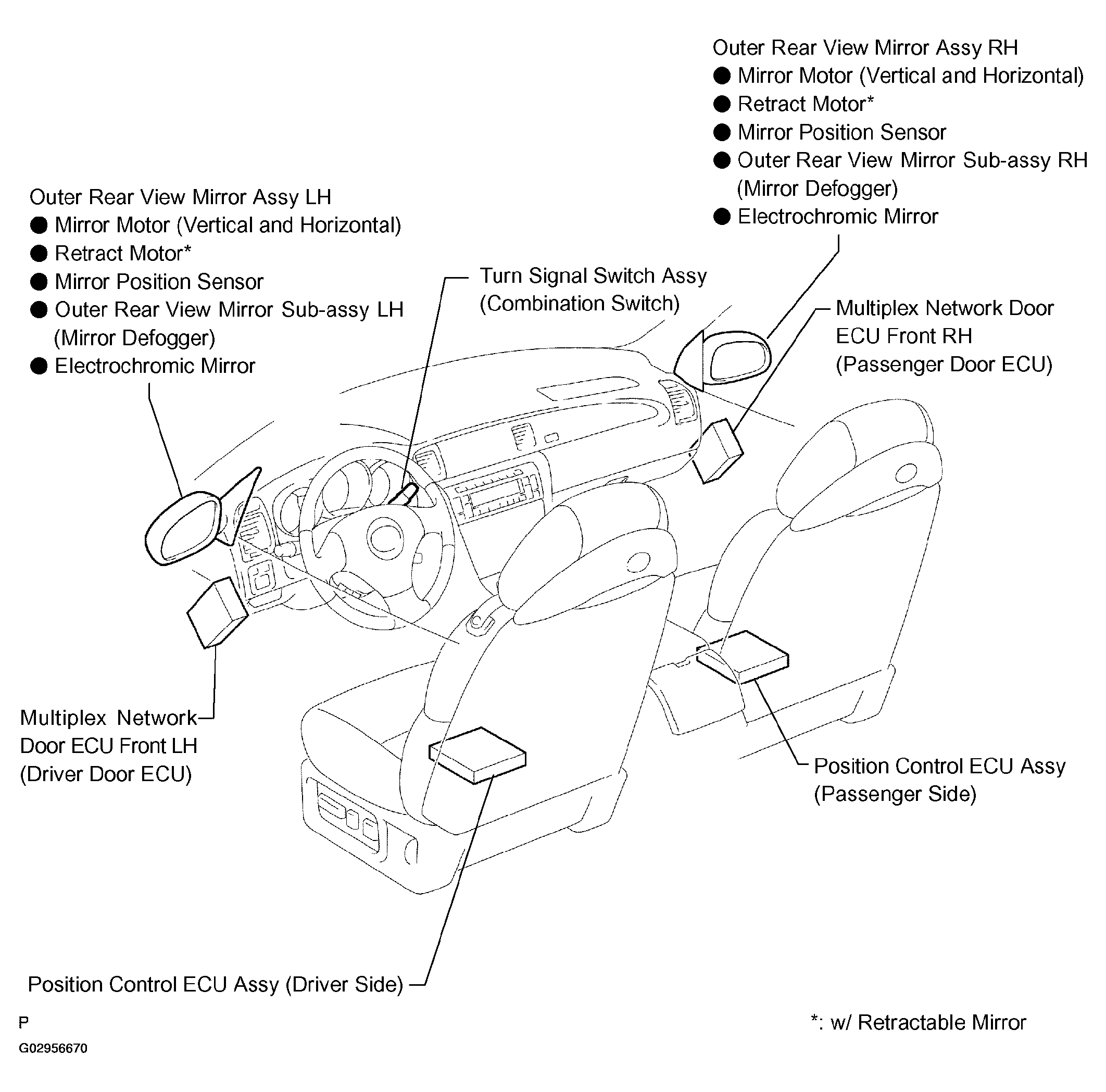

Fig 2: Locating Power Mirror Control System Components & Replacements (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
