Remote Up/Down Function Does Not Operate
>>
Wiring Diagram
Remote Up/Down Function Does Not Operate: Wiring Diagram

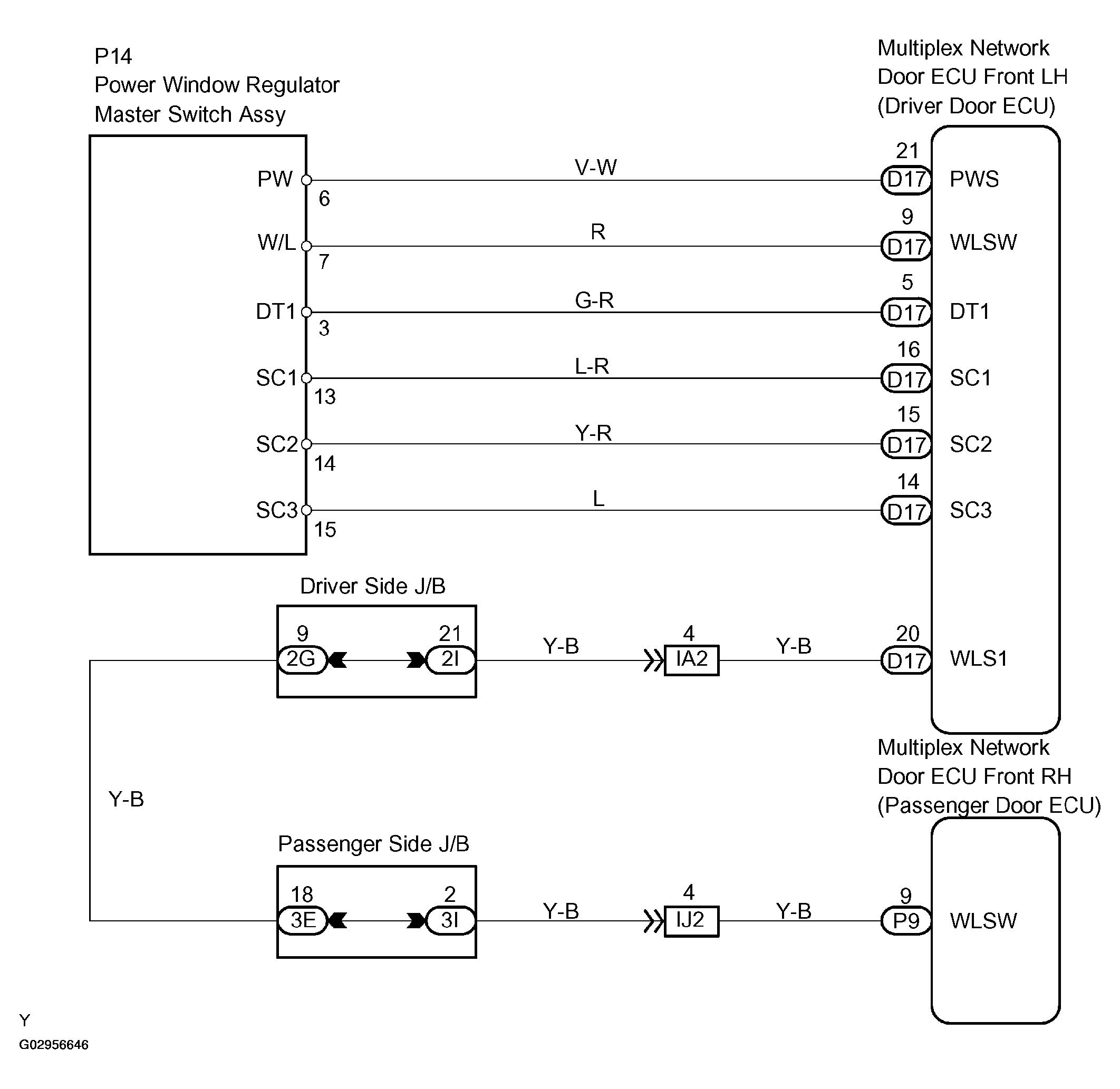

Fig 1: Remote Up/Down Function Does Not Operate Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
