Quarter Window ASSY: Components

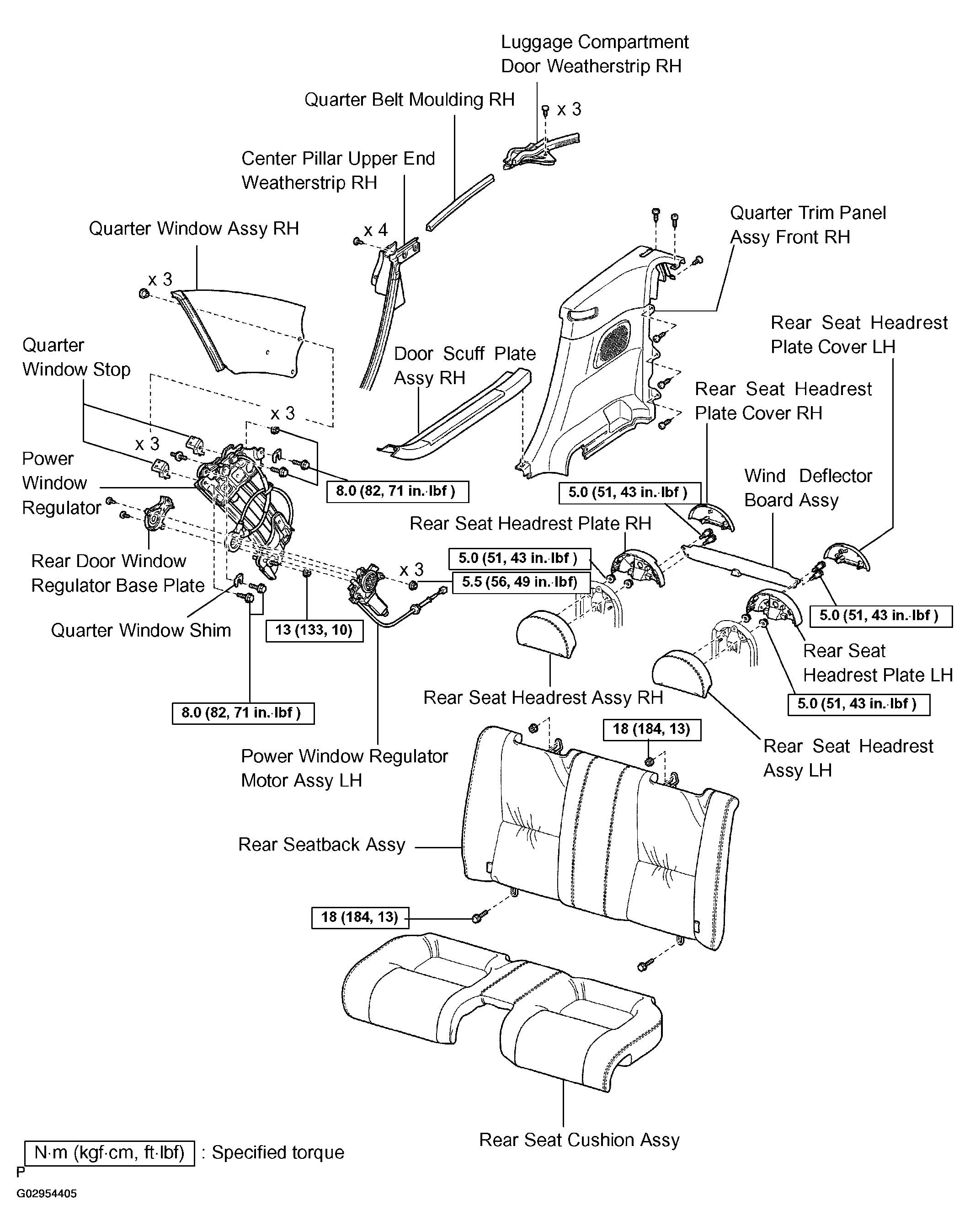

Fig 1: Exploded View Of Quarter Window Assy Components & Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
