Home >> Lexus >> 2005 >> SC 430 >> Repair and Diagnosis >> Electrical >> Charging Systems >> Starting & Charging >> Charging System >> Location

Charging System: Location

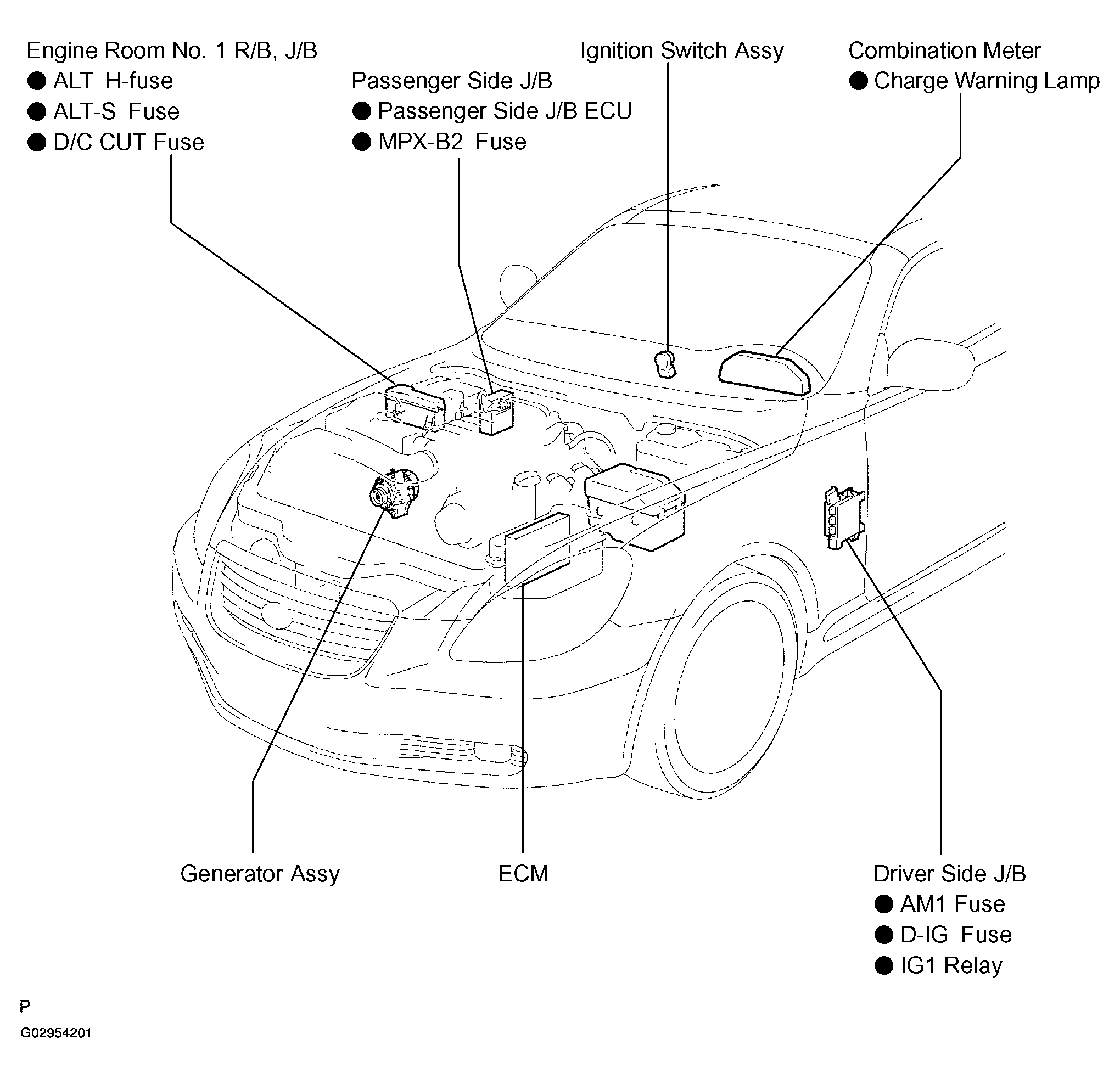

Fig 1: Identifying Location Of Charging System Components & Replacements

G02954201

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
