Generator ASSY: Components

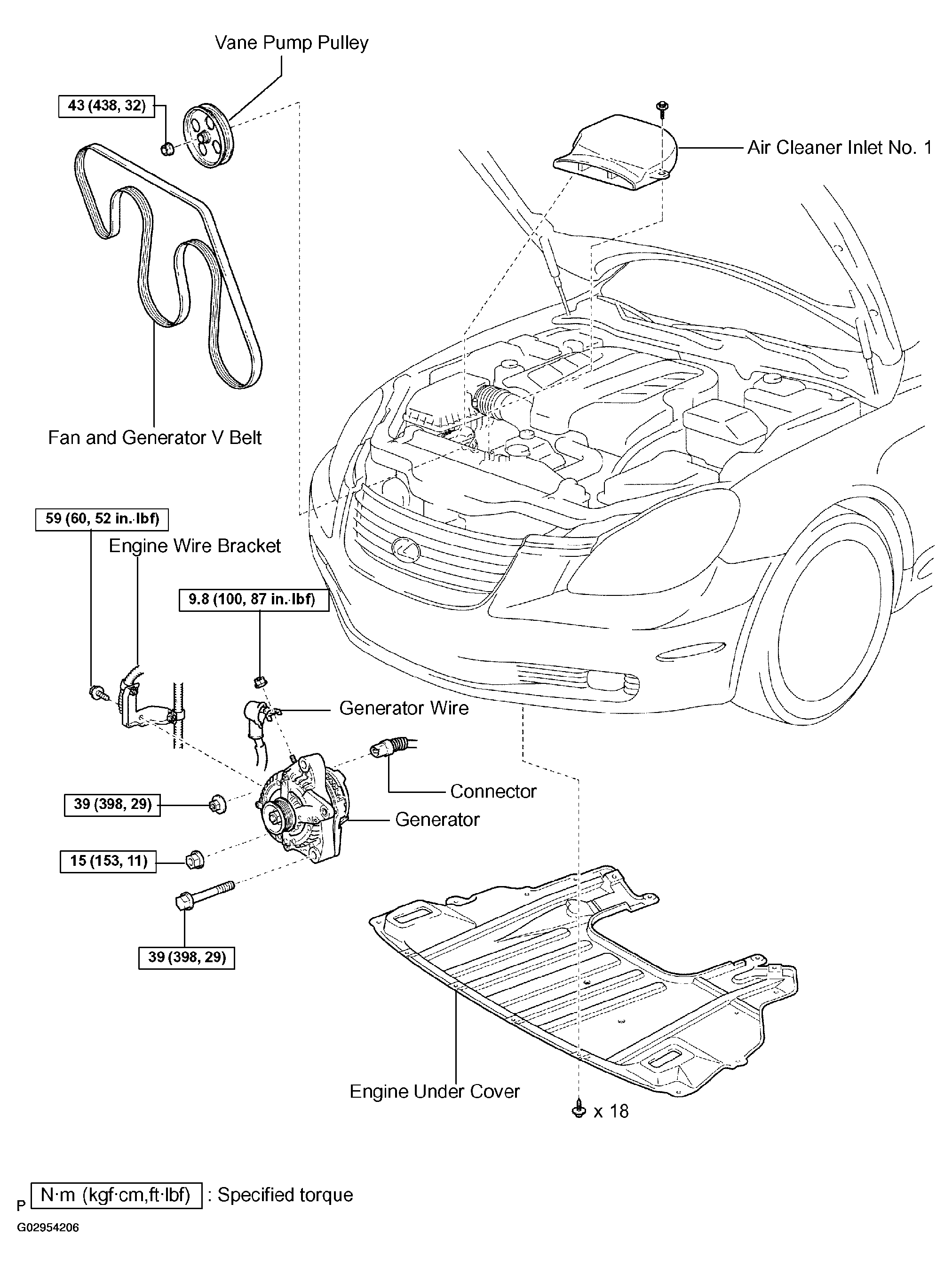

Fig 1: Identifying Generator Assy Components & Replacements (1 Of 2)
G02954206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

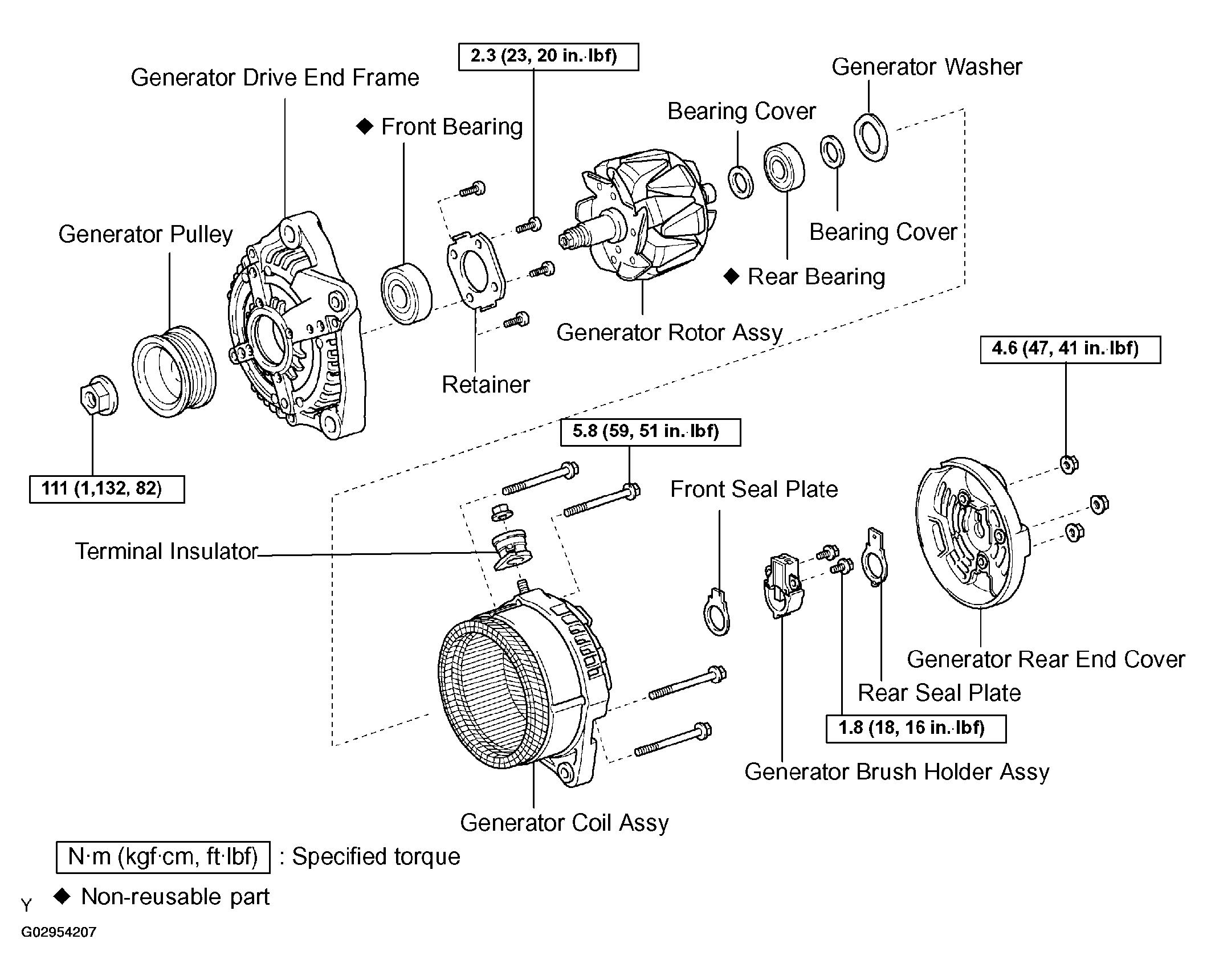

Fig 2: Identifying Generator Assy Components & Replacements (2 Of 2)
G02954207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
