System Diagram
System Diagram
The starting system rotates the starter motor according to the signals from the ignition switch.

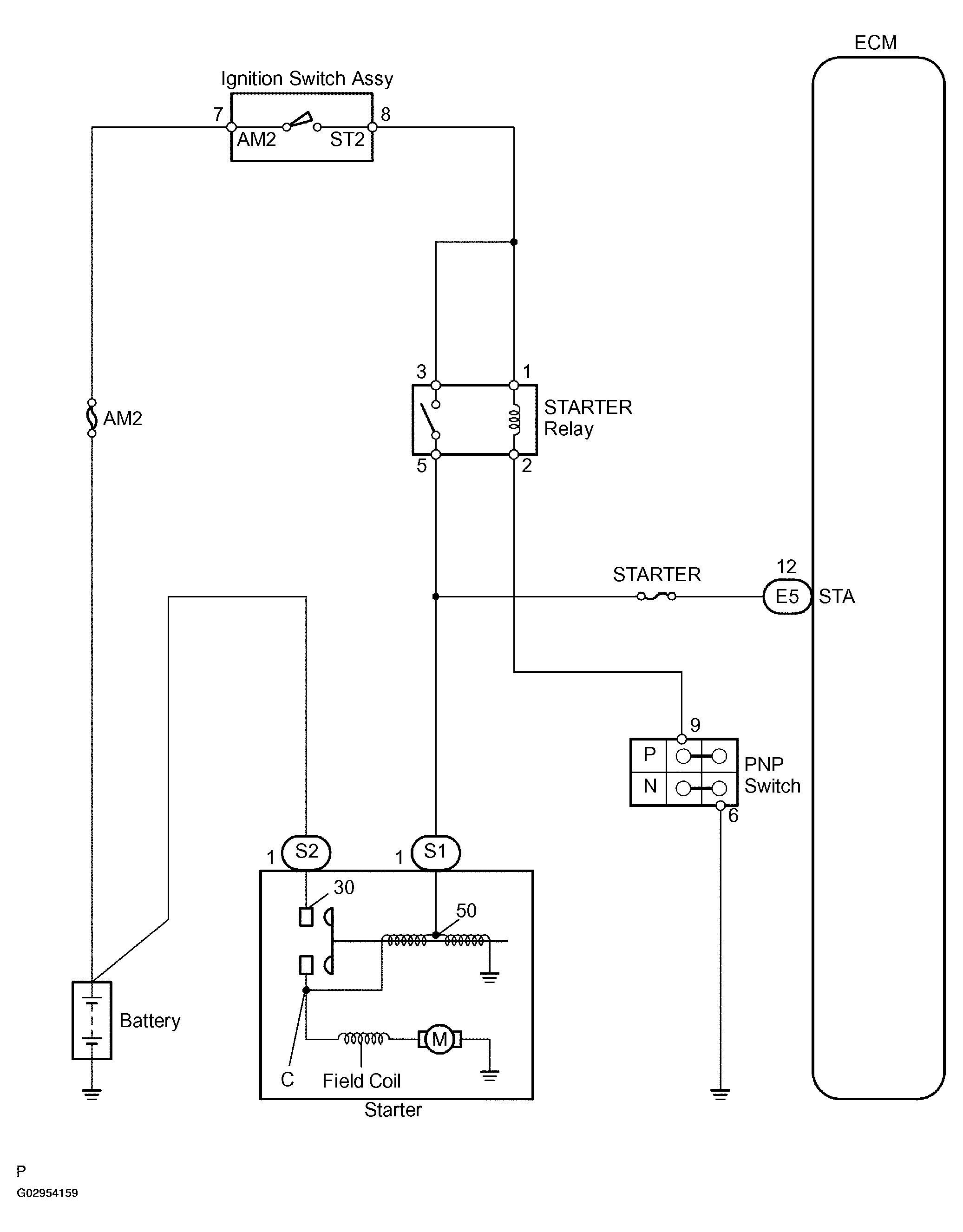

Fig 1: Starting System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
