Compass Does Not Function: Wiring Diagram

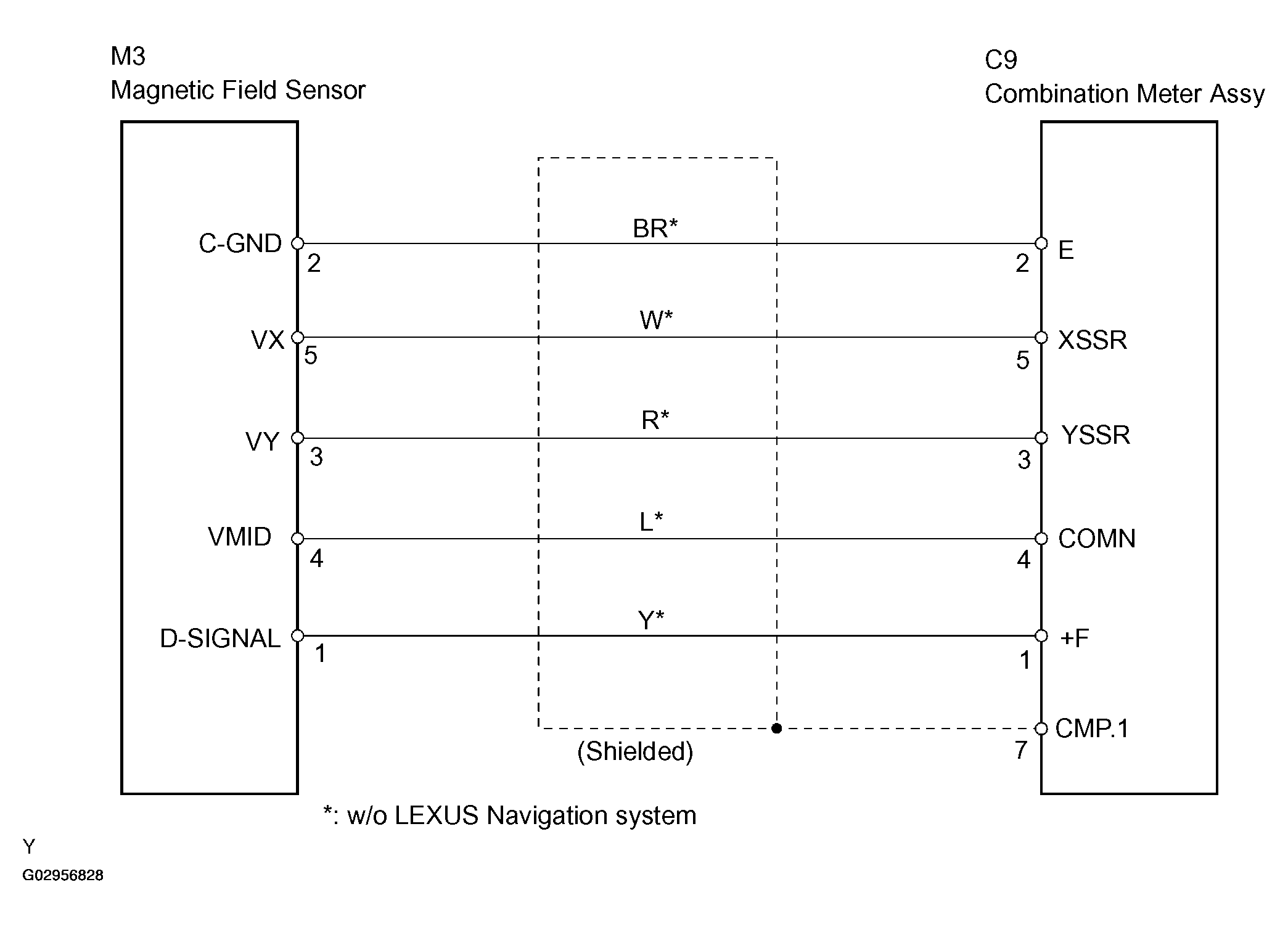

Fig 1: Compass - Wiring Diagram

G02956828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
