Instrument Panel/Meter: Components

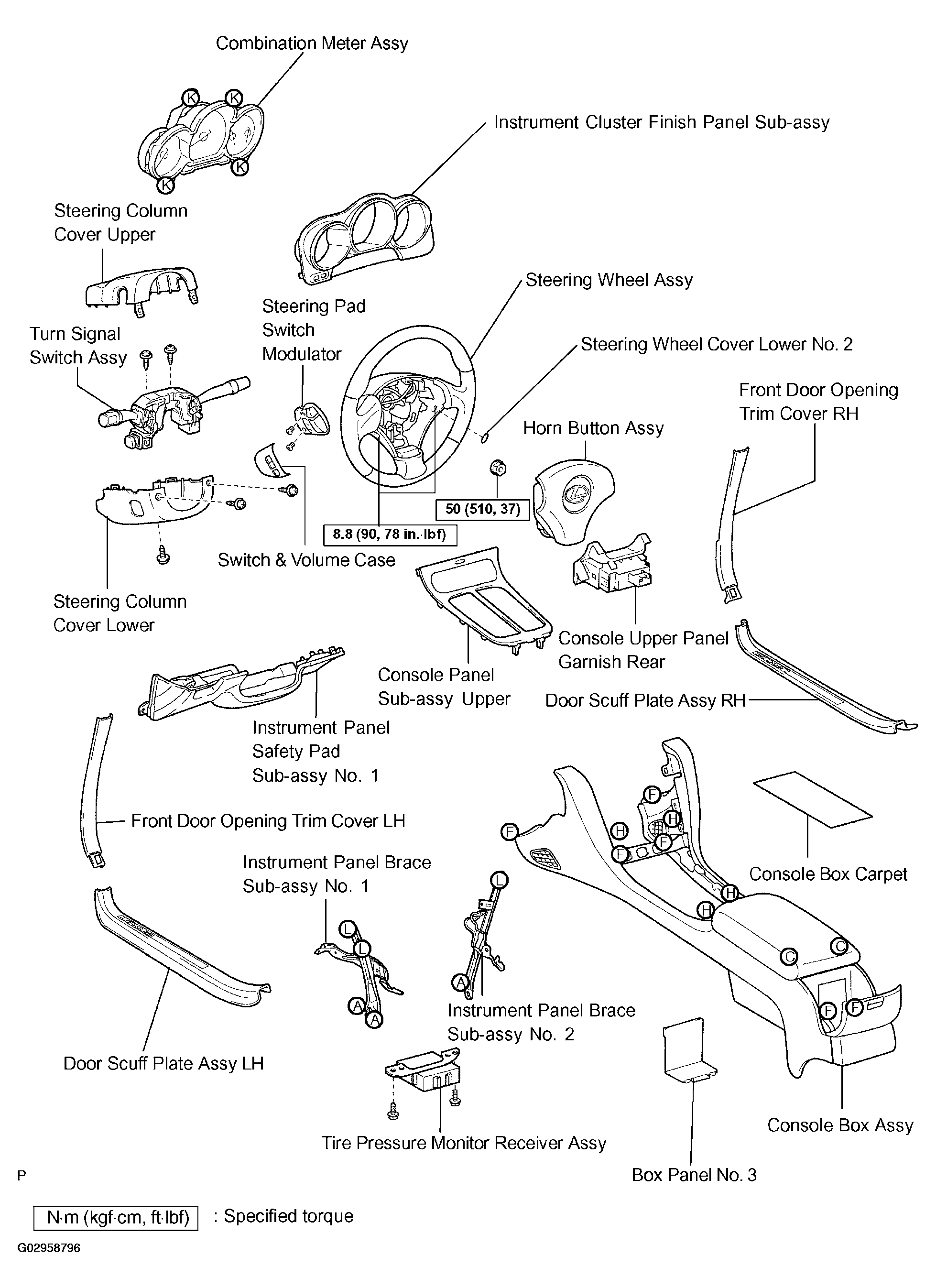

Fig 1: Exploded View Of Instrument Panel/Meter Components & Replacements (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

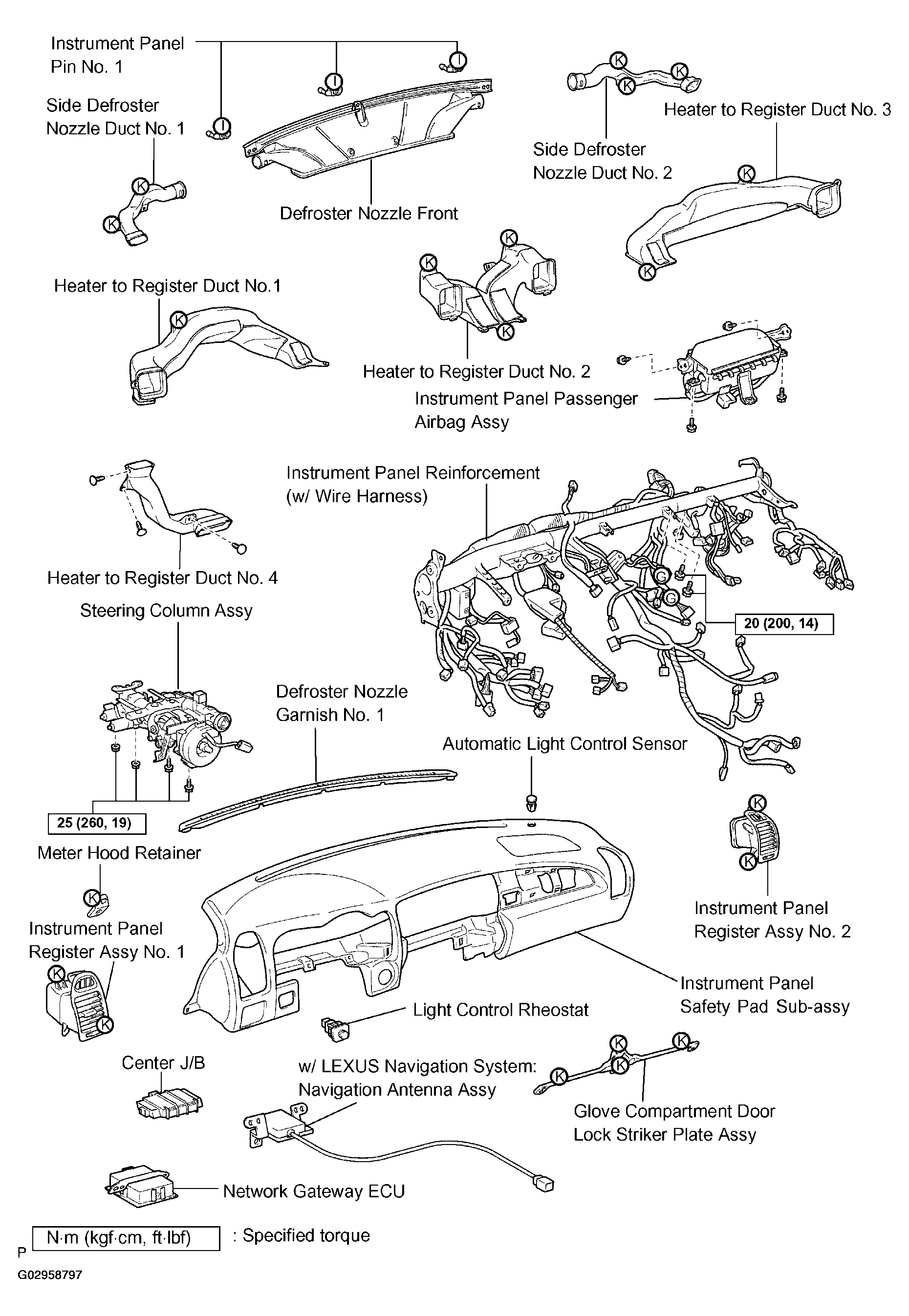

Fig 2: Exploded View Of Instrument Panel/Meter Components & Replacements (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

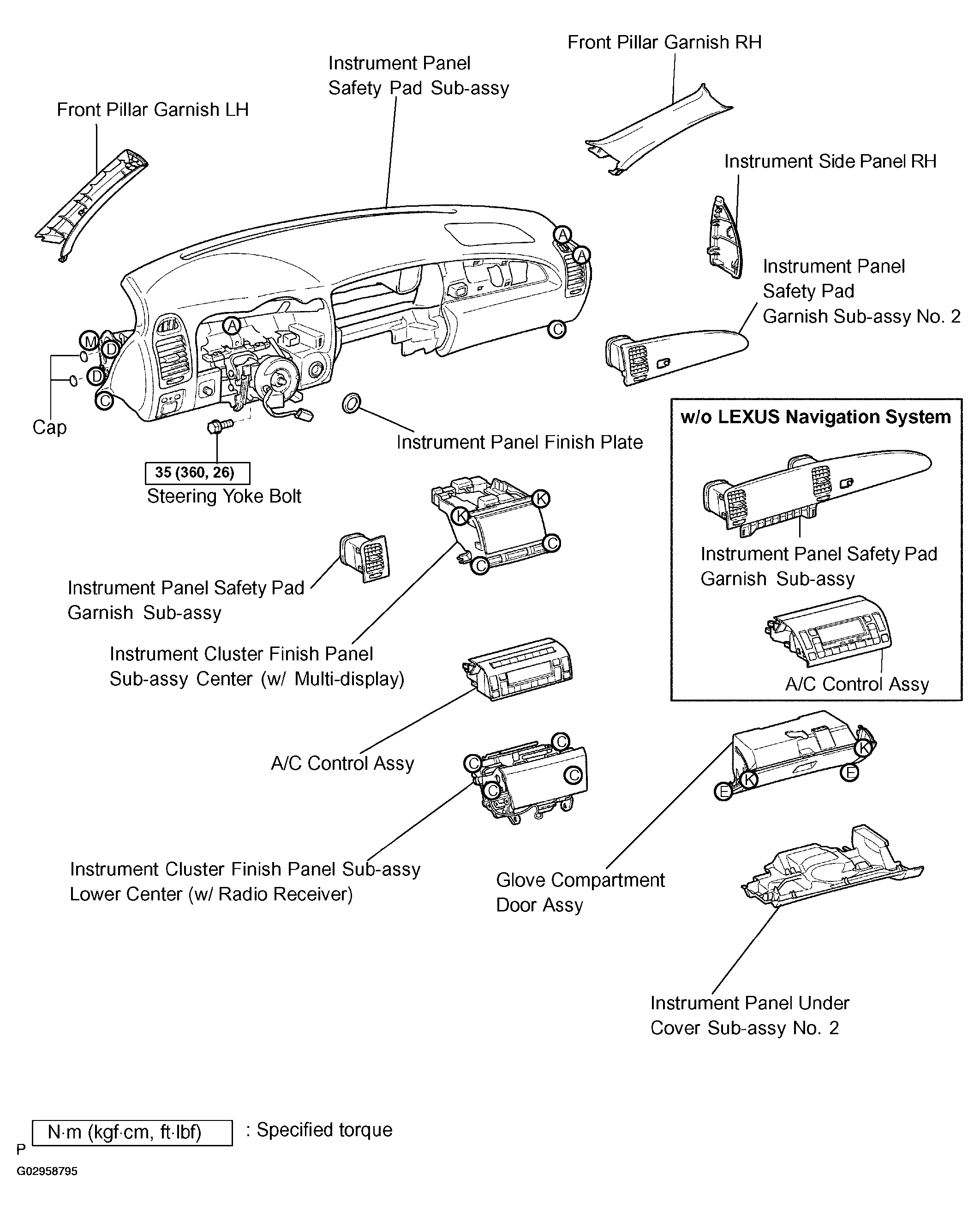

Fig 3: Exploded View Of Instrument Panel/Meter Components & Replacements (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
