Oil Pump ASSY: Components

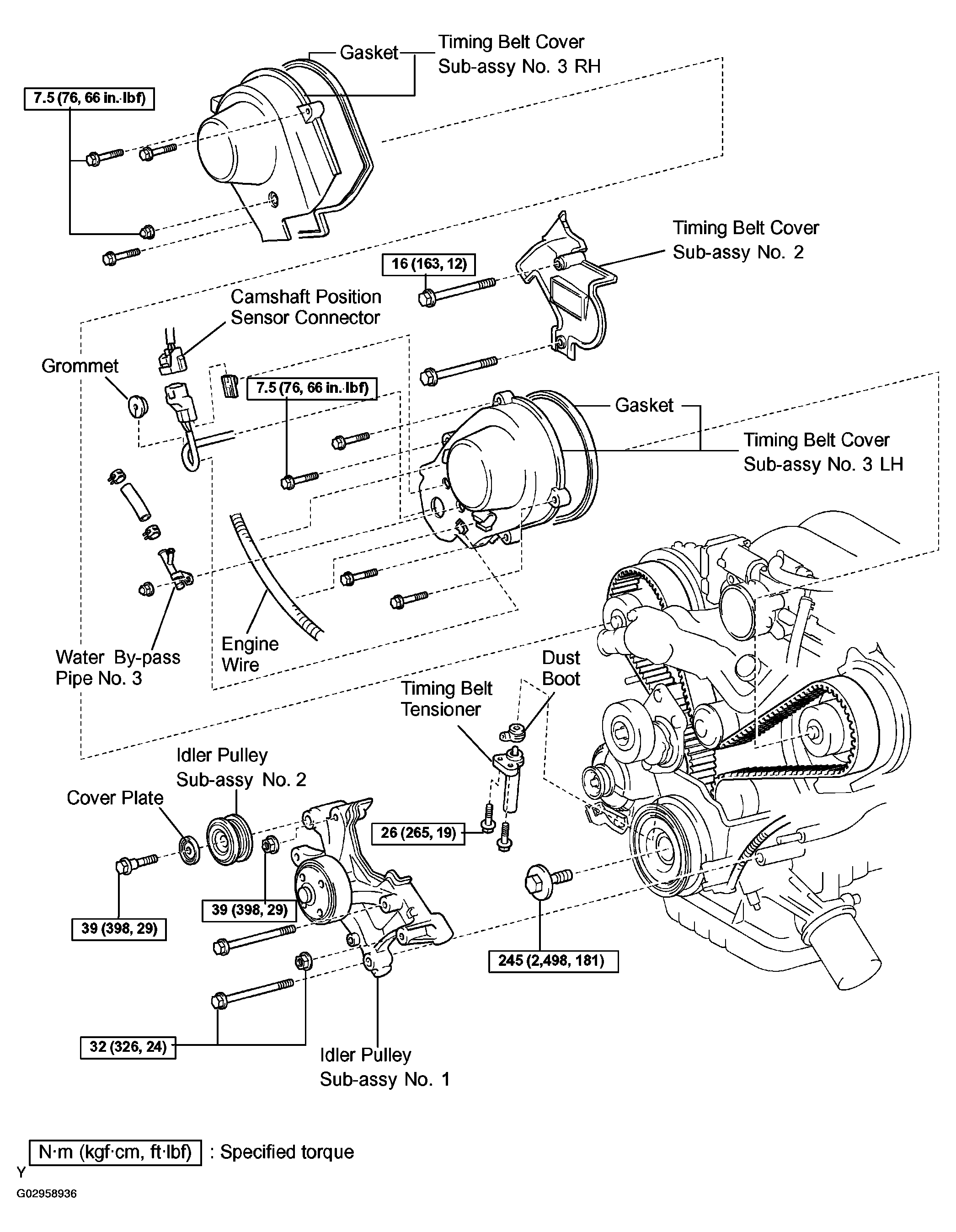

Fig 1: Identifying Oil Pump Assy Components & Replacements (1 Of 4)
G02958936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

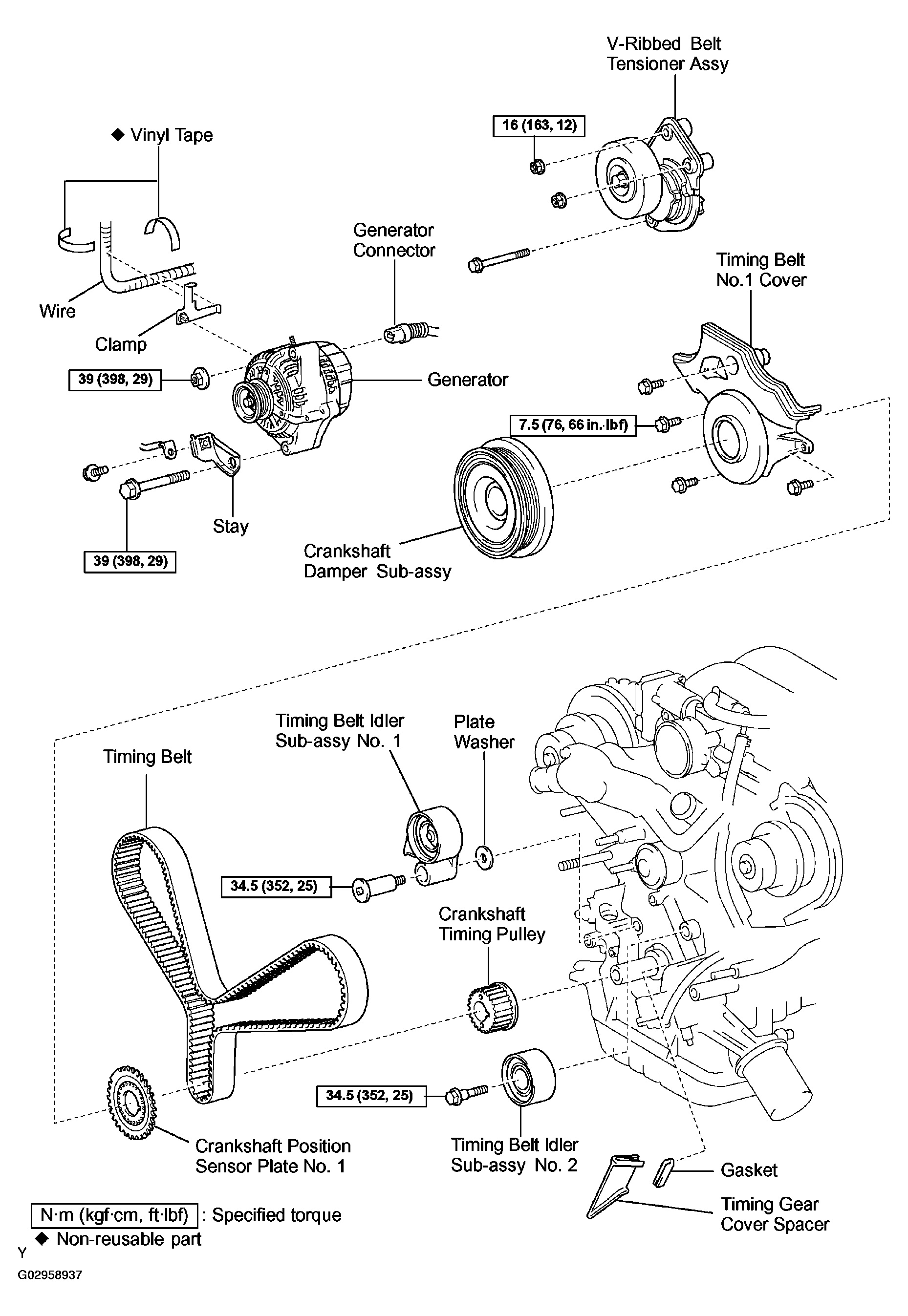

Fig 2: Identifying Oil Pump Assy Components & Replacements (2 Of 4)
G02958937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

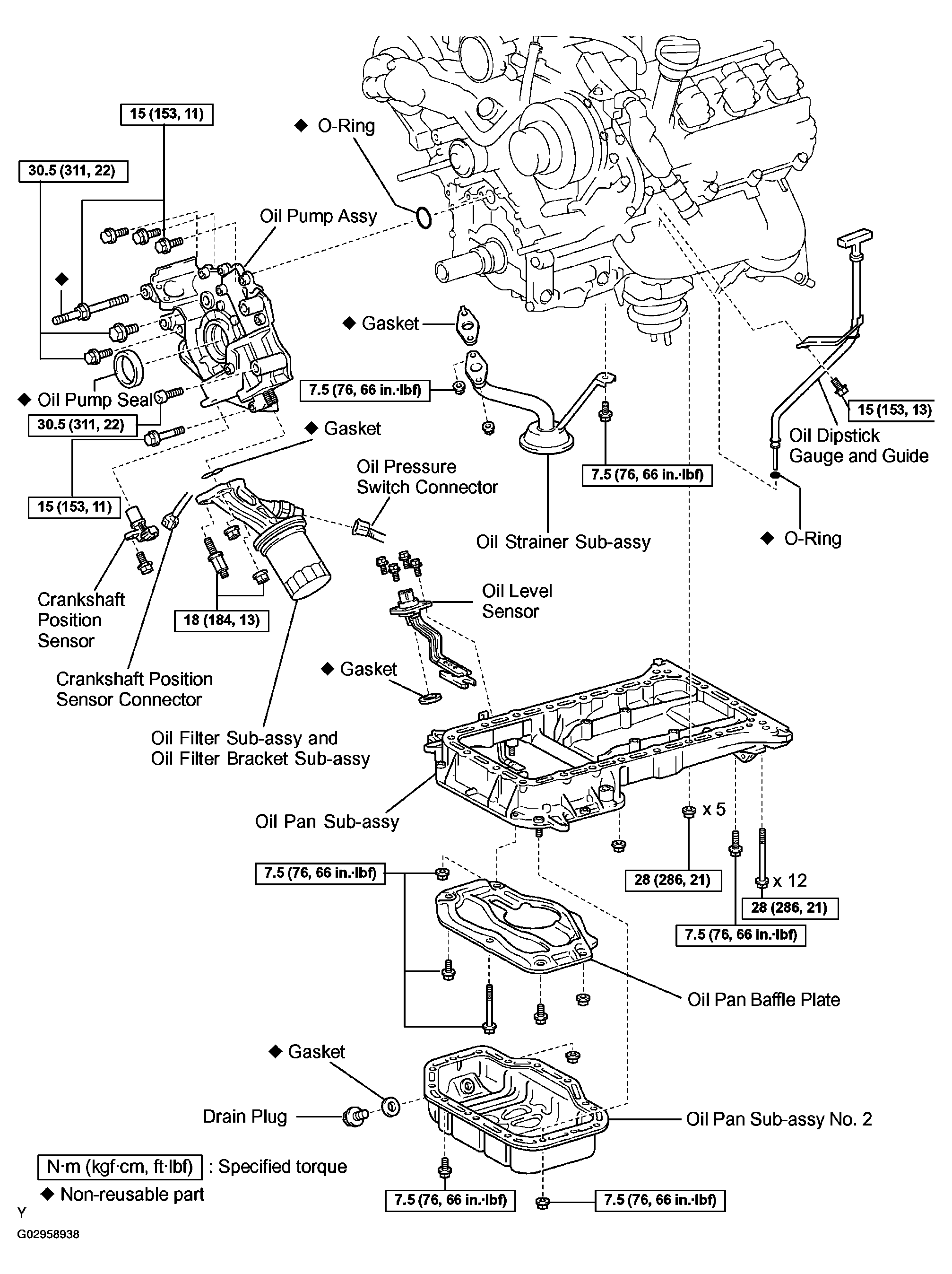

Fig 3: Identifying Oil Pump Assy Components & Replacements (3 Of 4)
G02958938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

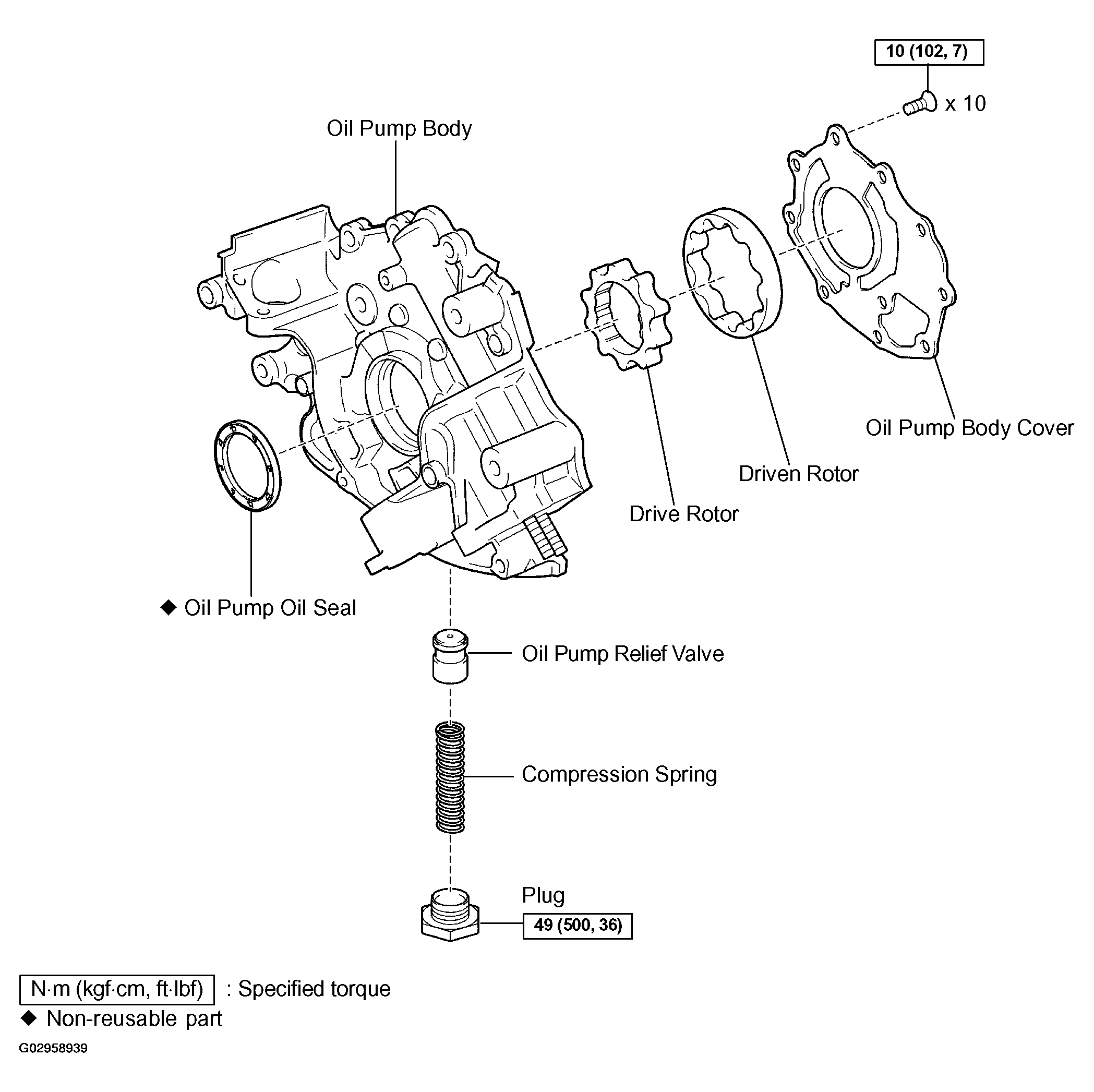

Fig 4: Identifying Oil Pump Assy Components & Replacements (4 Of 4)
G02958939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
