Home >> Lexus >> 2005 >> SC 430 >> Repair and Diagnosis >> Engine Performance >> System >> SFI System - Diagnostics >> Location

SFI System - Diagnostics: Location

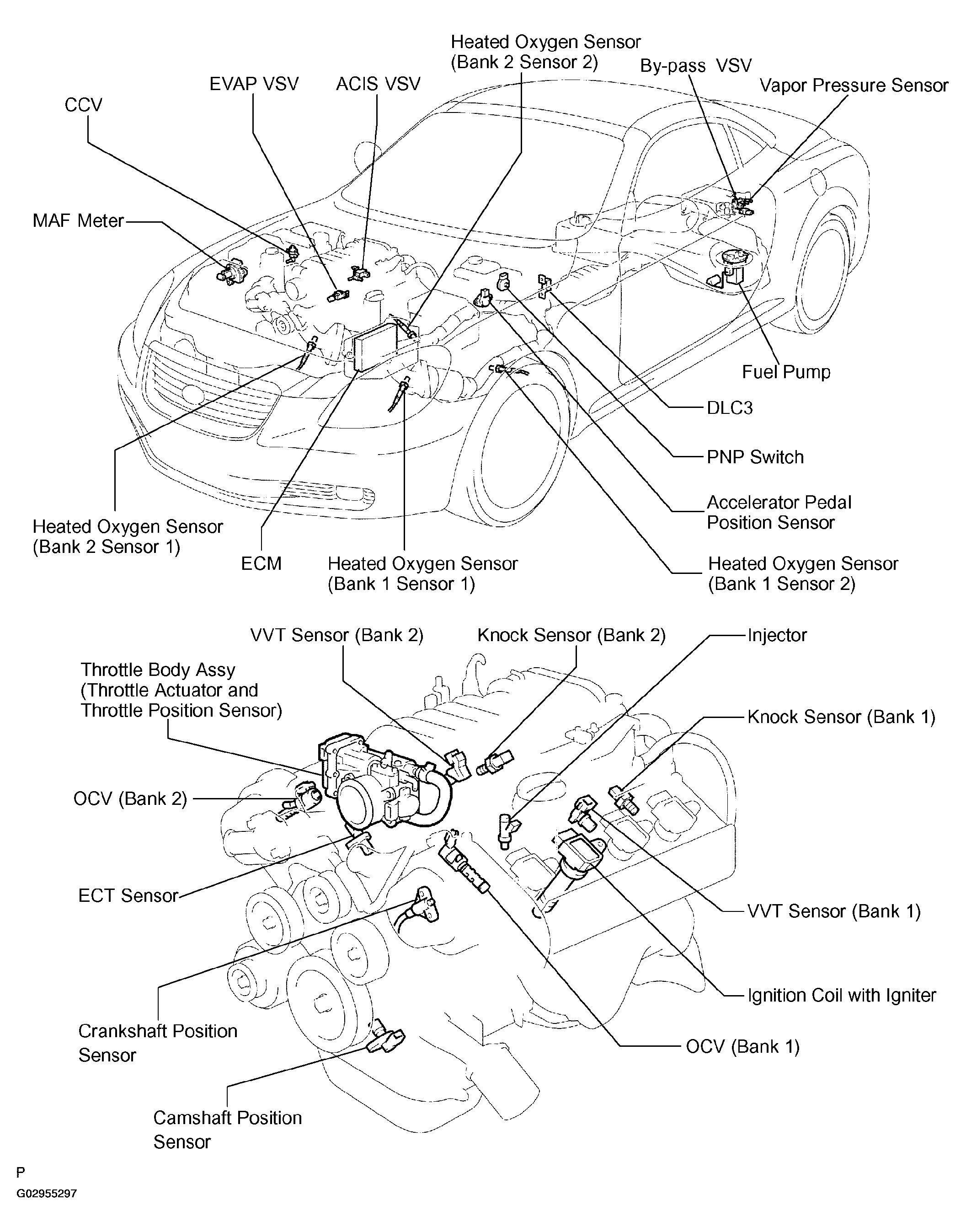

Fig 1: Identifying Location Of SFI System Components
G02955297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
