OEM System Circuits: Charging: Notes

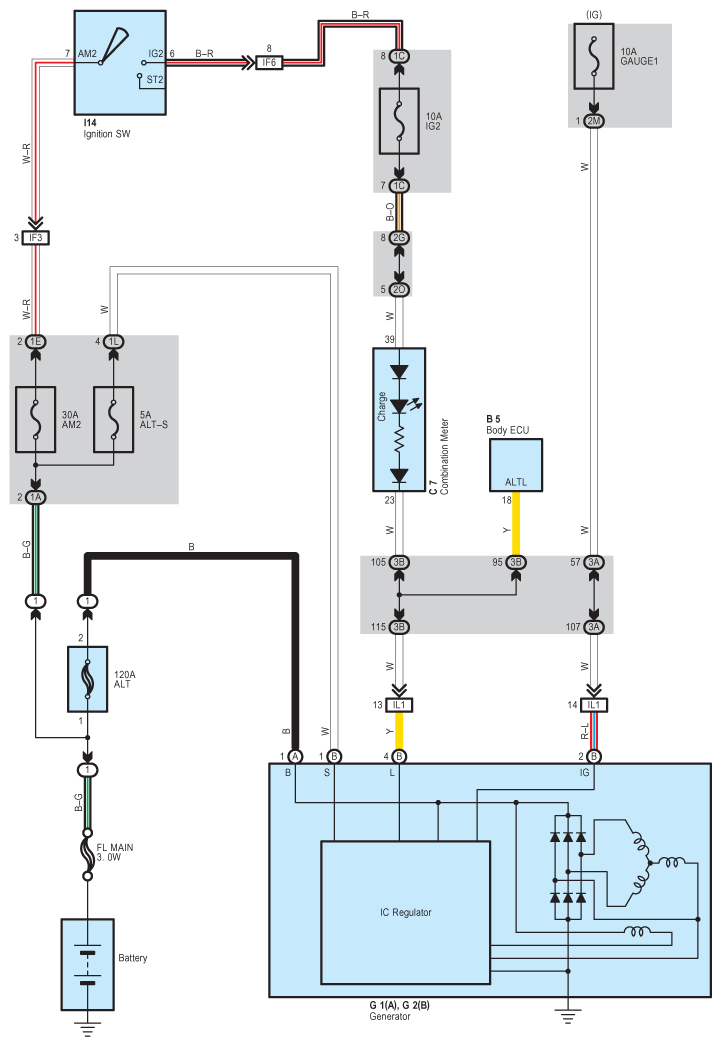

Fig 1: Charging - Wiring Diagram
G08929989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
