ECT and A/T Indicator: Notes

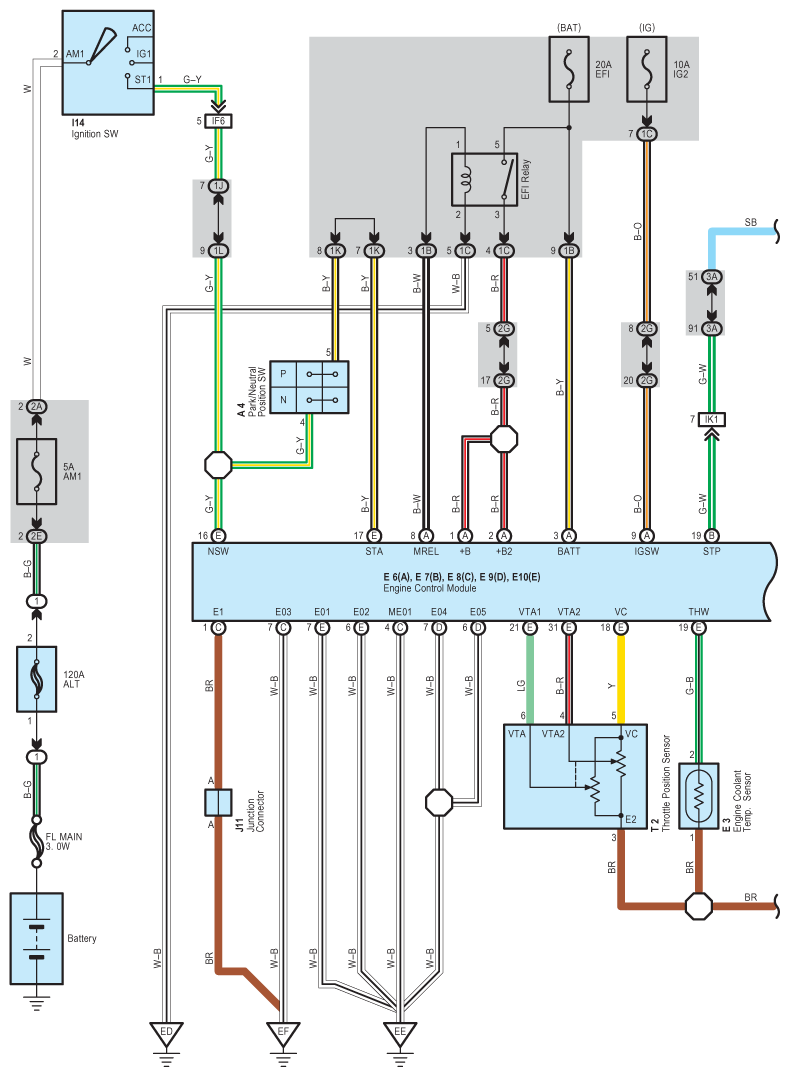

Fig 1: ECT And A/T Indicator - Wiring Diagram (1 Of 4)
G08929999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

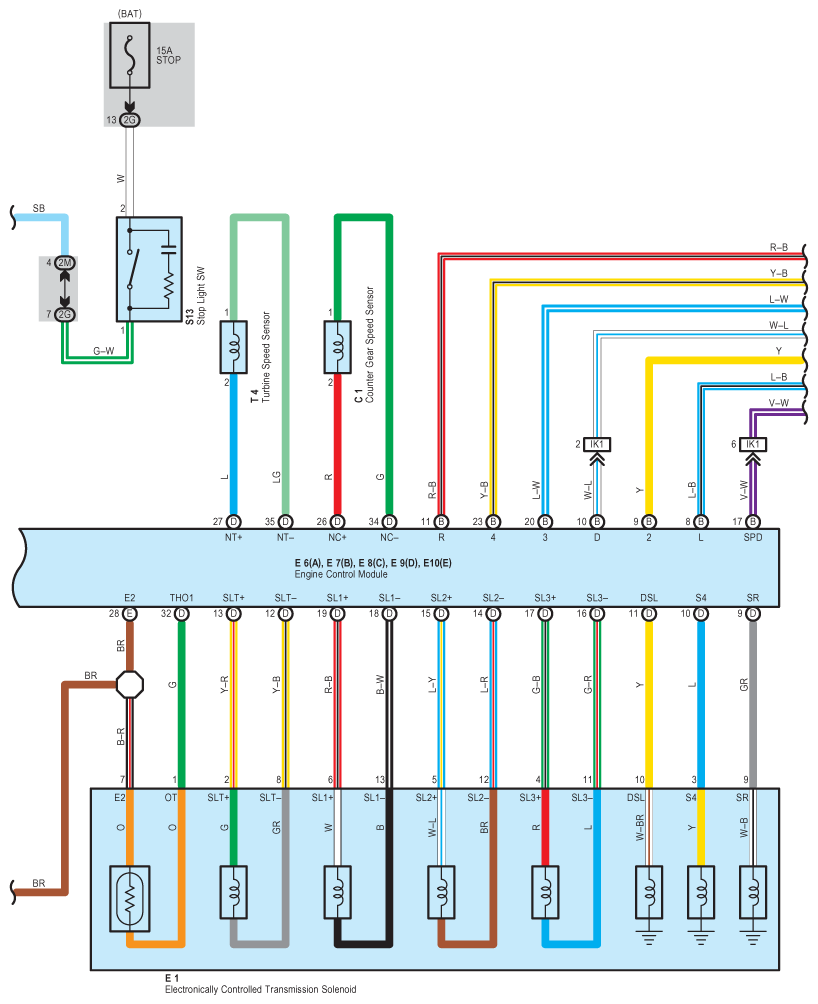

Fig 2: ECT And A/T Indicator - Wiring Diagram (2 Of 4)
G08930000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

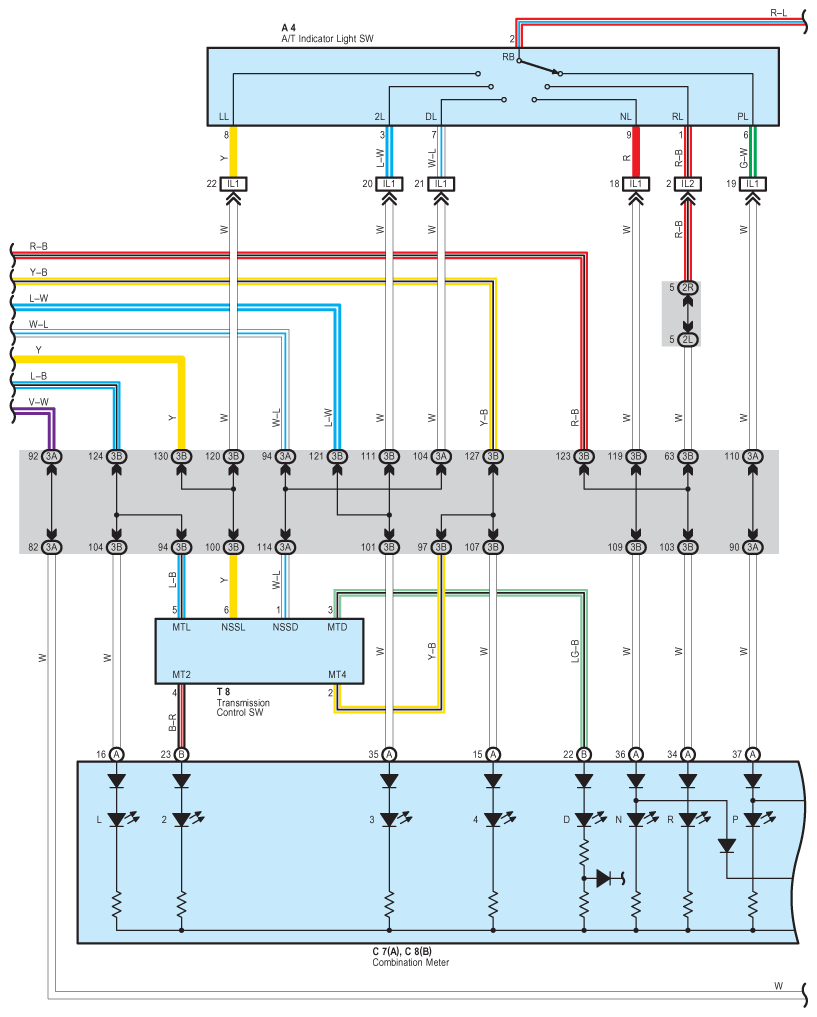

Fig 3: ECT And A/T Indicator - Wiring Diagram (3 Of 4)
G08930001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

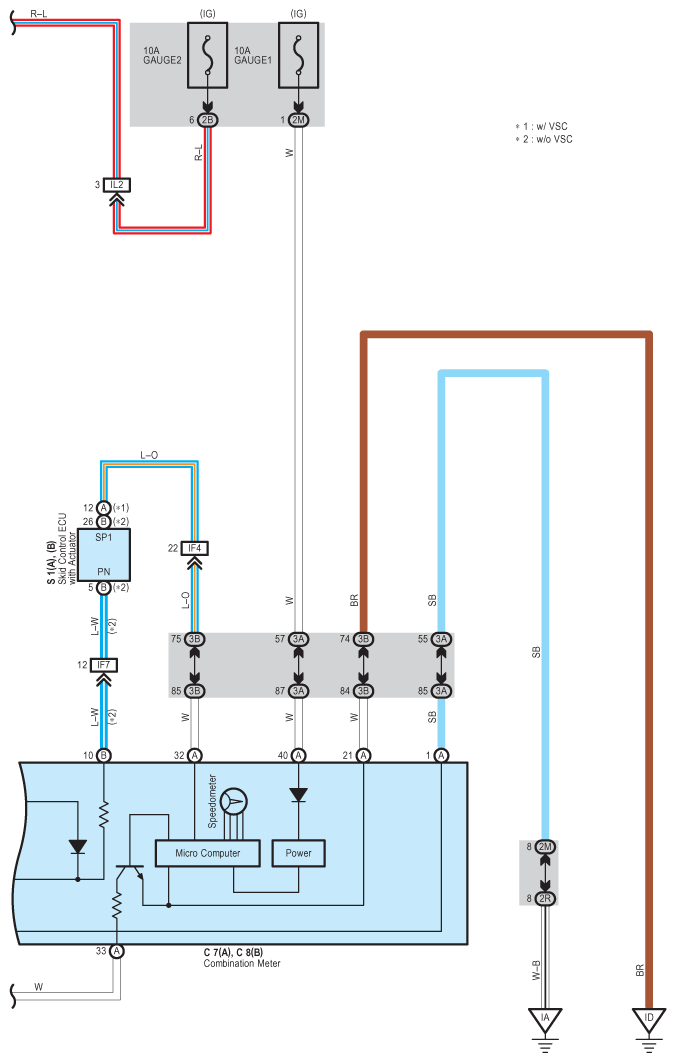

Fig 4: ECT And A/T Indicator - Wiring Diagram (4 Of 4)
G08930002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
