OEM System Circuits: Illumination: Notes

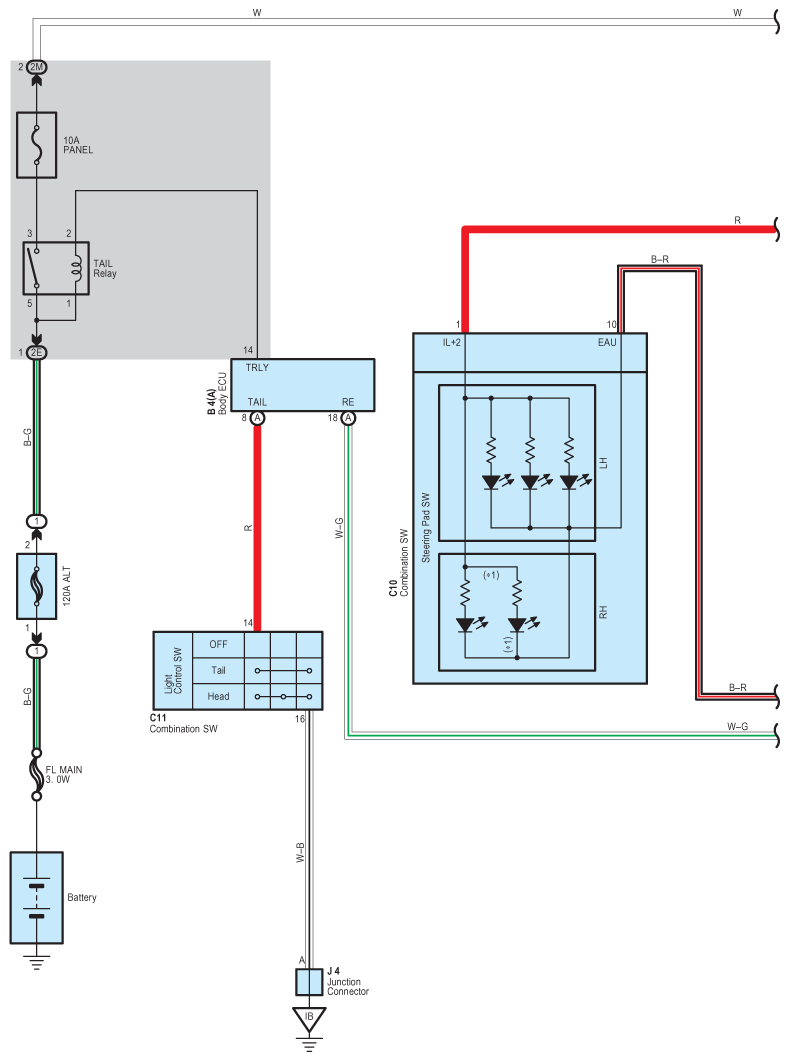

Fig 1: Illumination - Wiring Diagram (1 Of 4)
G08930048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

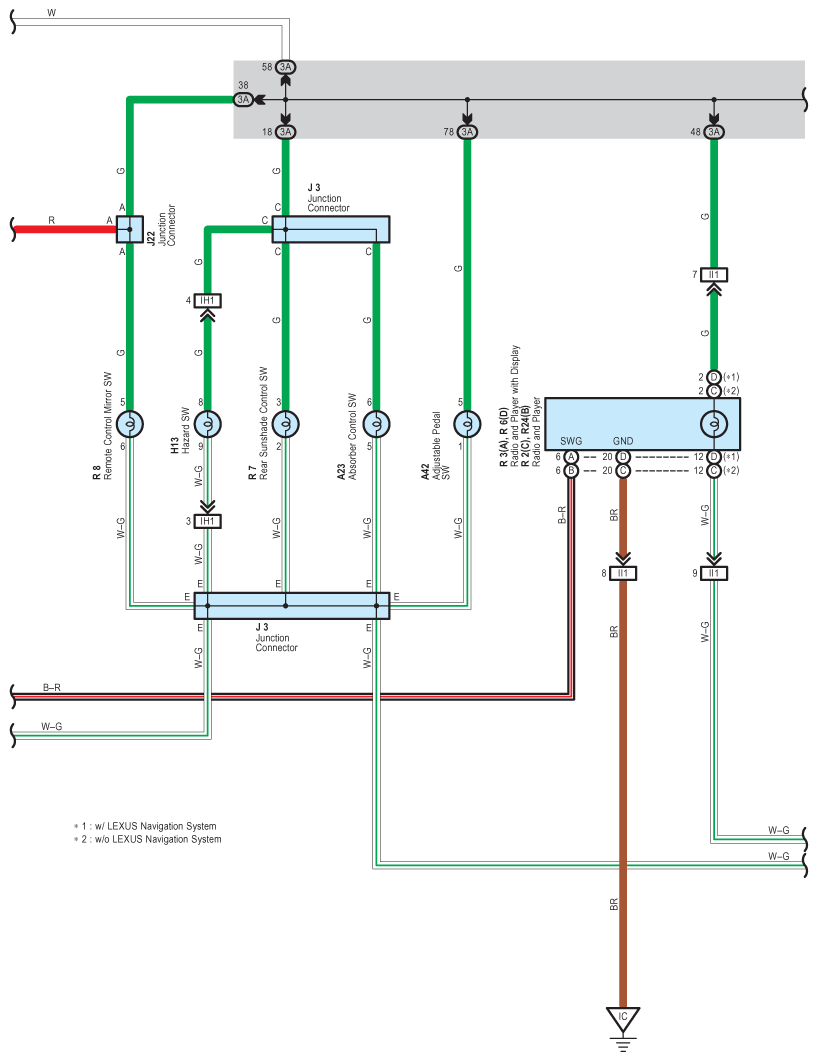

Fig 2: Illumination - Wiring Diagram (2 Of 4)
G08930049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

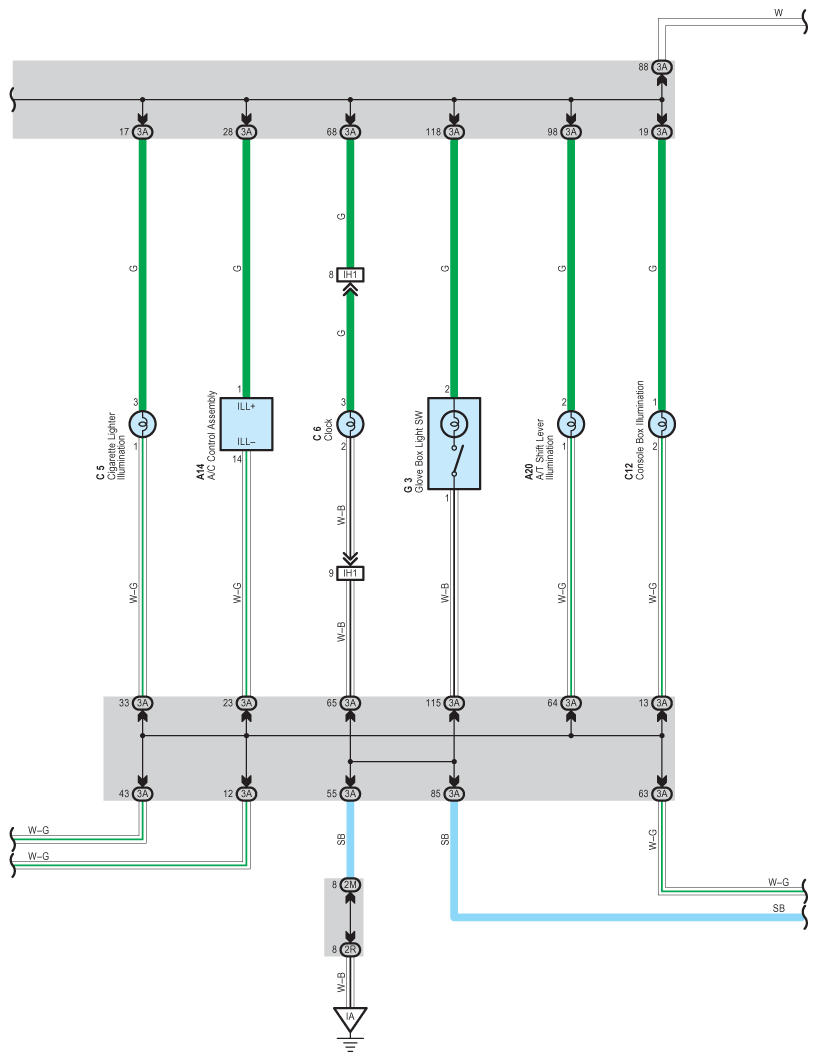

Fig 3: Illumination - Wiring Diagram (3 Of 4)
G08930050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

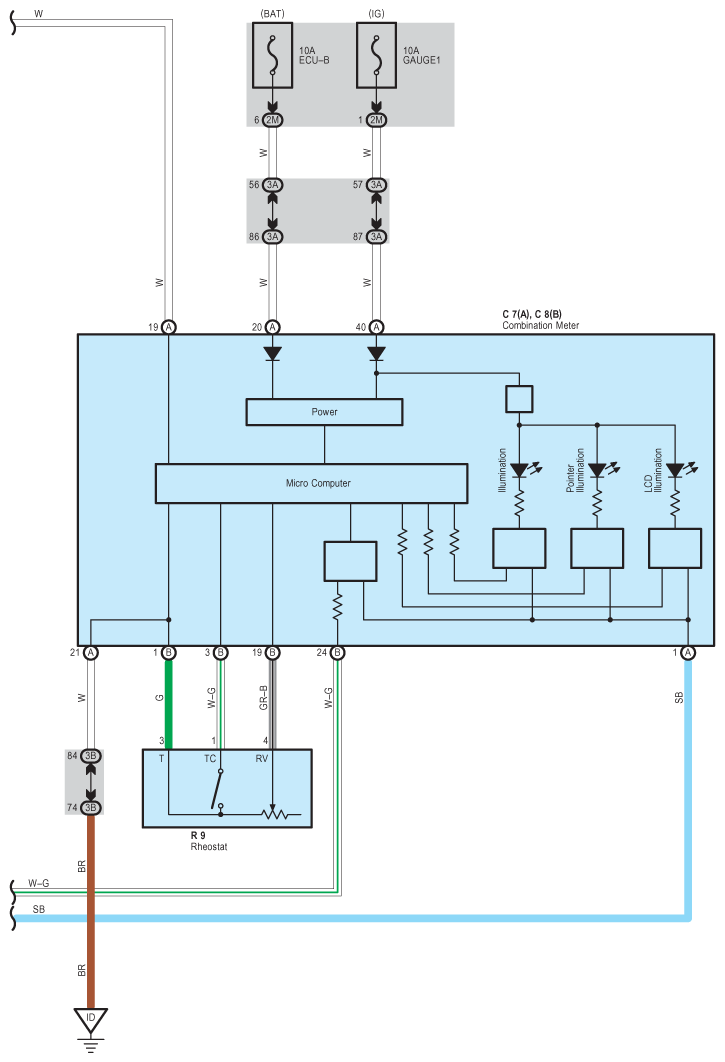

Fig 4: Illumination - Wiring Diagram (4 Of 4)
G08930051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
