Light Auto Turn Off System
>>
Notes
Light Auto Turn Off System: Notes

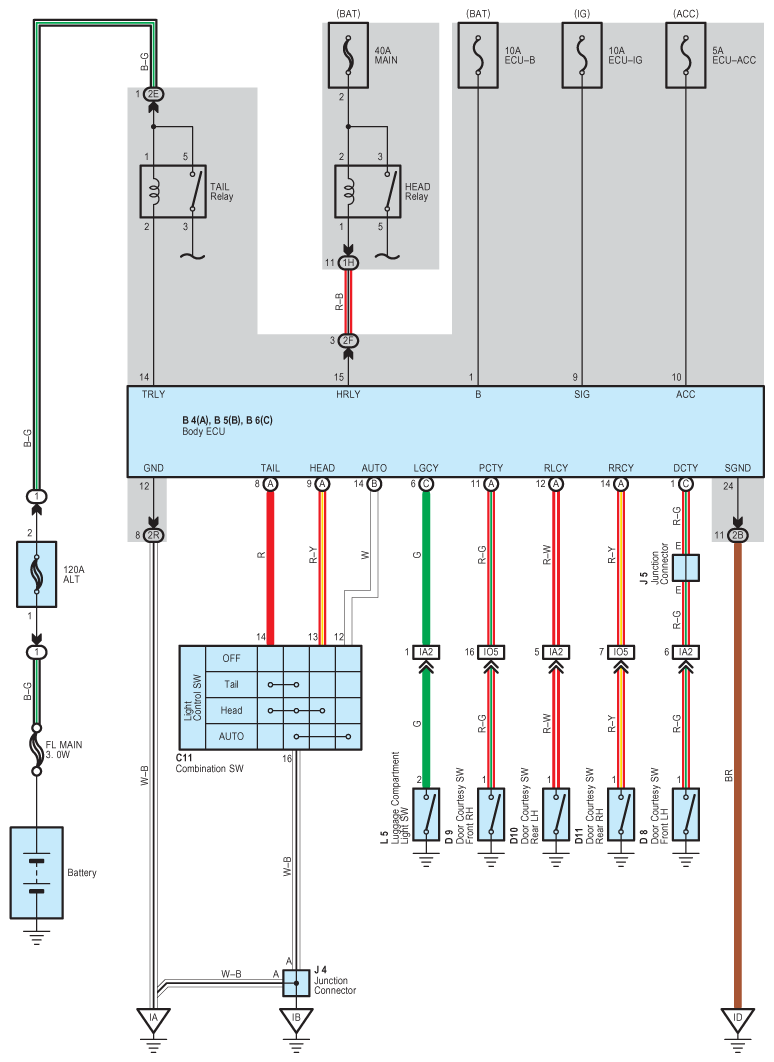

Fig 1: Light Auto Turn Off System - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
