Multiplex Communication System - BEAN Bus: Notes

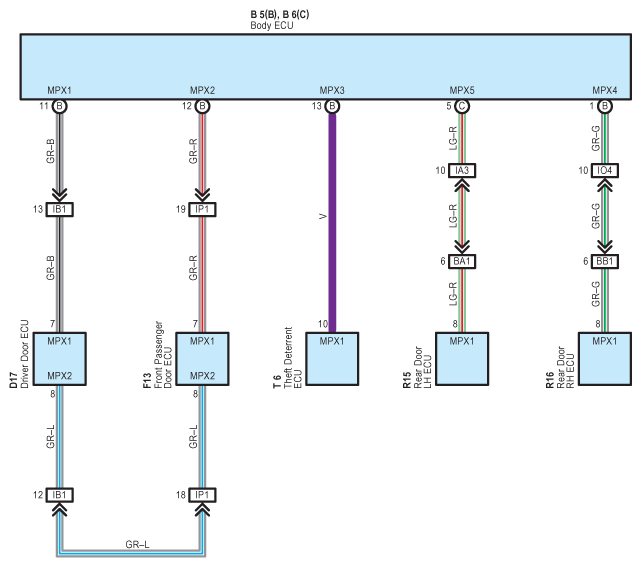

Fig 1: Multiplex Communication System - BEAN Bus - Wiring Diagram

G08930005

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
