Multiplex Communication System - CAN: Notes

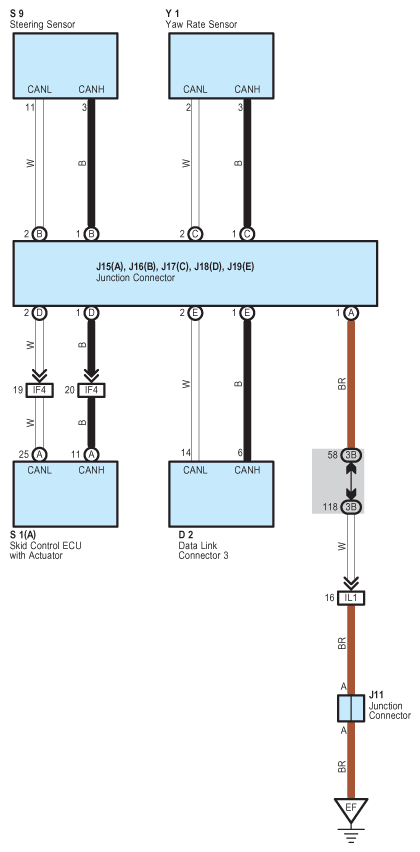

Fig 1: Multiplex Communication System - CAN - Wiring Diagram

G08930018

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
